The "Invisible Bodyguards" on Stage: A Deep Dive into SPECTRUM's 3kg Smart Anti-Pinch & Aviation Plug Ecosystem
[Introduction]
In breathtaking modern stage designs and interactive tech showrooms, retractable kinetic screens bring unprecedented visual tension through 3D physical matrices. However, when hundreds of metal modules weighing over a dozen pounds each shuttle rapidly through the air, how do you guarantee the absolute safety of stage performers and live audiences? And how do you ensure the foolproof connection of thousands of power and signal cables within extremely tight load-in and load-out timeframes?
As a comprehensive service provider of dynamic display systems and spatial digital equipment, SPECTRUM not only pursues visual perfection but also embeds "safety and efficiency" into its product DNA. Today, we will deeply deconstruct the "invisible bodyguards" behind SPECTRUM's kinetic screens: the 3kg intelligent anti-pinch algorithm and the military-grade aviation plug ecosystem.
I. Defining the Industry Benchmark: Analyzing the "Kinetic Screen Anti-Pinch Safety Standard"
In traditional stage mechanics, collision prevention often relies on rigid physical limiters. Once a collision occurs, not only is the equipment easily damaged, but it can also cause severe pinching injuries to humans. SPECTRUM believes that a true kinetic screen anti-pinch safety standard should not be a post-incident remedy, but rather a millisecond-level "intelligent perception."

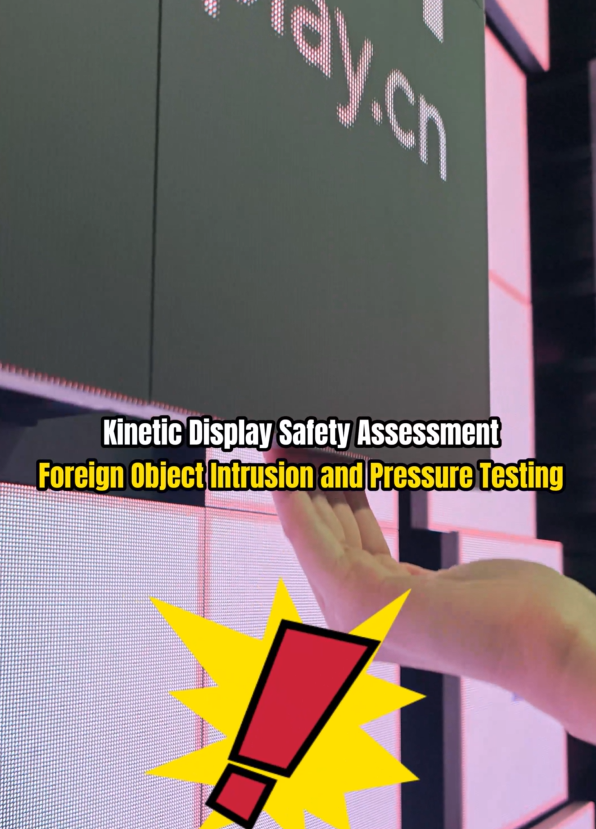

Illustration: The Underlying Logic of the 3kg Smart Anti-Pinch Algorithm
SPECTRUM's indoor kinetic screens (such as the SPKI-128 and SPKI-160) come fully equipped with industry-leading anti-pinch protection technology. This is not a simple external sensor, but a smart algorithm deeply integrated within the servo drive:
FOC Closed-Loop Real-Time Monitoring: Every servo motor runs an FOC (Field Oriented Control) vector algorithm. The system monitors the current and torque variations of the running motor in real-time at an extremely high frequency.
3kg Ultimate Sensitivity Threshold: During the movement of the retractable module (whether extending or retracting), if it encounters external physical resistance and the opposing force exceeds 3kg, the algorithm is instantly triggered.
Millisecond Power-Off & Soft Reset: Upon triggering the protection, the motor will instantly "lose power and disable" in <0.1 seconds. The screen module loses its pushing force and hovers, completely releasing the crushing stress. After remaining stationary for a few seconds to confirm safety, the module will slowly and gently reset at a very low speed.
This underlying power-off protection algorithm, acting much like a "neural reflex," provides a true industrial-grade safety net for science museums crowded with children and concert stages with complex performer blocking.
II. The Foundation of Efficiency and Stability: Why Must You Choose an "Aviation Plug Kinetic Screen"?
In the stage rental market, setup and teardown times are ruthlessly strict. The complex wiring harnesses of traditional kinetic screens not only turn the setup site into a "cable nightmare" but also bury massive safety hazards like signal short circuits and poor contacts.
To completely resolve this pain point, SPECTRUM has universally popularized the aviation plug kinetic screen ecosystem design:
Military-Grade Quick-Lock Structure: Abandoning traditional screw-type terminal blocks, the entire series comes standard with high-protection-rating aviation plugs. Its unique "push-turn-self-lock" mechanical structure ensures that the plug remains as steady as a mountain, never loosening, even under the intense vibration of heavy stage bass.
Physical Foolproof & Blind Mating Technology: The interior of the plug features precise grooving and positioning pin designs, physically isolating high-voltage power from low-voltage signals. Setup crews can achieve "one-handed blind mating" behind dimly lit stages without any professional electrical knowledge, drastically reducing the risk of human wiring errors.
Efficiency Multiplier: Relying on the aviation plug ecosystem, a power and signal network of up to thousands of nodes can be connected simultaneously in a very short time, boosting the efficiency of lighting up and debugging the entire screen by over 200%.
III. Ultimate Synergy: Reshaping the "Rental LED Fast-Installation Structure"
While "smart anti-pinch" guarantees the safety of external personnel, and the "aviation plug ecosystem" guarantees the stability of the internal system, SPECTRUM perfectly fuses these two with a high-strength die-cast aluminum lightweight cabinet to create a new generation of rental LED fast-installation structure, represented by the SPKI-250.
A single cabinet is extremely lightweight (e.g., the SPKI-250 weighs only 13kg). Combined with quick-splicing locks and a complete rear maintenance channel, rental companies no longer have to deal with bulky iron cabinets and tangled cables. This fast-installation structure makes building a 3D kinetic matrix as simple, fast, and absolutely safe as snapping together building blocks.
💡 FAQ
Q1: What is the currently recognized kinetic screen anti-pinch safety standard in the industry?
A: A high-standard kinetic screen anti-pinch safety protocol should be based on the underlying torque feedback of the motor, not just physical obstruction. Taking SPECTRUM's standard as an example, indoor models must possess 3kg intelligent resistance sensing capabilities. Once resistance exceeds this threshold, the equipment must be capable of a millisecond-level instant power-off, hovering, and a soft reset after stopping, thereby fundamentally eliminating the risk of pinching personnel.
Q2: In large-scale tours, why is an aviation plug kinetic screen heavily recommended or mandated?
A: Large-scale tours face high-frequency assembly/disassembly and complex electromagnetic environments. An aviation plug kinetic screen features a military-grade self-locking structure and physical foolproof design. Not only does it enable "zero-error" ultra-fast blind mating—massively compressing setup time—but it also effectively resists equipment resonance caused by stage subwoofers, eliminating power outages or signal blackouts caused by loose cables.
Q3: How does SPECTRUM's rental LED fast-installation structure help integrators mitigate project risks?
A: SPECTRUM's fast-installation structure is a synthesis of efficiency and safety. We reduce the load-bearing risk on trusses through lightweight die-cast aluminum cabinets; we avoid hazardous high-altitude work via independent rear maintenance channels; and we integrate smart anti-pinch and aviation plug communication ecosystems across the board. This solution helps general contractors safely deliver highly impactful kinetic matrix projects with top quality within extreme construction deadlines.
[Conclusion]
Behind stunning visuals are countless rigorous uncompromising tests of safety and detail. SPECTRUM firmly believes that the most cutting-edge digital art must be built upon the most solid foundation of safety.
