Commercial

Hummingbird Series

Features

High Precision, Ultra Slim and Lightweight

Adopting CNC finishing die-casting aluminum cabinet, high precision, ultra-thin and light, occupies less space, supports wall mounting, no need to reserve maintenance channel, the cabinet supports front maintenance, supports a variety of mounting methods, installation and maintenance is more convenient, seamless splicing, fast installation.

No Size Limited 16 : 9

Fully customized size with no limits! Even can go bigger than 216". It's time to going BIG!

Displaying Visual Feast with Clarity

With a standard 16:9 aspect ratio, it can seamlessly assemble into 2K, 4K, and 8K standard format displays. With its outstanding color performance and ultra-high image contrast, it achieves a revolutionary visual innovation

High Contrast, Energy Saving, Long Life Span & High Refresh Rate

With the continuous development and improvement of LED technology, indoor LED displays, especially fine-pitch products, are in line with market demand and energy saving with their seamless splicing, low brightness and high gray, high refresh rate, high contrast, ultra-high definition, low energy consumption, and long lifespan.

Specifications

Series

Hummingbird -- 600x337.5 Indoor Small Pitch LED Display

Pixel Configuration

3 in 1 SMD

Pixel Pitch (mm)

0.9375mm

1.25mm

1.5625mm

1.875mm

No. of Modules per Unit Case (WxH)

2x2

Unit Case Resolution (WxH)

640x360

480x270

384x216

320x180

Unit Case Dimensions (WxHxD, mm)

600x337.5x75

Unit Case Surface Area (m²)

0.2025

Weight per Square Meter (kg/m²)

30.81

Physical Pixel Density (pixels/m²)

1136356

640000

409600

284444

Flatness of Unit Case (mm)

±0.2

Unit Case Material

Die Casting Aluminum

Service Access

Front

Max. Brightness

600

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140

Visual Viewing Angle (Vertical)

140

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000

Processing Depth (bit)

16

Power Consumption (W/m², Max.)

680

Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3840

LED Lifetime (Half Brightness) 2)

50000 Hour

Operating Temperature (°C)

 -20 ℃ to 50 ℃

Operating Humidity

10-80% RH

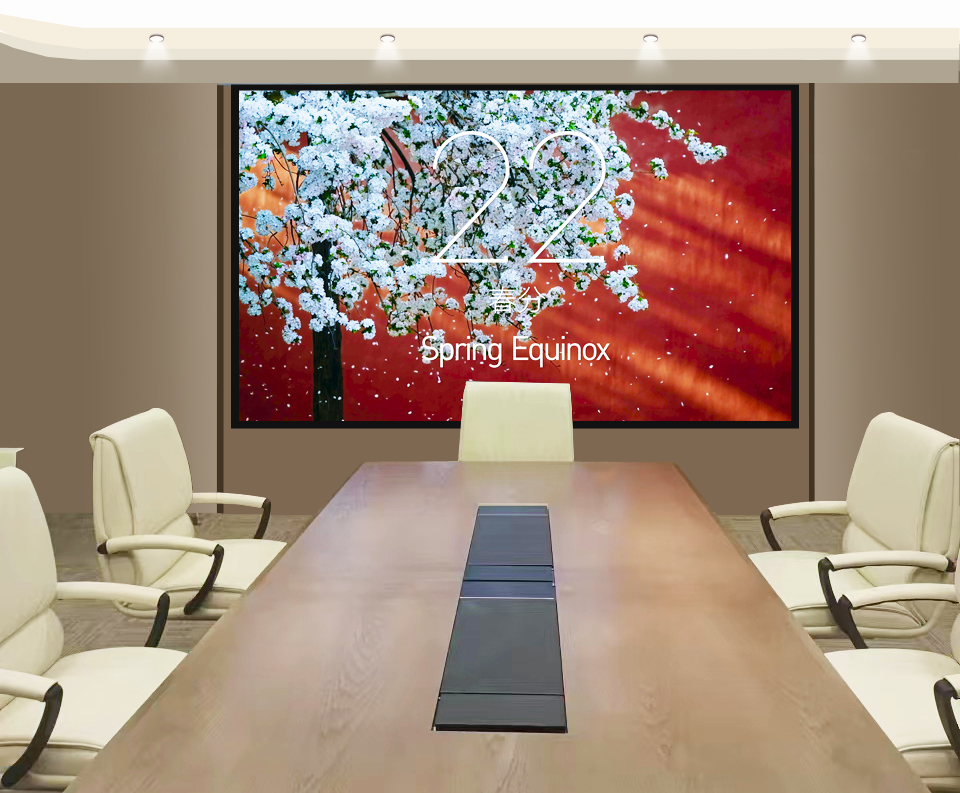

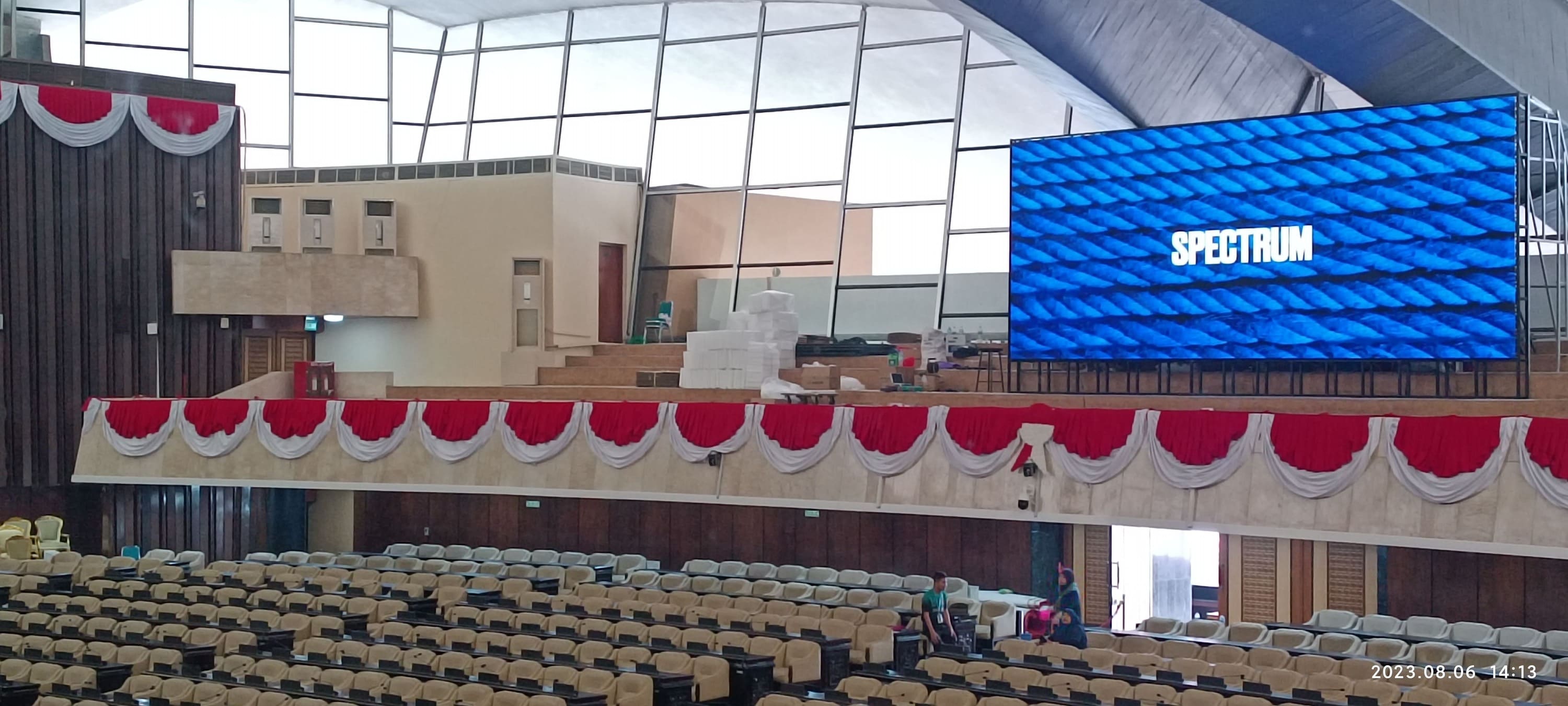

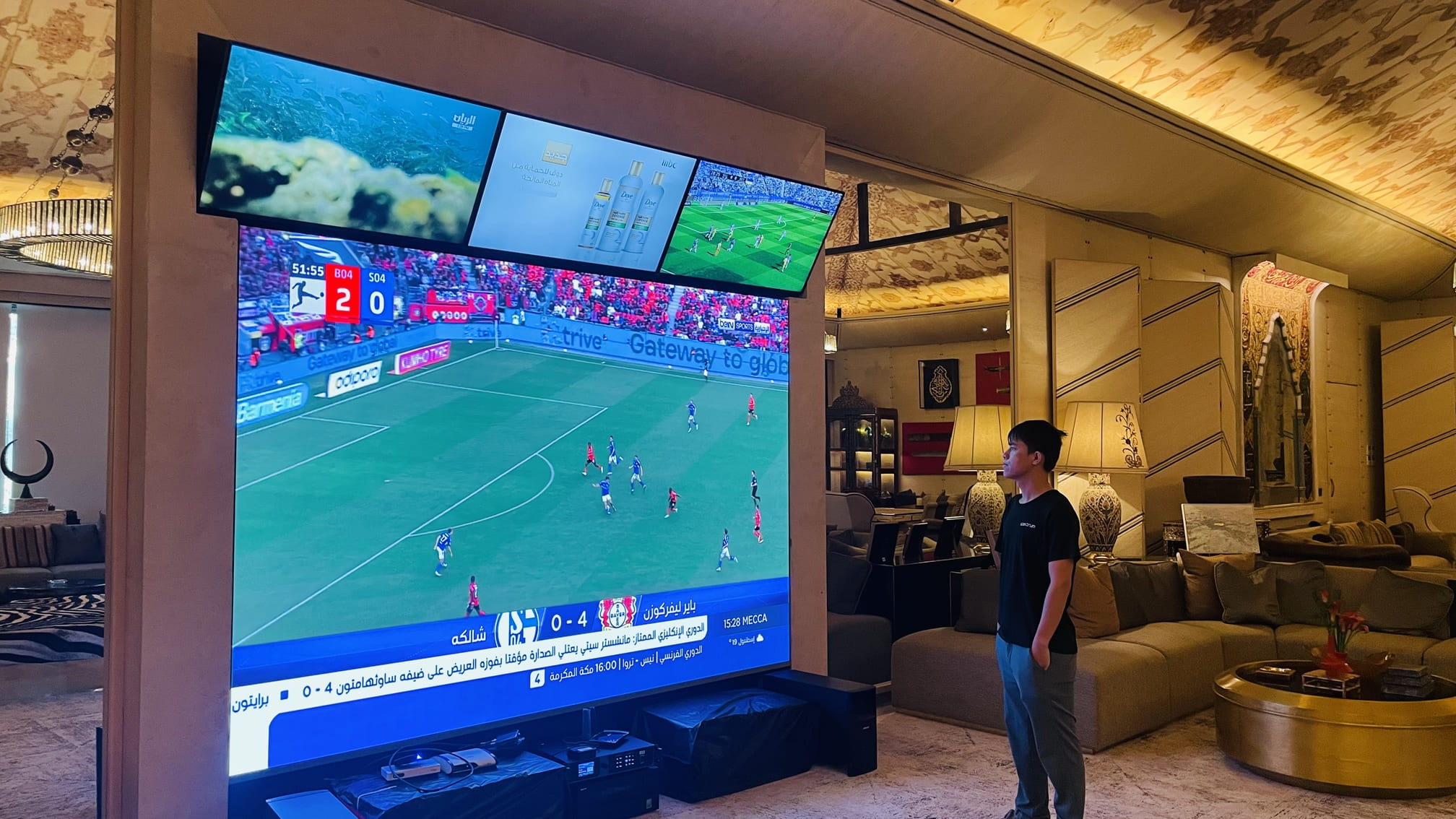

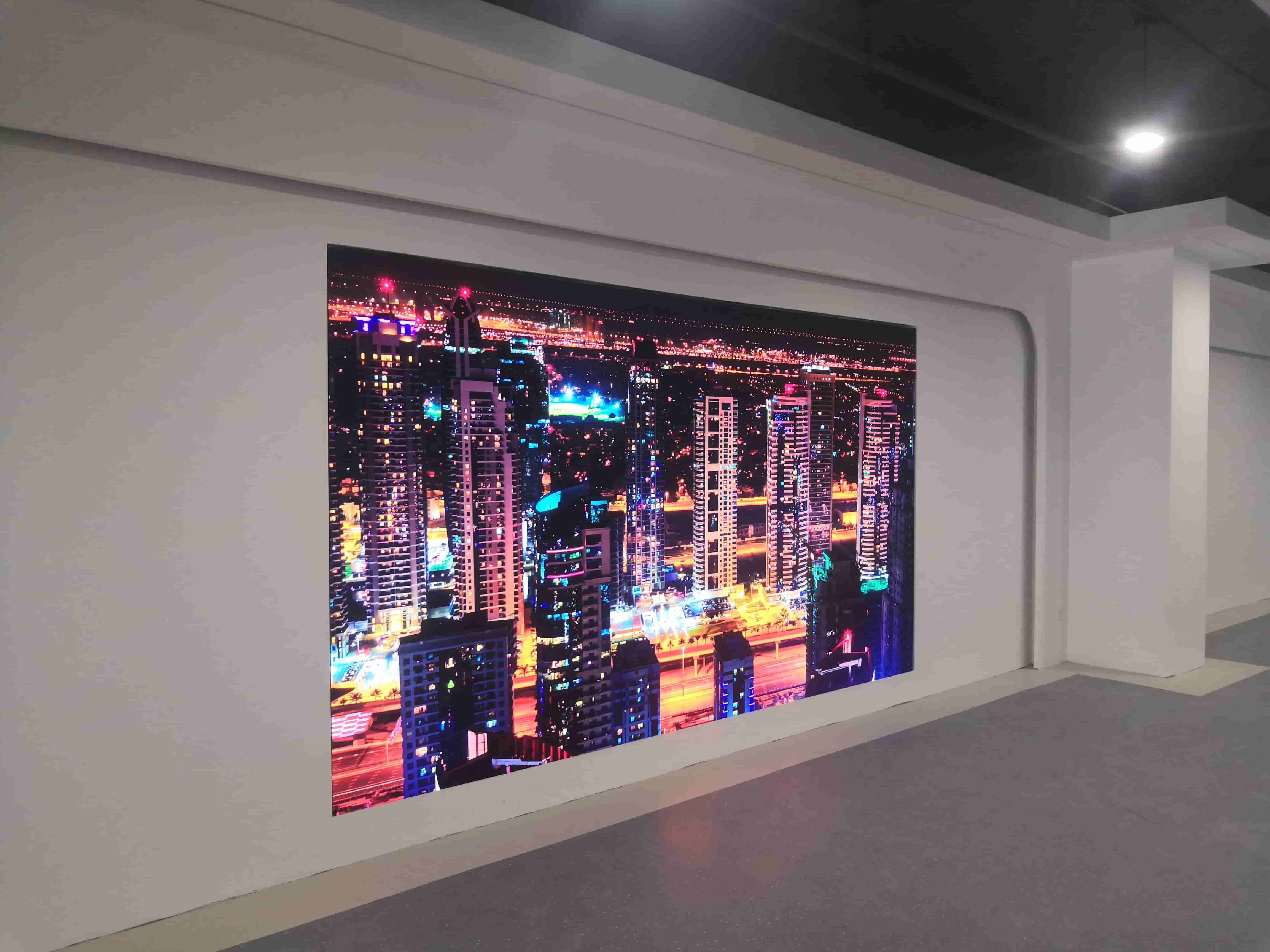

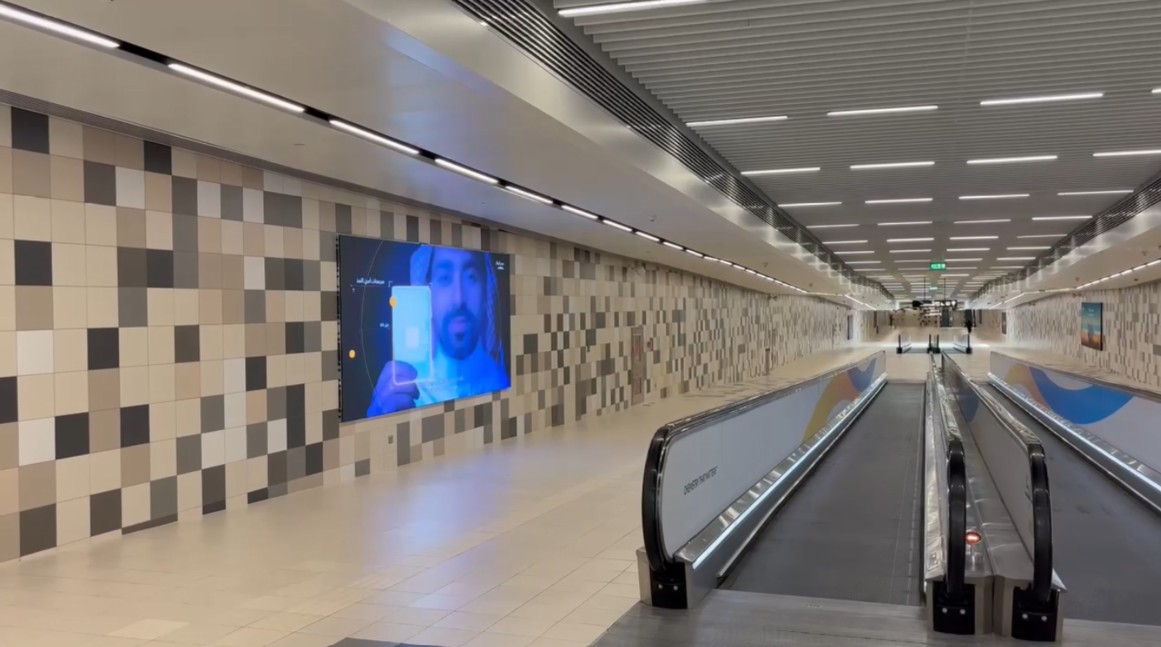

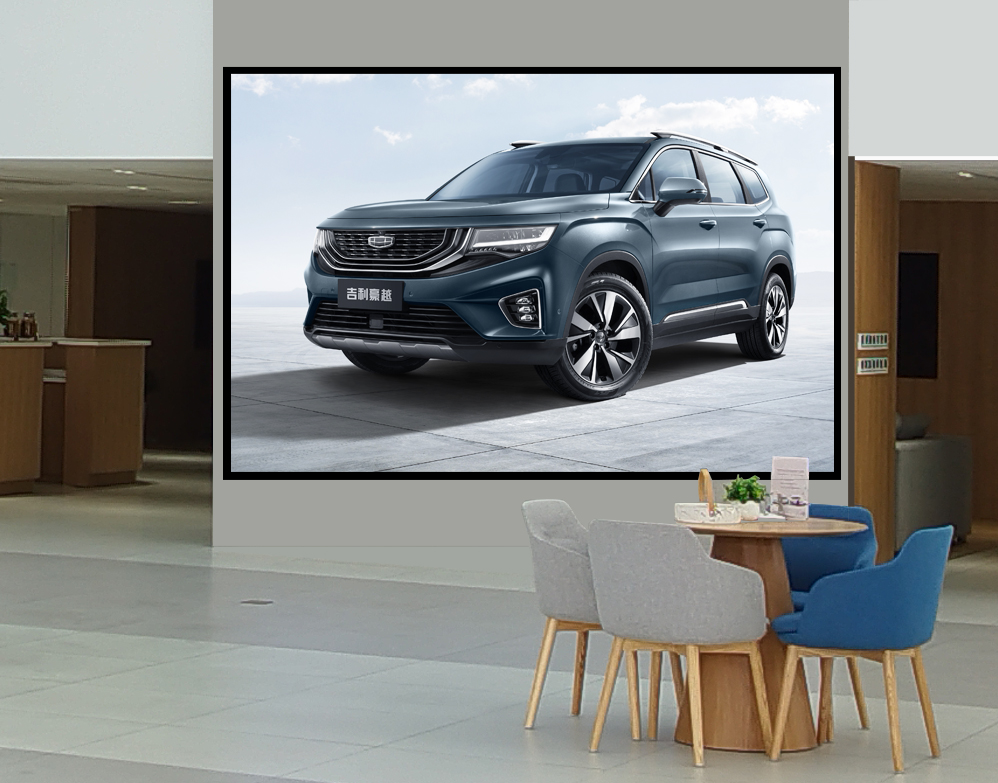

Our Projects

Explore our latest installations and success stories worldwide
