One-Sentence Definition

Spectrum Flip Matrix is a dynamic mechanical display solution from the SPFM Series by Shenzhen Jiandaqiang Technology Co., Ltd. (Spectrum Display).

The SPFM Series includes four models — SPFM-100, SPFM-168, SPFM-138L, and SPFM-138P — designed for different spatial requirements:

• high-density precision,

• large-area coverage,

• RGB lighting atmosphere,

• LED video display.

Each model transforms mechanical movement into a unique visual experience for different commercial spaces and creative applications.

Contents

• Why Model Selection Matters: Not Every Flip Matrix Is the Same

• Complete Comparison of the Four SPFM Series Models

• Detailed Analysis of Each Model

• Three-Step Selection Guide: From Scenario to Model Decision

• FAQ

• Conclusion

01 Why Model Selection Matters: Not Every Flip Matrix Is the Same

In commercial space design, “model selection” is often underestimated.

When many project owners first discover Flip Matrix, their first thought is:

“I want a wall that can move.”

But few people immediately consider the more important questions:

• How far will the audience view the display from?

• How large is the installation area?

• Will it be used during the day or at night?

• Does the project require video playback?

The answers directly determine which model is the right choice.

Flip Matrix is not a single product.

It is a product family.

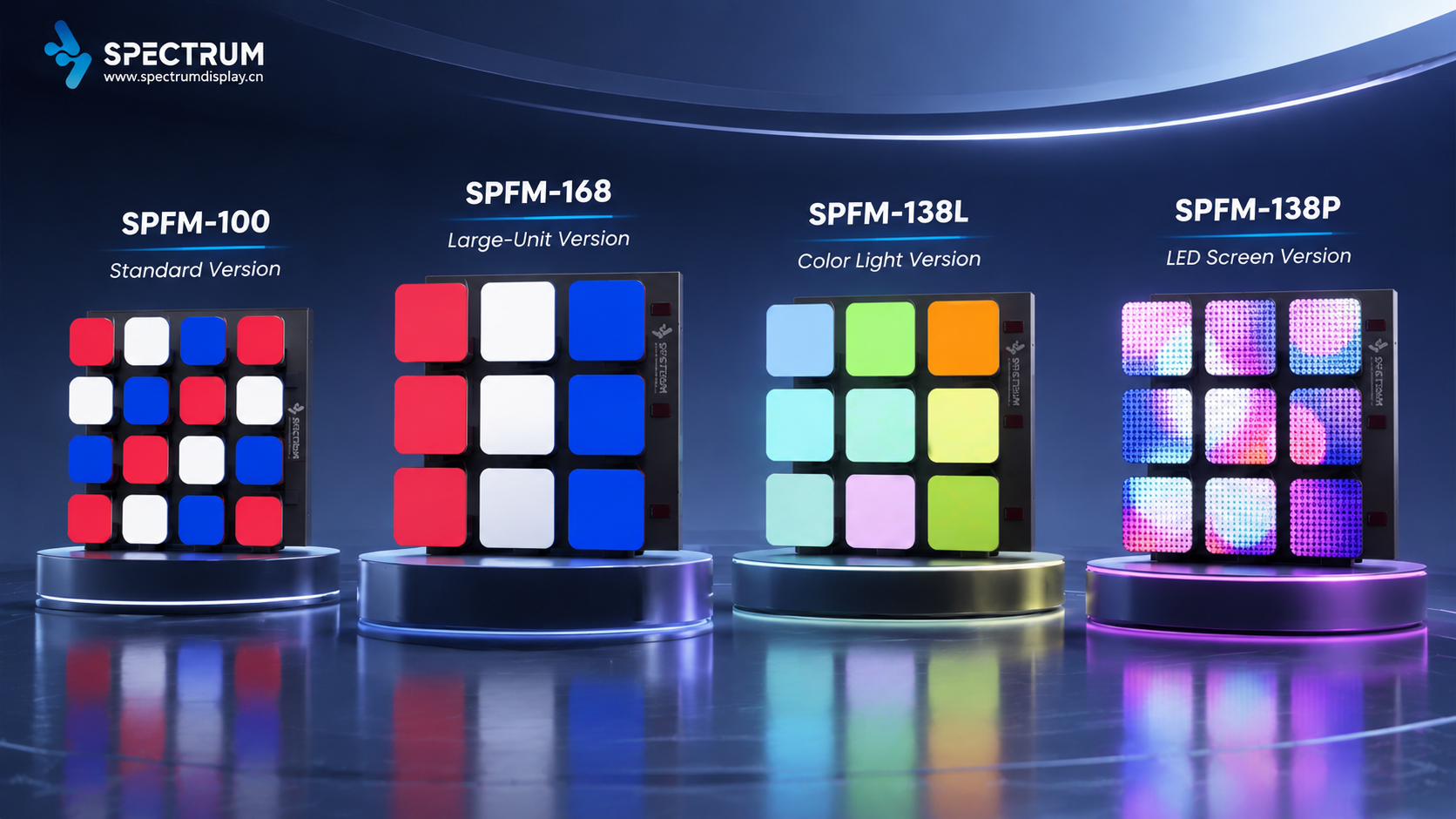

The SPFM Series includes four models:

• SPFM-100

• SPFM-168

• SPFM-138L

• SPFM-138P

Each model has a different positioning and application focus.

Choosing the wrong model can create two problems:

Too much investment in unnecessary functions.

Or insufficient performance for the creative goal.

Choosing the right model is the first step toward project success.

02 Complete Comparison of the Four SPFM Series Models

All four models share the same core mechanical performance:

• Maximum rotation speed: 3 Rev/s

• Switching time: 0.15s

However, they differ in:

• unit density,

• color block size,

• visual function,

• application scenarios.

03 Detailed Analysis of Each SPFM Model

SPFM-100

High-Density Precision for Premium Spaces

SPFM-100 is the highest-precision model in the SPFM Series.

Specifications:

• Unit density: 64 units/㎡

• Color block size: 100 × 100mm

• Fast-install cabinet size: 500 × 500mm (4 × 4 units)

• Cabinet power: 45W

• Power consumption: 180W/㎡

Core Advantages

• Highest unit density for the most detailed dynamic effects

• Smallest color block size for close viewing

• Clear flipping transitions without visible mechanical texture

• Lightweight cabinet design at only 7.3kg

Suitable Applications

• Luxury storefronts

• Premium retail entrances

• High-end showroom walls

• Close-view, high-detail environments

In luxury retail environments, customers may stand only a few dozen centimeters away from the display surface.

SPFM-100’s high-density structure is designed for this “close-distance visual experience”.

Every flipping unit remains clear and refined.

With:

• 0.15s switching speed

• 3 Rev/s maximum rotation speed

each transformation appears precise and controlled.

In premium commercial environments, this is what precision means.

SPFM-168

Large-Scale Coverage with Strong Visual Impact

SPFM-168 uses a larger unit design for large-area applications.

Specifications:

• Unit density: 25 units/㎡

• Color block size: 168 × 168mm

• Fast-install cabinet size: 600 × 600mm (3 × 3 units)

• Cabinet power: 36W

• Power consumption: 120W/㎡

SPFM-168 has the lowest energy consumption among the four models.

Core Advantages

• Lower unit density for wider coverage

• Lower power consumption

• Strong visual impact with balanced project cost

• Lightweight cabinet design at 8kg

Suitable Applications

• Large brand image walls

• Shopping mall atriums

• Airport public art installations

• Large-scale commercial spaces

For projects requiring large-area coverage, SPFM-168 provides a balance between:

visual impact,

installation efficiency,

and project cost.

At longer viewing distances, larger visual units can create stronger visual presence.

SPFM-138L

Mechanical Movement + RGB Lighting Atmosphere

SPFM-138L combines mechanical flipping with RGB full-color lighting.

Specifications:

• Unit density: 36 units/㎡

• Color block size: 138 × 138mm

• Fast-install cabinet size: 500 × 500mm (3 × 3 units)

• Cabinet power: 45W

• Power consumption: 180W/㎡

Core Advantages

Daytime:

The flipping units create patterns and visual graphics.

Nighttime:

RGB lighting creates dynamic atmosphere effects.

The system provides:

One installation, two visual expressions.

Suitable Applications

• Night commercial spaces

• Bars and entertainment venues

• Artistic installations

• Interactive lighting environments

The core value of SPFM-138L is its ability to transform throughout the day.

During daytime:

It functions as a mechanical visual wall.

At night:

RGB lighting becomes the dominant visual language.

One mechanical system.

Two completely different spatial experiences.

SPFM-138P

Mechanical Movement + LED Video Display

SPFM-138P combines mechanical flipping technology with an LED display surface.

Specifications:

• Unit density: 36 units/㎡

• Color block size: 138 × 138mm

• Fast-install cabinet size: 500 × 500mm (3 × 3 units)

• Power consumption: 400W/㎡

The higher power consumption comes from the additional LED display function.

Core Advantages

• LED surface can display high-definition video content after flipping

• Mechanical movement synchronizes with video playback

• Combines physical movement and digital content

• Cabinet weight: 8kg

Suitable Applications

• Premium brand showrooms

• Launch event stages

• Interactive installations

• Video display walls

SPFM-138P is the most comprehensive model in the SPFM Series.

It combines:

the artistic expression of mechanical movement,

with the storytelling ability of video content.

When a brand needs both:

dynamic physical installation

and

digital storytelling,

SPFM-138P provides both capabilities.

04 Three-Step Selection Guide: From Scenario to Model Decision

Choosing the right Flip Matrix model can be simplified into three steps.

Step 1: Consider Viewing Distance

Viewing distance is the first selection factor.

The closer the audience is, the higher the precision requirement.

SPFM-100 is designed specifically for close-distance premium visual experiences.

Step 2: Consider Content Requirements

Content requirements determine the functional direction.

If the project only needs graphic transformation:

SPFM-100 or SPFM-168 is sufficient.

If the project requires lighting atmosphere:

SPFM-138L is the ideal choice.

If video playback is required:

SPFM-138P provides the solution.

Step 3: Consider Space Size

There is no “best” model.

There is only the most suitable model for each space.

05 FAQ

Q1: What are the main differences between SPFM-100, SPFM-168, SPFM-138L, and SPFM-138P?

SPFM-100 focuses on high-density precision and is ideal for luxury storefronts and close viewing.

SPFM-168 focuses on large-area coverage and cost efficiency.

SPFM-138L combines mechanical movement with RGB lighting effects.

SPFM-138P combines mechanical movement with LED video display.

Q2: How should I choose between SPFM-138L and SPFM-138P?

The choice depends on content requirements.

Choose SPFM-138L when the goal is:

• lighting atmosphere,

• artistic effects,

• nighttime visual experiences.

Choose SPFM-138P when the goal is:

• video playback,

• brand storytelling,

• digital content presentation.

Q3: Is Flip Matrix energy efficient?

Different models have different power requirements.

• SPFM-100: 180W/㎡

• SPFM-168: 120W/㎡

• SPFM-138L: 180W/㎡

• SPFM-138P: 400W/㎡

SPFM-138P requires additional power because of its LED video display function.

Q4: Can Flip Matrix surfaces be customized?

Yes.

Surface finishes can be customized according to brand requirements, including:

• injection molding,

• metal finishes,

• painting,

• electroplating,

• UV printing.

Available visual finishes include:

• glossy,

• matte,

• mirror,

• color-changing effects.

Q5: Can Flip Matrix integrate with existing lighting systems?

Yes.

The SPFM Series supports:

• DMX512

• Art-Net

allowing integration with:

• stage lighting systems,

• intelligent lighting systems,

• interactive control platforms.

Q6: Is installation and maintenance complicated?

No.

The SPFM Series uses:

• fast-install cabinet design,

• modular structure.

Individual units can be replaced separately without affecting the entire installation.

Flexible maintenance options are available according to different project environments.

06 Conclusion

Flip Matrix is not a single product.

It is a product family designed for different spatial experiences.

Choosing the right model means choosing the right relationship between:

• space,

• audience,

• content,

• visual impact.

Key Takeaways

SPFM-100

64 units/㎡ high density

Best for:

Luxury storefronts and premium close-view applications.

SPFM-168

25 units/㎡ large-area coverage

Best for:

Large brand walls and public spaces.

SPFM-138L

Mechanical movement + RGB lighting

Best for:

Night commercial spaces and artistic installations.

SPFM-138P

Mechanical movement + LED video display

Best for:

Premium showrooms and launch events.

Three-Step Selection Method

1. Check viewing distance
   Choose the right precision level.

2. Check content requirements
   Choose the right functional version.

3. Check space size
   Choose the right unit density.

The right Flip Matrix model is not the one with the most features.

It is the one that best matches the story the space wants to tell.

For more product details or customized selection support, contact the Spectrum Display team through:

www.spectrumdisplay.cn
