SPFM-168 is a large-format three-sided Flip Matrix for large commercial projects. Its 200 × 200mm units and 25 units/m² reduce unit count and cost while keeping flips, waves, and color blocks.
Flip Matrix
SPFM-168
SPFM-168 is a large-format three-sided Flip Matrix for large commercial projects. Its 200 × 200mm units and 25 units/m² reduce unit count and cost while keeping flips, waves, and color blocks.
Features

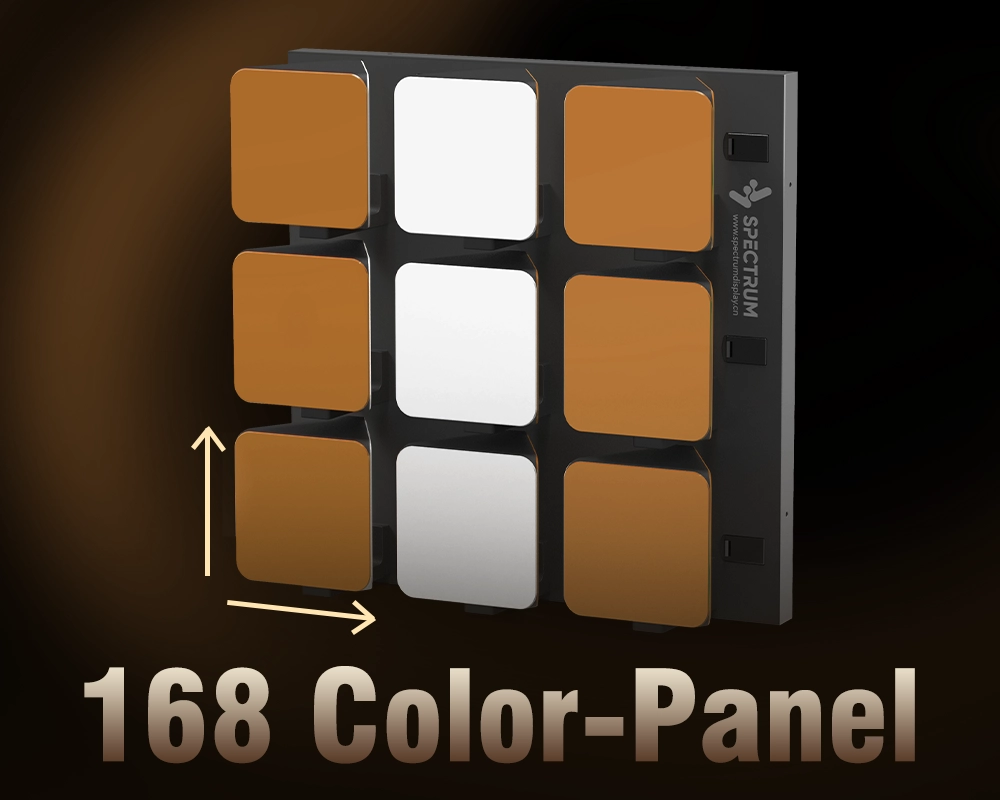

Large-Format Flip Units
The SPFM-168 features 200 × 200mm flip units with a visible color-panel size of 168 × 168mm. The larger physical surfaces create stronger color transitions and more noticeable mechanical movement in large spaces and long-distance viewing environments.

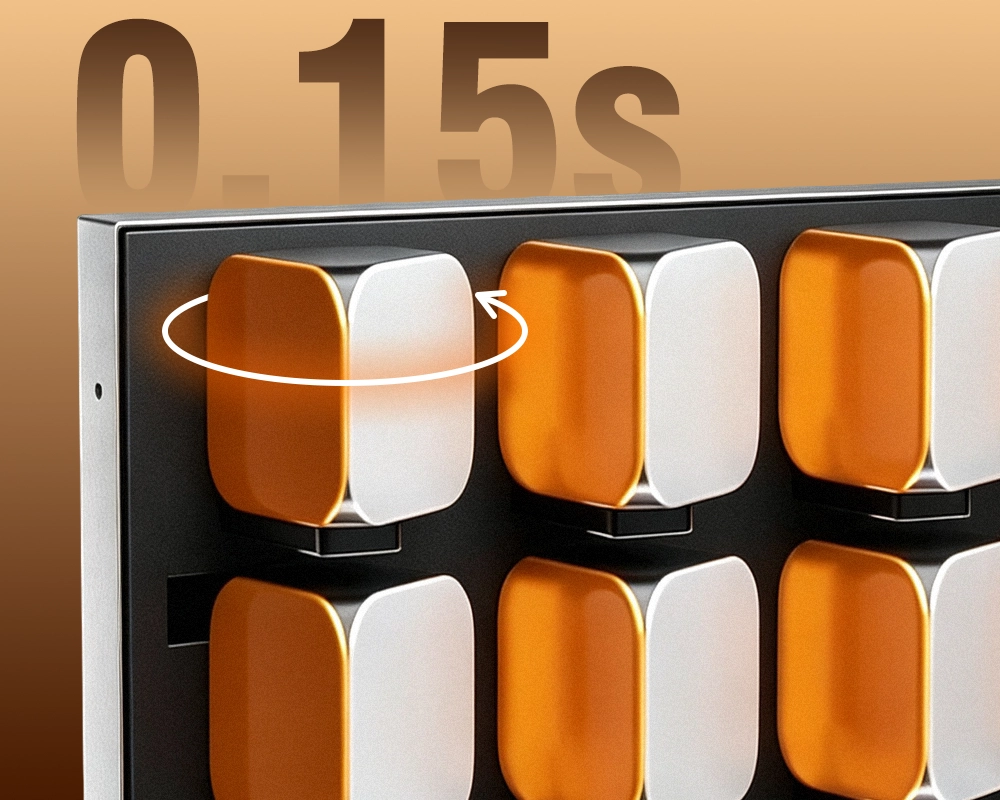

Three-Sided Flip, Dynamic Mechanical Motion
Each mechanical unit provides three physical display surfaces and switches to another surface in only 0.15 seconds. Matrix-based control creates three-color transitions, transforming patterns, flowing waves, and continuous flipping effects.
High-Speed and Precise Motion Control
The flip units reach a maximum rotation speed of 3Rev/s, while the system corrects the angle error of each unit in real time. DMX512 and Art-Net compatibility enable stable and synchronized motion across large-scale matrix installations.

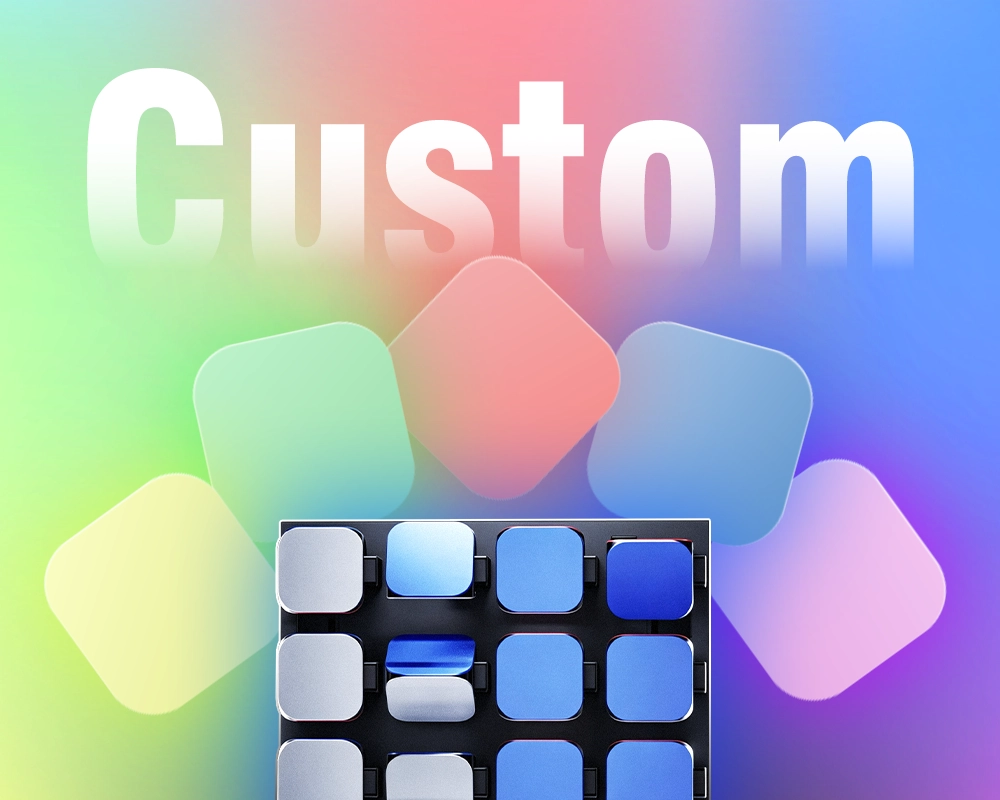

Flexible Customization Design
The SPFM-168 supports various surface customization options, including natural plastic finishes, UV printing, electroplating, and color film applications. With gloss, matte, and mirror effects available, it enables personalized visual designs for commercial spaces, art installations, and brand showcase projects.
Specification
Item | SPFM-168 |
|---|---|
Color Panel Size (W × H) | 168 × 168mm |
Flip Unit Size (W × H) | 200 × 200mm |
Quick-Installation Cabinet Size | 600 × 600mm (3 × 3 units) |
Cabinet Thickness | 225mm |
Front Structure Depth | 165mm |
Rear Structure Depth | 60mm |
Cabinet Weight | 6kg |
Power Consumption per Cabinet | 36W |
Maximum Rotation Speed | 3Rev/s |
Surface Switching Time | 0.15s |
Flip Units per Square Meter | 25 units |
Weight per Square Meter | 17kg/m² |
Power Capacity per Square Meter | 120W/m² |
Anti-Pinch Motor Disable Trigger | 200g |
Maintenance Method | Front and Rear Maintenance |
Surface Finish Options | Natural Plastic, UV Printing, Electroplating, Color Film |
Installation Method | Downward Suspension, Wall-Mounted, Upward-Facing, Custom-Shaped Installation |
Outdoor Installation Angle Limit | ≤90° |
Angle Correction | Real-Time Rotation Angle Error Correction |
Communication Protocol | DMX512 and Art-Net |
Content Creation Software | MADRIX and TouchDesigner |
Interactive Device Integration | Camera and LiDAR |
Cooling Method | Open Natural Cooling |
Indoor Operating Temperature | 0–40°C |
Outdoor Operating Temperature | -10–60°C |
Indoor Operating Humidity | ≤70% RH, Non-Condensing |
Outdoor Operating Humidity | ≤95% RH |
