Commercial

Snowbird Series

Features

Simplified Cabinet

A quick and efficient choice suitable for various settings. The streamlined cabinet design not only allows for swift installation but also guarantees outstanding performance for your display screen.

Exceptional Resolution

The Snowbird series boasts exceptional pixel density and resolution, with a refresh rate of up to 3840Hz, ensuring that every detail is vividly displayed with unparalleled clarity.

Module Integration with Structural Assembly

Module Integration with Structural Assembly

Metal CabinetDie-Cast Cabinet

The ideal choice for achieving perfect flatness. The structural engineering of metal and die-cast cabinets enhances screen flatness, ensuring pixel-perfect perfection.

Specifications

Series

Snow Bird-320x160 Module Splicing

Pixel Configuration

SMD1515

SMD 1515

SMD2121

SMD2121

SMD2121

Pixel Pitch (mm)

1.86mm

2mm

2.5mm

3.076mm

4mm

No. of Modules per Unit Case (WxH)

/

/

/

/

/

Module Resolution (WxH)

172×86

160×80

128×64

104×52

80×40

Module Dimensions (WxHxD, mm)

320x160

Module Surface Area (m²)

0.0512

Weight per Square Meter (kg/m²)

0.38

0.37

0.36

0.34

0.33

Physical Pixel Density (pixels/m²)

289050

250000

160000

105688

62500

Flatness of Unit Case (mm)

/

/

/

/

/

Unit Case Material

/

/

/

/

/

Service Access

Front

Max. Brightness

≥650CD/m²

Color Temperature

6500K

Visual Viewing Angle (Horizontal)

140

Visual Viewing Angle (Vertical)

140

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

400W/m²

Power Supply (V)

AC100~240

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

3840Hz

LED Lifetime (Half Brightness) 2)

100000

Operating Temperature (°C)

-20℃~+50℃

Operating Humidity

10%~90%

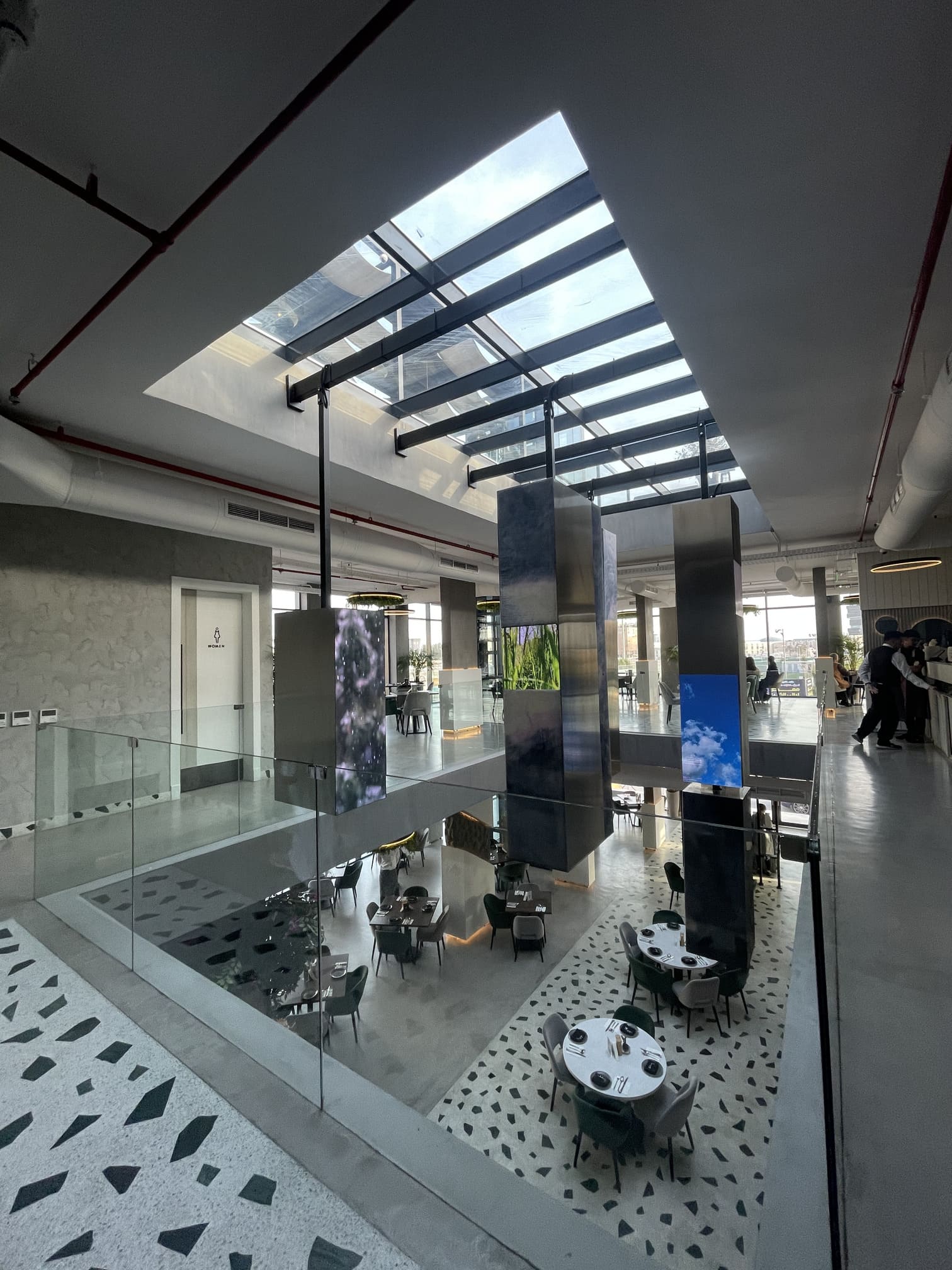

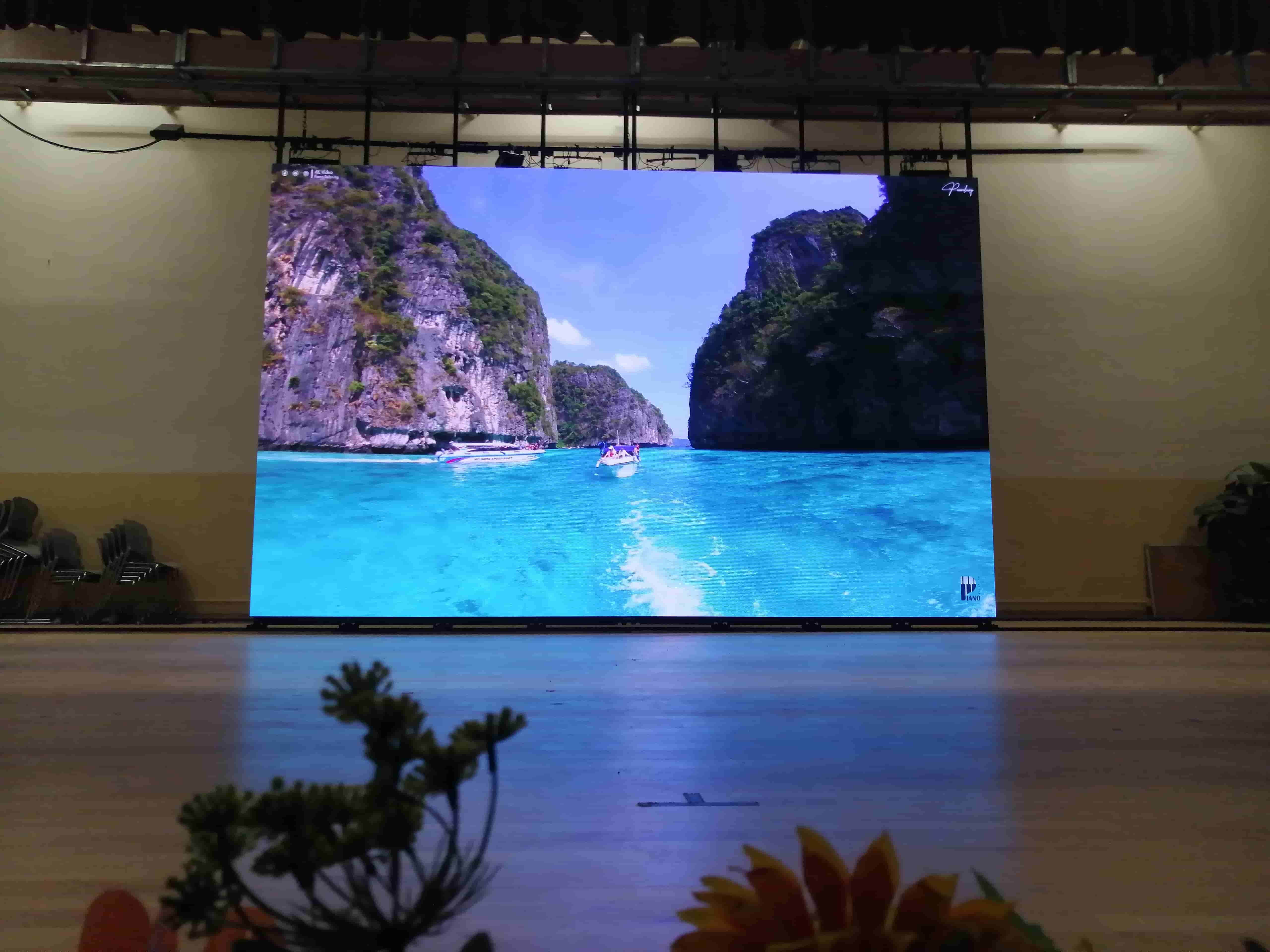

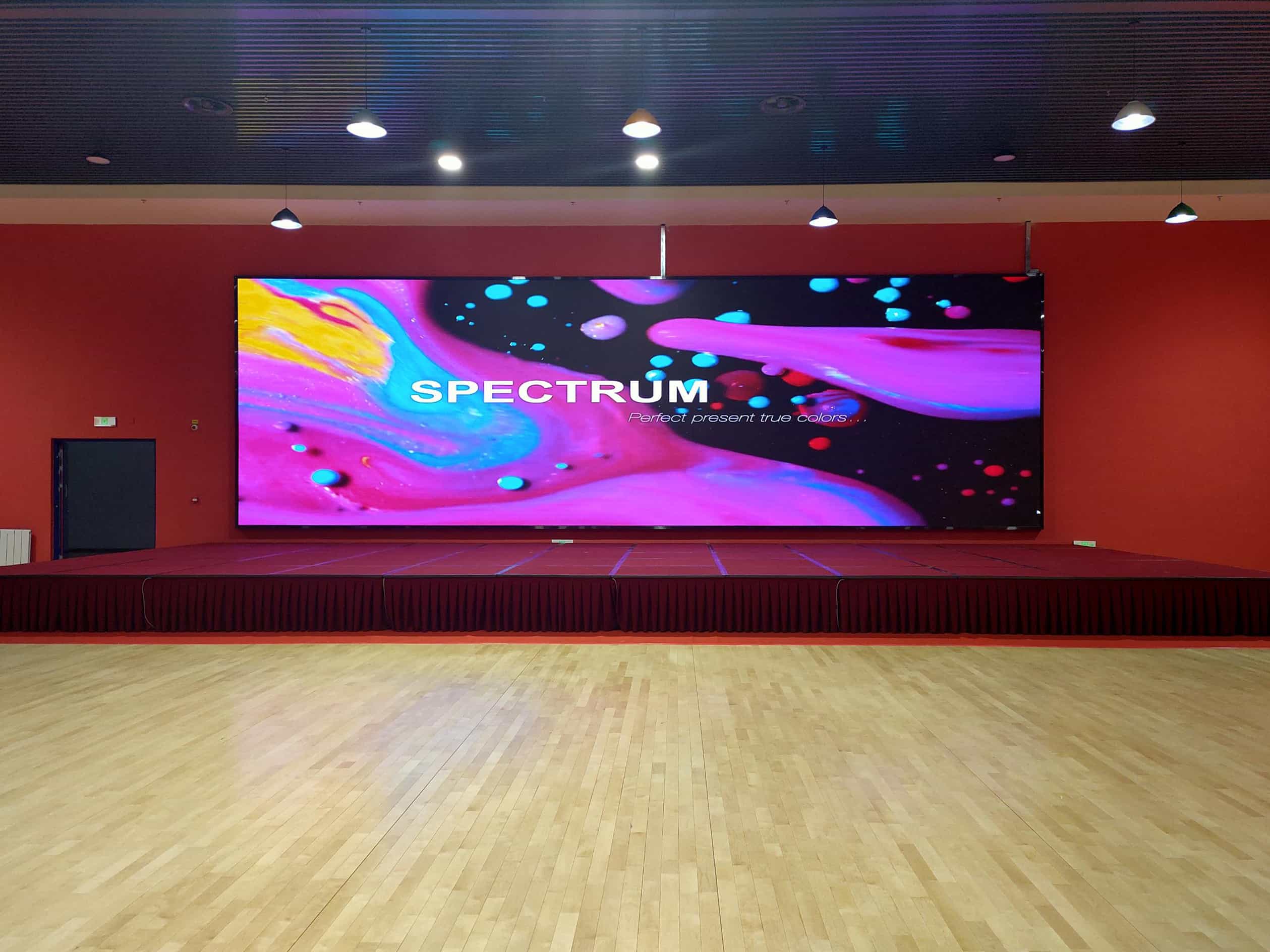

Our Projects

Explore our latest installations and success stories worldwide
