雪鸟系列
商用LED显示屏

雪鸟系列

雪鸟系列室内 LED 显示屏以自然界中优雅大气的雪鸟为设计灵感,融合其出众特质,打造震撼高清显示效果。

特性

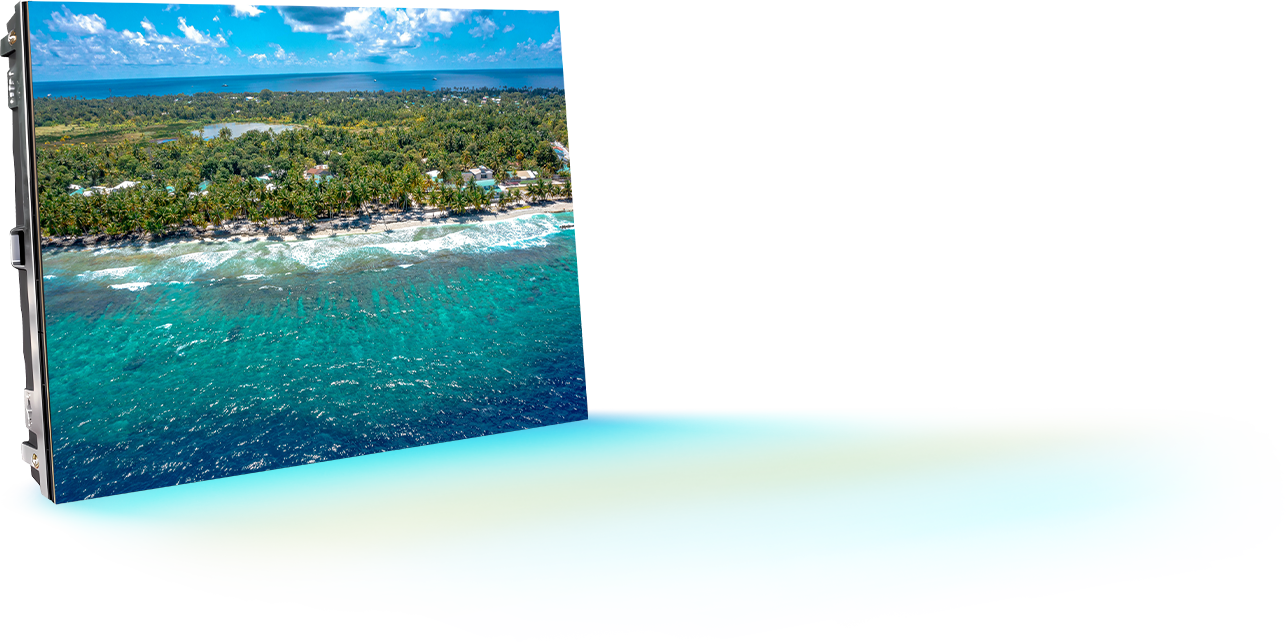

高清解析,高刷细腻

高清解析,高刷细腻

具备超高像素密度与分辨率,刷新率高达 3840Hz,画面细节锐利干净,色彩鲜活通透,将图像内容细腻真实地呈现出来,带来优质视觉体验。

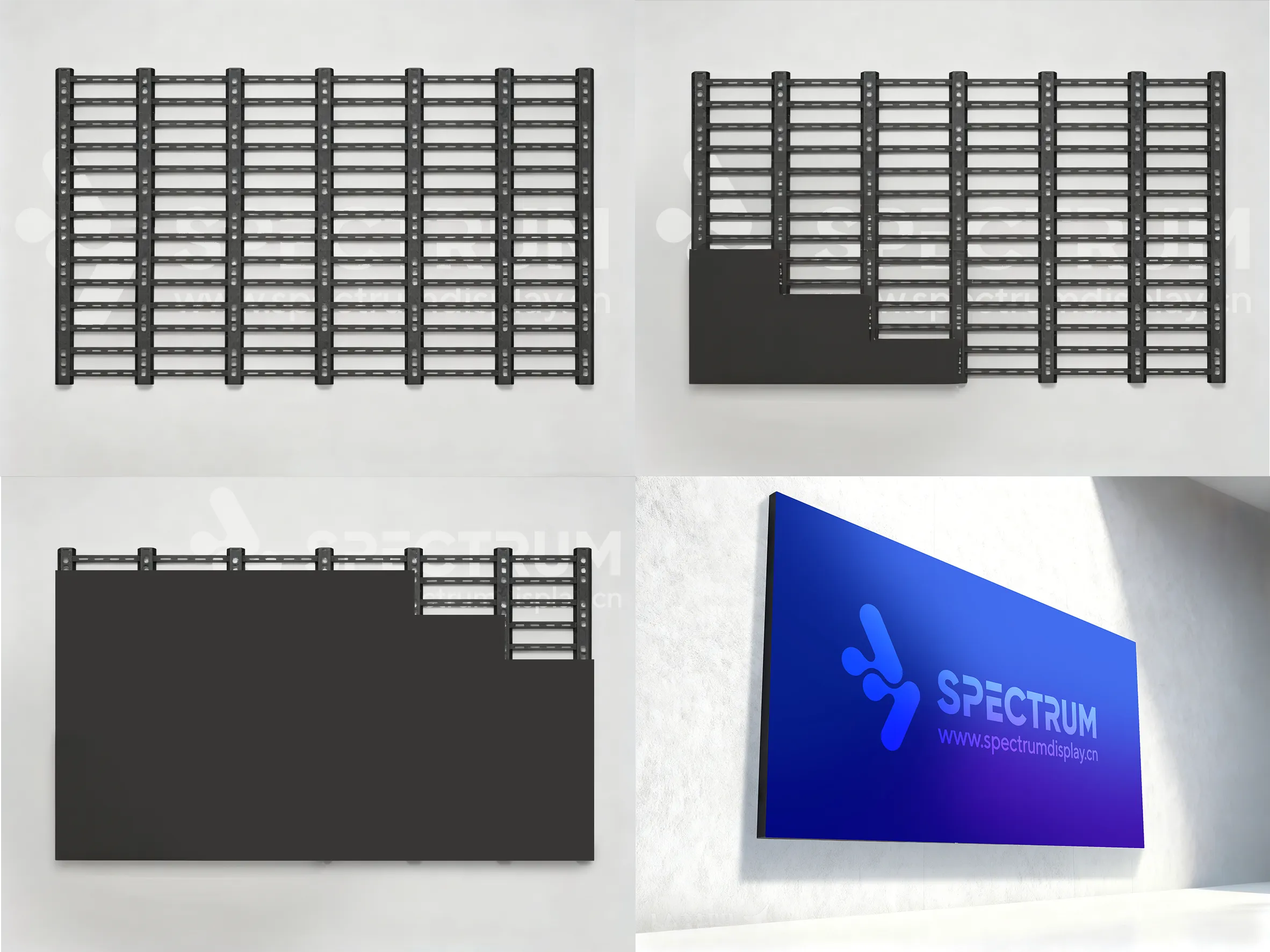

一体拼装,无缝融合

一体拼装,无缝融合

采用轻量化一体化设计,有效降低承重压力与项目成本。模组与结构无缝贴合融合,消除拼接缝隙,呈现出极致平整、效果出众的显示画面。
金属压铸,整屏平齐

金属压铸,整屏平齐

金属压铸箱体工艺,是实现屏幕极致平整度的优选方案。精密箱体结构大幅提升整屏平整度,消除拼接凹凸偏差,输出精准无瑕的优质画质。

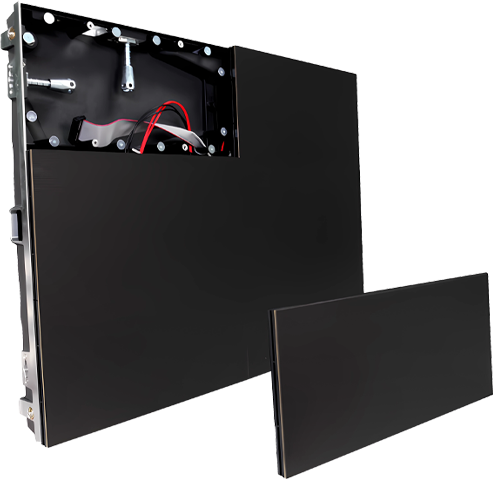

精简箱体,高效部署

精简箱体,高效部署

简约流线型箱体适配各类应用场景,安装快捷高效。兼顾快速装配能力,保障显示屏长时间稳定出色运行,兼顾实用性能与部署效率。

规格

Series

Snow Bird Series
320x160 Module Splicing

Pixel Configuration

SMD1515

SMD 1515

SMD2121

SMD2121

SMD2121

Pixel Pitch (mm)

1.86

2

2.5

3.076

4

No. of Modules per Unit Case (WxH)

/

/

/

/

/

Module Resolution (WxH)

172×86

160×80

128×64

104×52

80×40

Module Dimensions (WxHxD, mm)

320x160

Module Surface Area (m²)

0.0512

Weight per Square Meter (kg/m²)

0.38

0.37

0.36

0.34

0.33

Physical Pixel Density (pixels/m²)

289050

250000

160000

105688

62500

Flatness of Unit Case (mm)

≤0.15mm

≤0.15mm

≤0.15mm

≤0.15mm

≤0.15mm

Unit Case Material

Iron/Die casting cabinet

Iron/Die casting cabinet

Iron/Die casting cabinet

Iron/Die casting cabinet

Iron/Die casting cabinet

Service Access

Front

Max. Brightness

≥600CD/m²

Color Temperature

6500K

Visual Viewing Angle (Horizontal)

140

Visual Viewing Angle (Vertical)

140

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

400W/m²

Power Supply (V)

100-240V

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

7680Hz

LED Half-Brightness Lifetime

100000 Hours

Operating Temperature (°C)

-20℃~+50℃

Operating Humidity

10%~90%

Protection Level

IP30

我们的项目

探索我们全球最新的安装项目和成功案例

Snowbird Series Module Assembled P3 Project - AMBIANCE RESTAURANT Saudi Dammam

Snowbird Series Module Assembled P3 Project - AMBIANCE RESTAURANT Saudi Dammam

The Snowbird Series Module Assembled P2.5 project at AMBIANCE RESTAURANT in Dammam, Saudi Arabia, is a stylish visual enhancement designed to elevate the dining experience. With a P2.5 pixel pitch, the display delivers crisp, vibrant visuals that complement the restaurant’s ambiance—ideal for showcasing menus, promotional offers, culinary videos, or ambient content to set the mood. The module-assembled design allows for flexible installation, whether integrated into the interior decor as a feature wall, behind the bar, or above dining areas, ensuring it blends seamlessly with the restaurant’s aesthetic. Covering around 25 square meters, this display adds a modern touch to the dining space, engaging patrons with eye-catching content that enhances their overall experience at AMBIANCE RESTAURANT.

Dammam, Saudi Arabia
产品:
Snowbird Series
像素间距:
P2.5
面积:
25 square meters
应用场景:
Restaurants, Dining Venues, Cafés, Hospitality Spaces, Food & Beverage Outlets
Snowbird Series Module Assembled P3 Project - Zhuhai Restaurant Auditorium

Snowbird Series Module Assembled P3 Project - Zhuhai Restaurant Auditorium

The Snowbird Series Module Assembled P3 project in the auditorium of Zhuhai Restaurant is a versatile visual solution designed to elevate large-scale dining events, banquets, and culinary gatherings. With a P3 pixel pitch, the display delivers clear, high-definition visuals, ideal for showcasing event themes, guest speeches, culinary demonstrations, or custom content that enhances the ambiance of weddings, corporate dinners, or cultural celebrations. The module-assembled design allows flexible installation to fit the auditorium’s layout, ensuring seamless imagery and wide viewing angles that engage all attendees. Covering around 26 square meters, this display transforms the restaurant’s auditorium into a dynamic event space, blending functionality with visual appeal to create memorable experiences for guests while highlighting the venue’s capacity for hosting special occasions.

Zhuhai
产品:
Snowbird Series
像素间距:
P3
面积:
26 square meters
应用场景:
Restaurant Auditoriums, Banquet Halls, Dining Event Spaces, Private Function Rooms, Culinary Event Venues
Snowbird Series Module Assembled P3 Project - The Auditorium of Beijing No. 2 Middle School

Snowbird Series Module Assembled P3 Project - The Auditorium of Beijing No. 2 Middle School

The Snowbird Series Module Assembled P3 project in the auditorium of Beijing No. 2 Middle School is a versatile visual solution designed to support various educational and cultural activities. With a P3 pixel pitch, the display delivers clear, high-definition visuals, making it ideal for showcasing school performances, academic lectures, award ceremonies, educational videos, and student presentations. The module-assembled design of the Snowbird Series allows for flexible installation, adapting to the auditorium’s stage layout while ensuring seamless image quality and wide viewing angles—critical for engaging audiences of students, teachers, and guests. Covering around 50 square meters, this display enhances the auditorium’s functionality, providing a dynamic platform that enriches the educational and cultural experience within the school.

Beijing
产品:
Snowbird Series
像素间距:
P3
面积:
30 square meters
应用场景:
School Auditoriums, Educational Venues, Performance Halls, Student Assembly Spaces, Lecture Theaters
Snowbird Series Module Assembled P3 Project - Church Hong Kong

Snowbird Series Module Assembled P3 Project - Church Hong Kong

The Snowbird Series Module Assembled P3 project at a church in Hong Kong is a versatile visual solution tailored to enhance spiritual and community engagement. With a P3 pixel pitch, the display delivers clear, warm visuals, perfect for showcasing religious teachings, worship lyrics, event schedules, and community outreach videos. The module-assembled design of the Snowbird Series allows for flexible installation, adapting to the church’s architectural layout—whether mounted on a stage backdrop or a dedicated information wall—while ensuring seamless image quality. Covering around 35 square meters, this display fosters a more immersive worship experience, helping congregants connect with content and strengthening the sense of community within the church.

Hong Kong
产品:
Snowbird Series
像素间距:
P3
面积:
35 square meters
应用场景:
Church, Religious Venues, Community Centers, Indoor Worship Spaces, Spiritual Gathering Halls
Fujian NingHua Hospital Conference Hall LED Display

Fujian NingHua Hospital Conference Hall LED Display

The Snowbird Series P2.5 LED display is customized for the conference hall of Fujian NingHua Hospital, designed to meet the professional needs of medical meetings. With P2.5 fine pixel pitch, it presents ultra-clear text, medical images (such as CT scans, case charts) and video content, ensuring every participant can clearly capture details during academic discussions or training sessions. It supports multi-device signal input (computers, projectors, video conferencing systems) and seamless splicing, adapting to large-scale medical seminars and remote consultation scenarios. The display also has low-noise operation and eye-protective brightness adjustment, creating a comfortable environment for long-hour meetings, effectively improving the efficiency of the hospital’s academic exchange and staff training.

Ninghua, Fujian, China
产品:
Snowbird Series
像素间距:
P2.5
面积:
18.5 square meters
应用场景:
Conference Halls, Academic Meetings, Staff Training Rooms
