One‑sentence definition: A custom foldable LED window system is a building‑grade visual solution that deeply integrates LED display modules with precision mechanical folding structures. Through physical opening/closing and telescoping motion, the display system can "disappear" into the building facade when not in use, achieving a fused visual experience where "display is space, and space is display."
Table of Contents
Project Background
Client Challenges
Solution
Technical Highlights
Project Outcomes
Further Reflections
1. Project Background
Project Type: High‑End Exhibition Space
Project Location: Core Business District, First‑Tier City, China
Application Scenario: Brand Flagship Store / High‑End Exhibition Space Building Facade
Core Objective: To implant a visually impactful dynamic display system while preserving the spatial transparency and aesthetic integrity of the building
Located in a prime business district of a first‑tier Chinese city, the owner of this high‑end exhibition space sought to integrate a technologically striking display system into the building facade—without compromising the building's natural transparency and design language. Traditional flat‑panel LED solutions were rejected outright—a "black screen hanging on the facade" would severely undermine the building's overall aesthetic.
JDStrong Technology (Spectrum Display) provided a complete Custom Foldable LED Window System (Kinetic Foldable LED Window) solution for this project.
2. Client Challenges
Challenge 1: Space Constraints—No Rear Maintenance Access
The building's structural design offered zero rear access for maintenance personnel. Traditional mechanical LED screens often require up to 1 meter of depth behind the wall to accommodate motor structures and rear maintenance channels. This approach was simply not feasible for this project.
Challenge 2: Visual Requirements—Zero "Black Grid" Artifacts
As a high‑end brand exhibition space, image quality was non‑negotiable. In close‑range indoor scenarios, the 2‑3mm physical gaps between traditional spliced screen modules create severe "black grid" visual tearing. Any visible gap would diminish the brand's premium positioning.
Challenge 3: Architectural Integration—The Display Must "Disappear"
The owner's core requirement: when not in use, the screen cannot appear as a "black rectangle" on the wall. The display system must visually "disappear" into the building facade, becoming one with the space.
Challenge 4: Safety Control—Reliability of Mechanical Opening/Closing
The foldable LED window involves high‑frequency mechanical opening and closing actions. In a commercial space operating with multiple daily cycles, the durability of the mechanical structure, smoothness of operation, and safety mechanisms such as anti‑pinch protection were all critical engineering challenges that had to be addressed.
3. Solution
JDStrong Technology custom‑developed a Foldable LED Window System (Kinetic Foldable LED Window) for this project. The core design concept: deeply integrate LED display modules with a precision folding mechanical structure, enabling the screen to open and close like a "window"—delivering stunning visuals when deployed and blending seamlessly into the building facade when closed.
Project Core Specifications:
Parameter | Specification |
|---|---|
Display Area | 13.5m (W) × 3.12m (H) |
Pixel Pitch | P2 (Indoor HD) |
Folding Method | Custom Mechanical Folding Structure |
Maintenance Access | Pure Front Maintenance |
Display Quality | 0mm Visual Seamless |
Core Design Approach:
1. Pure Front Maintenance Architecture—Zero Rear Space Requirement
JDStrong implemented a pure front maintenance (pure front maintenance) architecture throughout the project. Technicians can complete all LED module removal, replacement, and inspection from the front of the screen—no rear access required, and no maintenance channels needed within the wall structure.
This design completely eliminated the project's most significant spatial constraint. The total installation depth was minimized, allowing the kinetic screen to sit flush against the building facade "like a mural."
2. 0mm Visual Seamless—Luxury‑Grade Image Quality
To meet the stringent image quality demands of a high‑end exhibition space, JDStrong leveraged proprietary LED chip offset technology and extremely strict structural tolerance control to reduce physical gaps between modules to just 0.5mm. At standard commercial viewing distances, this delivers a perfect "0mm visual seamless" experience, completely eliminating image tearing.
3. Custom Folding Mechanical Structure—Architecture Meets Display

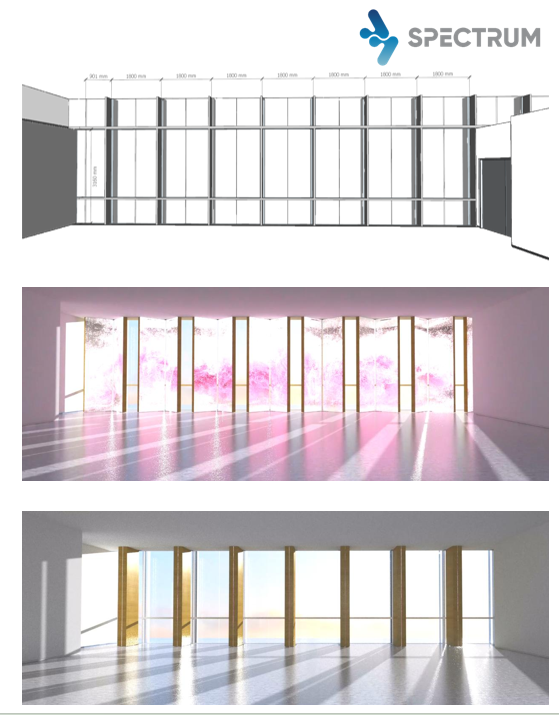

JDStrong engineered a bespoke mechanical folding structure for this project. When deployed, the screen presents a full 13.5m × 3.12m high‑definition display. When closed, the screen folds flat into the building facade—blocking no natural light and preserving spatial transparency.
The mechanical opening/closing system utilizes industrial‑grade servo drives and high‑precision guide rails, ensuring smooth, quiet, and precise operation with every cycle.
4. Multi‑Layered Safety Protection
Given the high‑frequency usage in a commercial setting, JDStrong integrated multiple safety mechanisms into the mechanical structure—including travel limit protection, resistance‑sensing anti‑pinch systems, and emergency stop functionality—ensuring absolute operational safety over the long term.
4. Technical Highlights
Highlight 1: 13.5m Seamless Foldable Display
Achieving seamless folding across a 13.5‑meter display span demands exceptional precision in mechanical fabrication and assembly. JDStrong's proprietary precision folding hinge technology and strict tolerance control ensure the screen maintains flatness and visual consistency even after repeated opening and closing cycles.
Highlight 2: P2 HD Quality with Mechanical Motion
P2 (2mm pixel pitch) represents the standard for indoor HD display. Achieving P2‑level display precision on a foldable mechanical structure means the LED modules cannot shift or deform through repeated folding and unfolding—a significant test of structural design and material selection.
Highlight 3: Building‑Grade Durability
This foldable LED window system must withstand multiple daily opening/closing cycles, year‑round, in a commercial environment. JDStrong utilized industrial‑grade servo motors and high‑strength mechanical guide rails, with a mechanical structure design life exceeding 50,000 opening/closing cycles—ensuring long‑term operational reliability.
Highlight 4: Custom Engineering Delivery
From structural design and mechanical fabrication to LED module production, control system deployment, and on‑site commissioning, JDStrong provided a complete turnkey engineering service. This involved end‑to‑end project management across building structure assessment, mechanical solution design, control system customization, on‑site installation, and final commissioning.
5. Project Outcomes
1. Spatial Integration: The Display "Disappears" into the Architecture
In its closed state, the foldable LED window system blends seamlessly into the building facade—preserving spatial transparency and design integrity. The display is no longer "equipment hanging on the facade"—it is part of the architecture itself.
2. Visual Impact: Immersive Experience on a 13.5m Mega‑Screen
When deployed, the 13.5m × 3.12m P2 HD mega‑screen delivers stunning visuals. The 0mm visual seamless technology ensures image integrity and premium quality—perfectly aligned with the visual standards of high‑end brands.
3. Operational Efficiency: Front Maintenance Drastically Reduces Costs
The pure front maintenance architecture makes on‑site maintenance exceptionally simple—technicians can perform all operations from the front of the screen. This reduces both labor costs and downtime, while eliminating the need to damage interior finishes for maintenance access.
4. Brand Value: A Benchmark for Architectural‑Digital Integration
This project successfully demonstrates the deep integration of "architectural space" and "digital display"—providing a replicable model for visual upgrades in high‑end commercial spaces.
6. Further Reflections
Custom Mechanical Structure Design Is the Core Competency in High‑End Display Projects
As the standardized LED display market becomes increasingly competitive, custom mechanical structure design capability is emerging as the key differentiator between "ordinary screen suppliers" and "high‑end visual engineering solution providers."
JDStrong Technology's capabilities demonstrated in this project—spanning pure front maintenance architecture, 0mm visual seamless technology, and custom folding mechanical structures—represent the technical barrier built through years of deep expertise in the kinetic LED space.
For high‑end projects that demand both spatial aesthetics and visual impact, standard products rarely suffice. Only teams with deep custom engineering capabilities can strike the perfect balance between architectural space and digital display.
