SPKO-250
Kinetic Screen

SPKO-250

The SPKO-250 is an outdoor kinetic LED screen designed for rental, touring, and live event applications. Featuring a P3.9 pixel pitch, 248 × 248mm motion units, and a maximum extension stroke of 200mm, it combines LED visuals with precise Z-axis movement to create dynamic 3D visual effects with physical depth.

Features

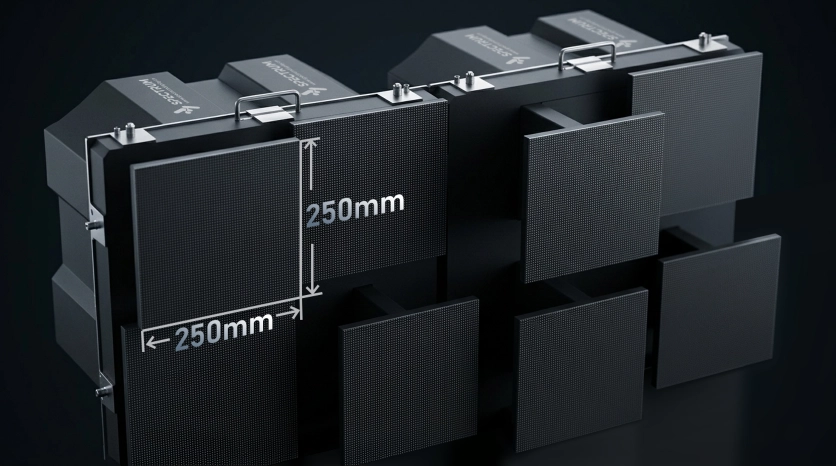

Precision Die-Casting, Efficient Deployment

Precision Die-Casting, Efficient Deployment

The SPKO-250 features a 250×250mm integrated precision die-casting cabinet structure, delivering excellent strength, stability, and installation efficiency. Its standardized modular design simplifies on-site assembly, shortens project delivery time, and provides a reliable solution for large-scale indoor kinetic LED screen applications.

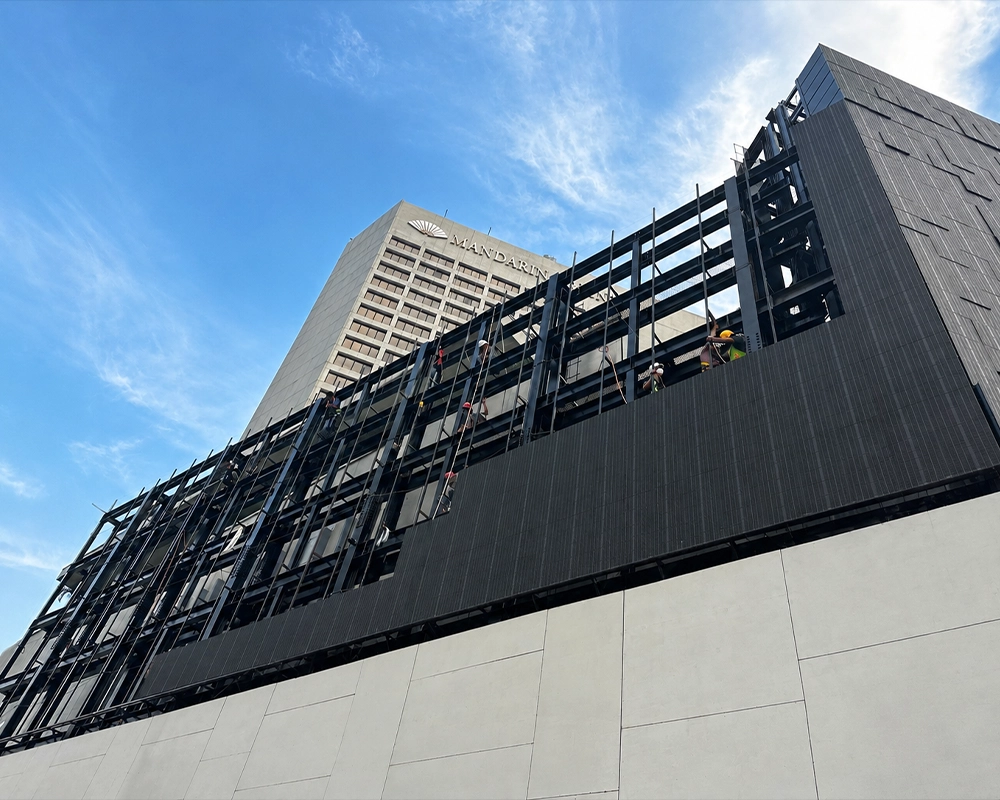

Outdoor Protection, Reliable Performance

Outdoor Protection, Reliable Performance

The SPKO-250 is engineered for outdoor rentals, touring productions, and live events, supporting reliable operation under changing outdoor conditions and frequent deployment. Its robust mechanical structure, die-cast aluminum cabinet, and stable LED display performance make it suitable for outdoor stages, music festivals, brand events, and touring applications, creating reliable kinetic visuals with physical depth.

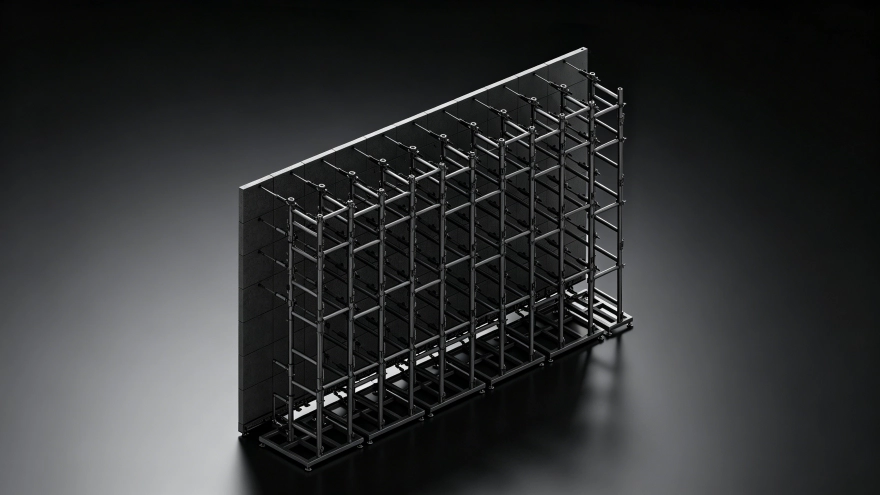

Integrated Quick Release, Easy Maintenance

Integrated Quick Release, Easy Maintenance

The SPKO-250 adopts an integrated modular design that enables quick removal and precise installation without complicated tools. Its efficient maintenance structure improves service efficiency while reducing long-term operation and maintenance costs.

Specification

Item

SPKO-250

Series

Outdoor 3D Kinetic LED Display

Model

SPKO-250

Pixel Pitch

P3.9

LED Module Size

248 × 248mm

Module Gap

2mm (1.0–2.0mm)

Visual Gap

2mm (Normal)

Motion Unit Size

248 × 248mm

Motion Unit Area

0.0615m²

Motion Unit Resolution

64 × 64

Cabinet Size

500 × 500mm (2 × 2 Motion Units)

Total System Depth

430mm (Including Service Space)

Cabinet Weight

17kg

Power Consumption per Cabinet

330W

Screen Brightness

≥4,500 nits

Maximum Extension Stroke

200mm

Maximum Extension Speed

500mm/s

Full Extension Time

0.5s

Motion Units per m²

16

Input Voltage

110/220V

Maximum Power Consumption

1,320W/m²

Anti-Pinch Release Force

3kg

Maintenance Method

Front and Rear Maintenance

Installation Method

Suspended, Stacked, Wall-Mounted, Top-Mounted

Enclosure Material

Die-Cast Aluminum

Application Environment

Outdoor
