Black Panther Series

Features

High Brightness Up to 10000 NITS

Our displays use a proprietary black base with low reflection that delivers high contrast with exceptional details.

Low Power Consumption, High Performance

Outdoor LED displays can save up to 45% or more energy compared to conventional display technologies.

3 to 5 Years Warranty

The long-term warranty period demonstrates the reliability and durability of the product, allowing users to use it steadily and avoid frequent repairs and part replacements. A 3-5 year warranty signifies our strong confidence in the product's quality.

IP65 Protection Rating

The IP65 rating ensures that the display is fully protected against dust and can withstand low-pressure water jets from any direction.

Specifications

Series

Black Panther Series
Outdoor High Brightness 320×160

Pixel Configuration

SMD1921

SMD2727

Pixel Pitch (mm)

4mm

5mm

6.67mm

8mm

10mm

No. of Modules per Unit Case (WxH)

3x6

Module Resolution (WxH)

80×40

64×32

48×24

40×20

32×16

Module Dimensions (WxHxD, mm)

320×160

Module Surface Area (m²)

0.0512

Weight per Square Meter (kg/m²)

35

Physical Pixel Density (pixels/m²)

62500

4000

22545

15625

10000

Flatness of Unit Case (mm)

±0.2

Unit Case Material

Die casting aluminum

Service Access

Rear

Max. Brightness

≥8000CD/m²

≥8000CD/m²

≥10000CD/m²

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140°

Visual Viewing Angle (Vertical)

140°

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000:1

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

600W/m²

Power Supply (V)

AC200~240

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

3840Hz

LED Lifetime (Half Brightness) 2)

100000

Operating Temperature (°C)

-20℃~+50℃

Operating Humidity

 10%~95%

 Protection Level

IP65

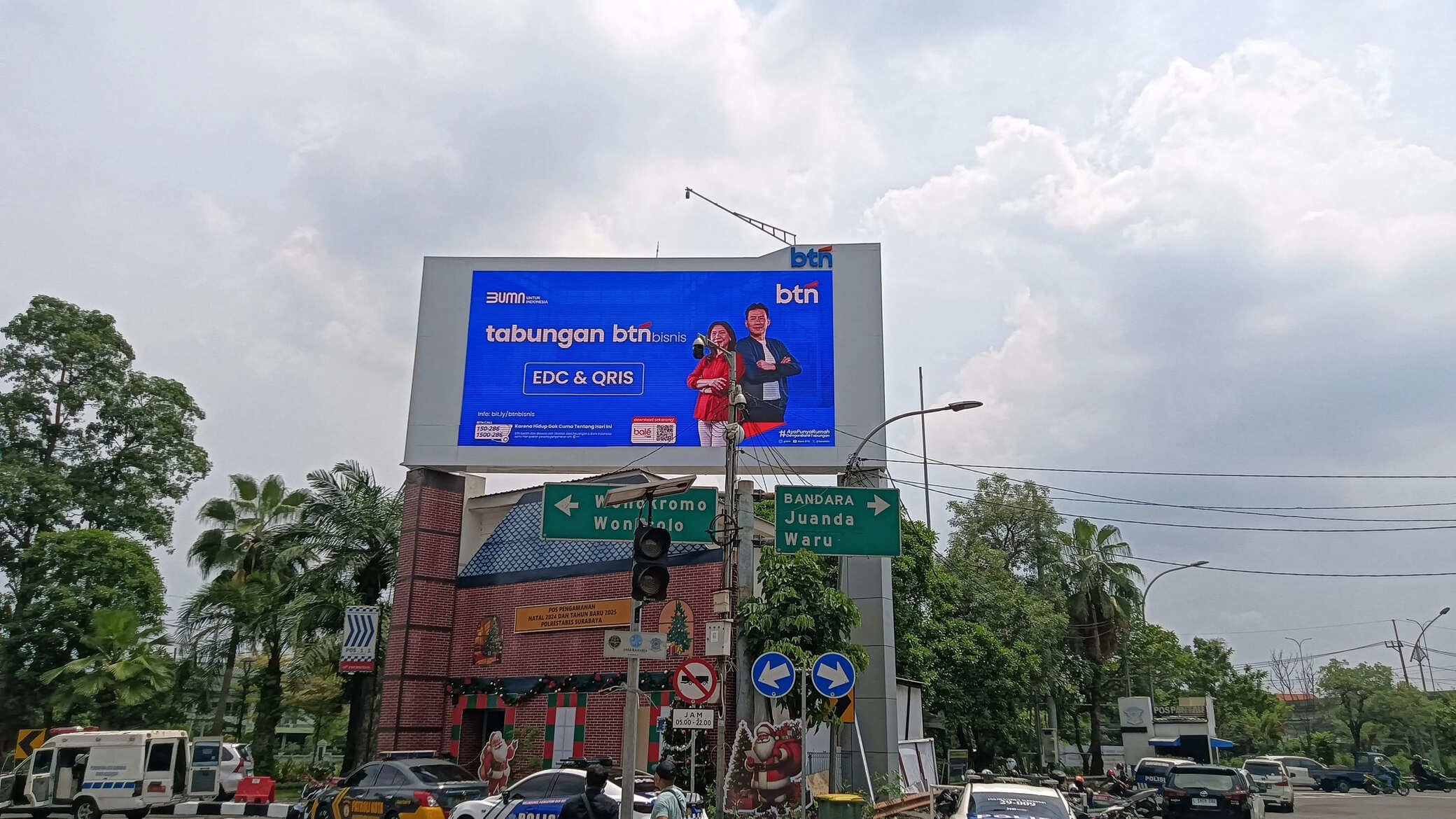

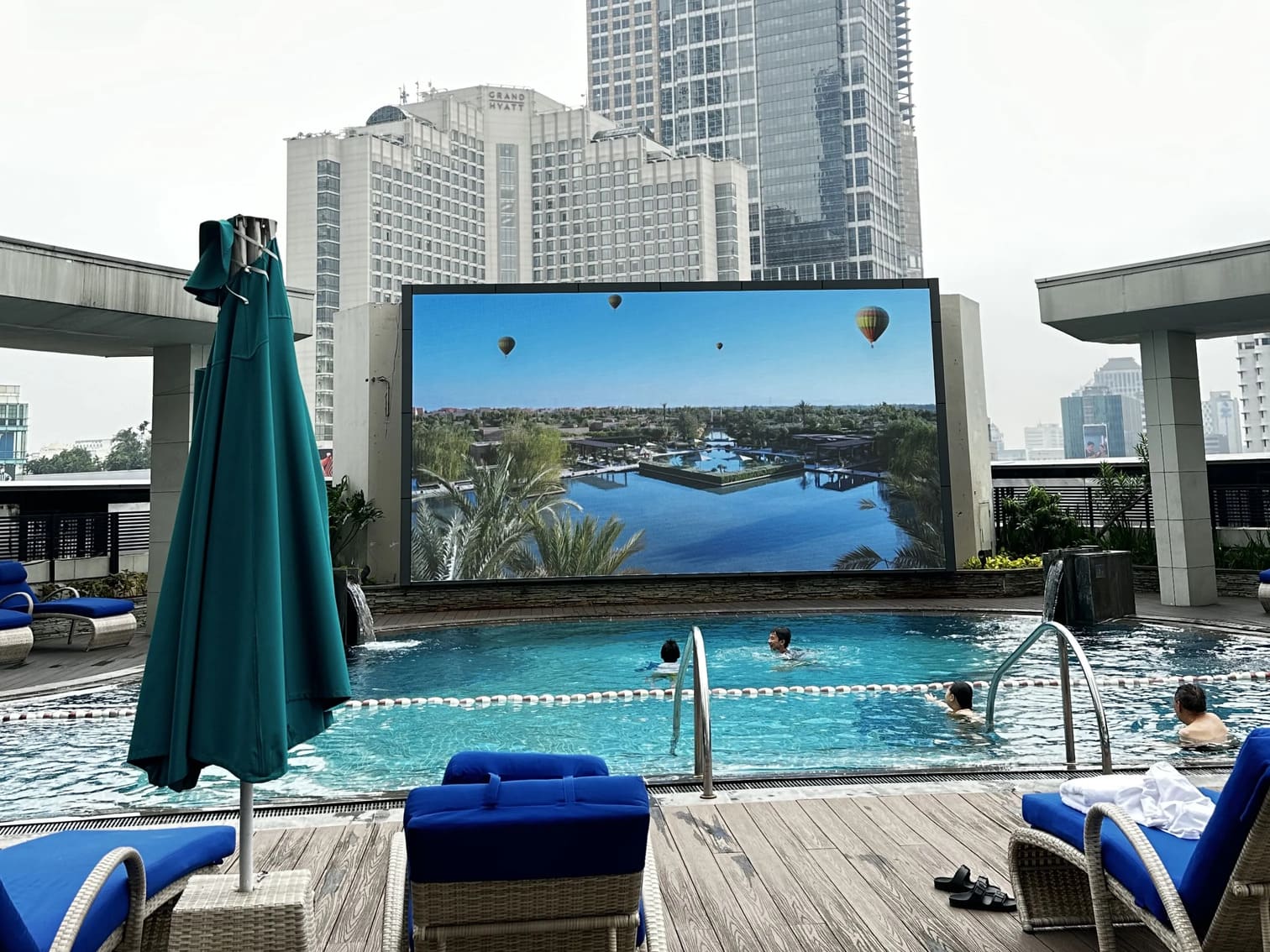

Our Projects
