Arctic Fox Series
CommercialFlexible LED Display Module
Commercial
Arctic Fox Series
Features
Harder than Traditional PCB
Compared to traditional PCB, it's harder. Flexible FPC circuit boards, made from insulating materials, resist compression and torsion, addressing display installation challenges in irregular spaces.
Flexible and Shapeable
With good ductility, it can be arbitrarily shaped.Plus, it also applies technology distributed scanning, 360-degree high-definition display, modular design, constant current static drive, bright true-color output, clear and jitter-free picture.
High Quality & Efficiency with Customizable Screen Shapes
With good ductility, it can be arbitrarily shaped.Plus, it also applies technology distributed scanning, 360-degree high-definition display, modular design, constant current static drive, bright true-color output, clear and jitter-free picture.
Easy and Fast Installation
LED flexible modules mainly use magnetic column suction for easy and fast installation. This method is as simple as traditional indoor screen setups, and quick joints on connection wires ensure a firm and effortless installation.
Specifications
Series | Arctic Fox Series - Soft LED Module , 320x160mm | ||||||
Pixel Configuration | SMD 3 in 1 | ||||||
Pixel Pitch (mm) | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
No. of Modules per Unit Case (WxH) | / | / | / | / | / | / | / |
Module Resolution (WxH) | 256x128 | 208×104 | 172×86 | 160×80 | 128×64 | 104×52 | 80×40 |
Module Dimensions (WxHxD, mm) | 320x160 | ||||||
Unit Case Surface Area (m²) | 0.05 | ||||||
Module weight (kg/m²) | 0.33 | ||||||
Physical Pixel Density (pixels/m²) | 640000 | 422753 | 289050 | 250000 | 160000 | 105688 | 62500 |
Flatness of Unit Case (mm) | ±0.2 | ||||||
Unit Case Material | / | / | / | / | / | / | / |
Service Access | Front | ||||||
Max. Brightness | ≥650CD/m² | ||||||
Color Temperature | 6500K | ||||||
Visual Viewing Angle (Horizontal) | 140 | ||||||
Visual Viewing Angle (Vertical) | 140 | ||||||
Brightness Uniformity | 95% | ||||||
Color Uniformity | ±0.015Cx,Cy | ||||||
Contrast Ratio | 5000 | ||||||
Processing Depth (bit) | 16bit | ||||||
Power Consumption (W/m², Max.) | 600W/m² | 400W/m² | |||||
Power Supply (V) | 100 to 240 | ||||||
Frame Rate (Hz) | 50 / 60 | ||||||
Refresh Rate (Hz) | 3840Hz | ||||||
LED Lifetime (Half Brightness) 2) | 100000 | ||||||
Operating Temperature (°C) | -20℃~+50℃ | ||||||
Operating Humidity | 10%~90% RH | ||||||

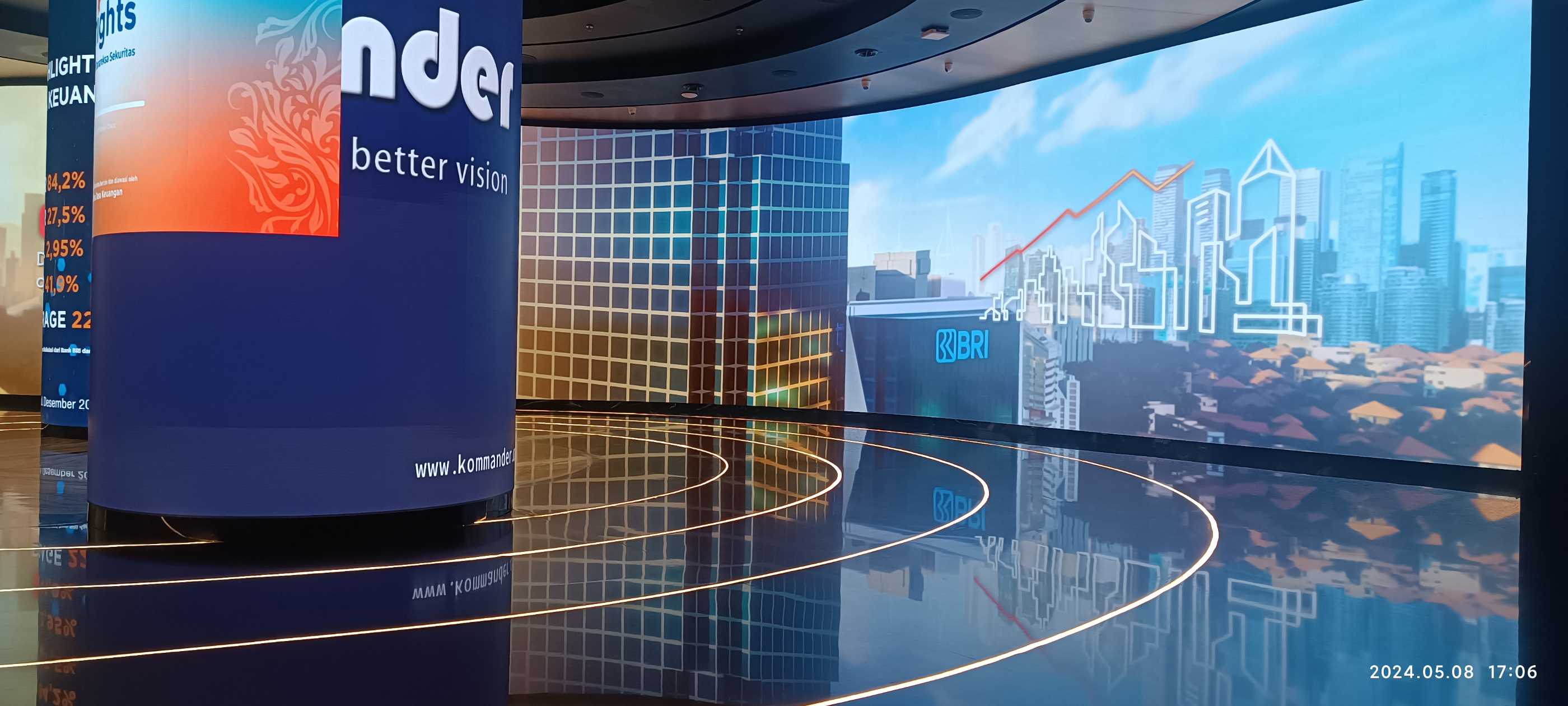

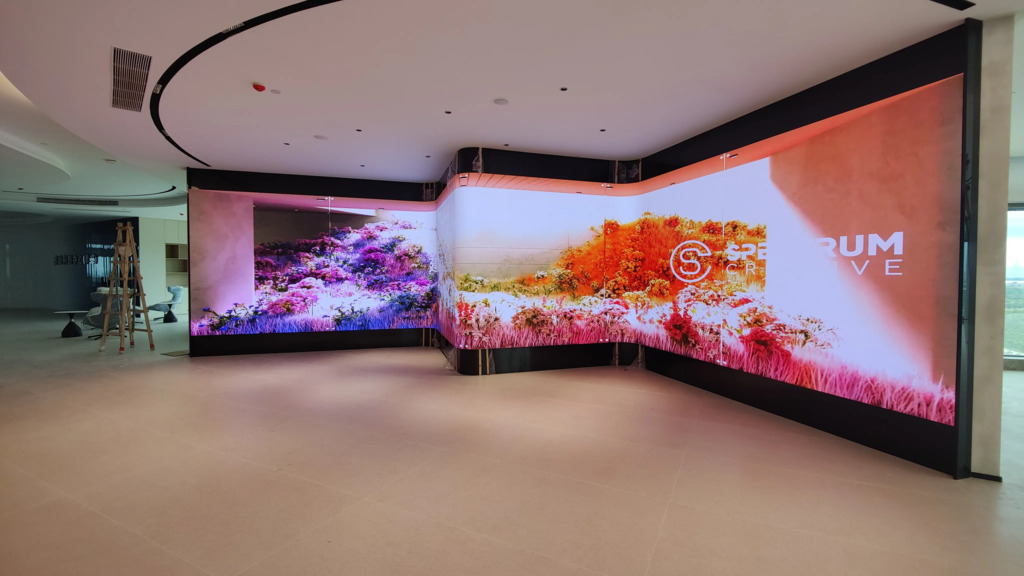

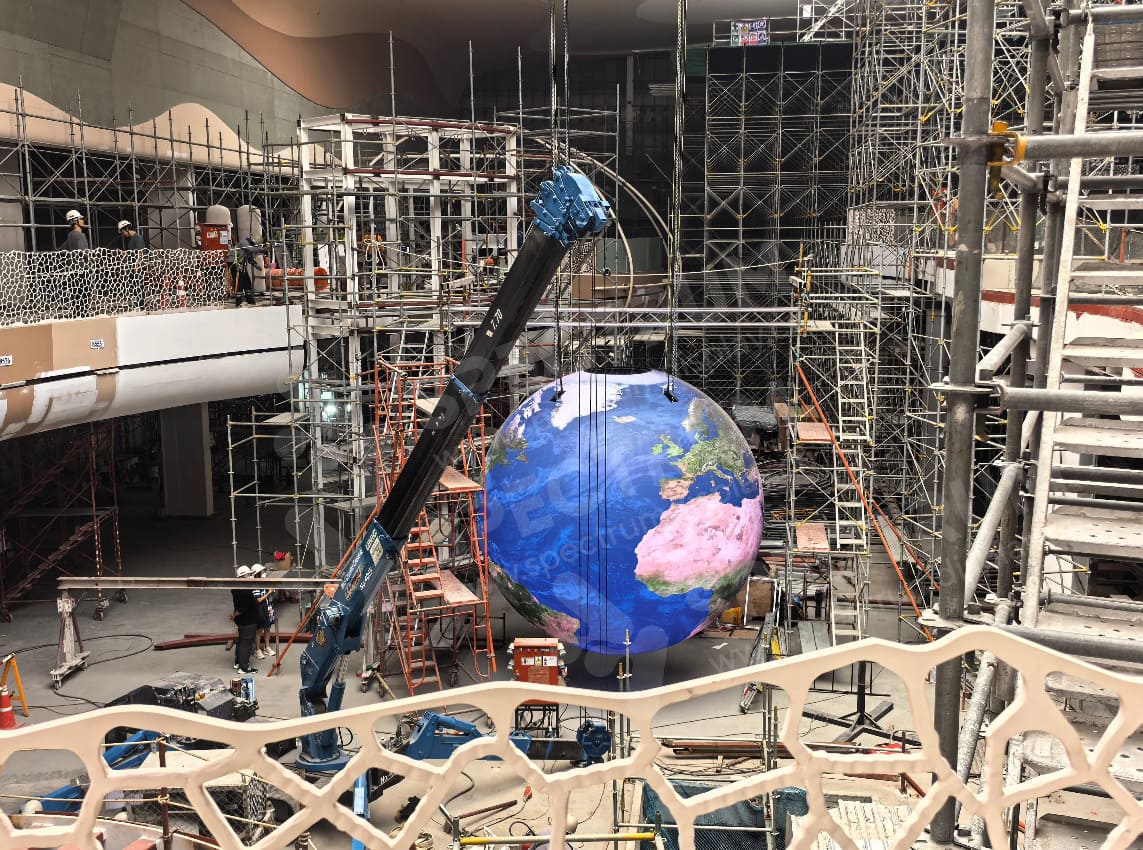

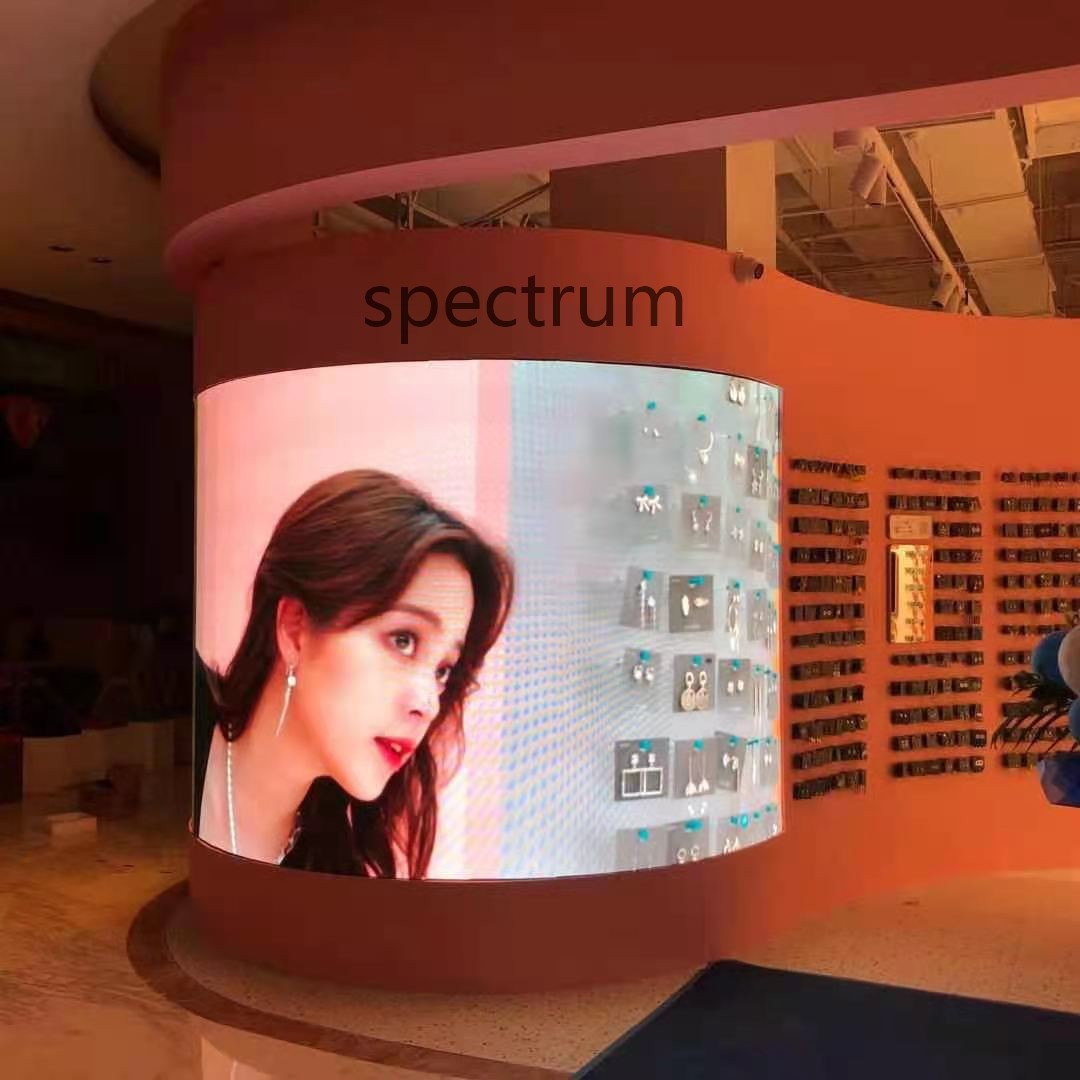

Our Projects
Explore our latest installations and success stories worldwide
