狮子系列
体育场LED显示屏秉承雄狮的力量与王者风范，我们的显示屏以绚丽画面与超凡清晰度，牢牢吸引全场目光。“狮子系列” 以创新之势震撼登场，彰显引领地位与卓越品质，呈现无可匹敌的显示效果。
Sports
狮子系列
特性

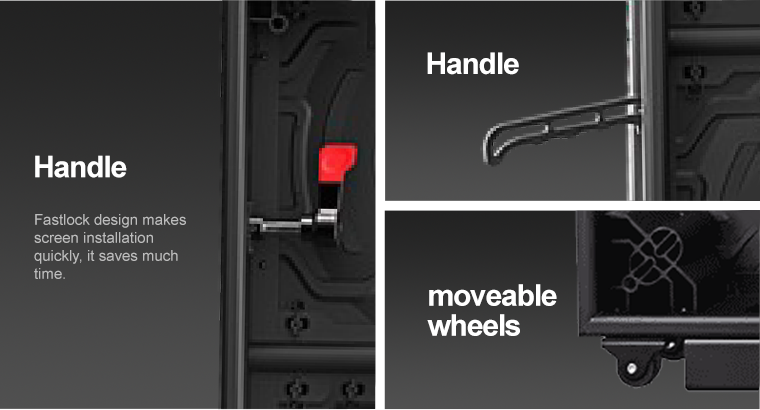

快锁结构设计
快锁结构设计，实现极速安装，大幅节省工时。

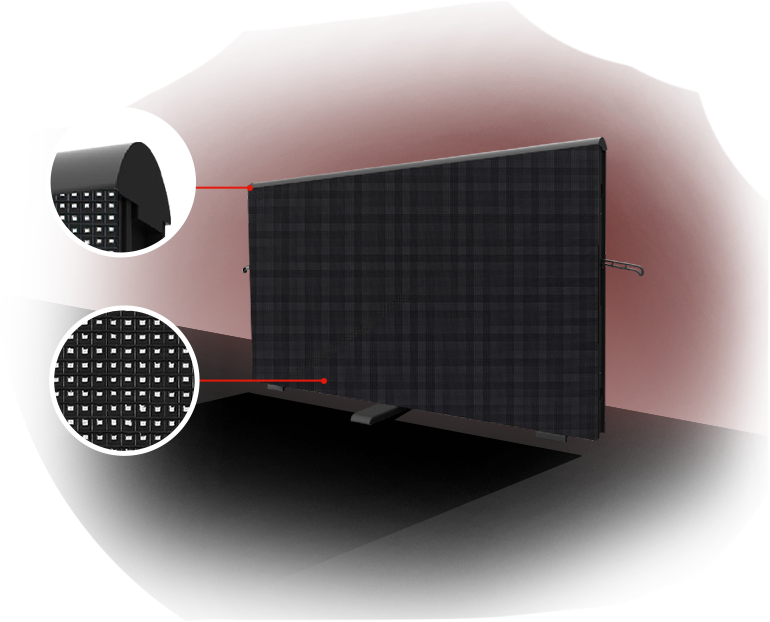

可定制设计
支持外观定制与 LED 灯珠选配，更好满足您的需求。

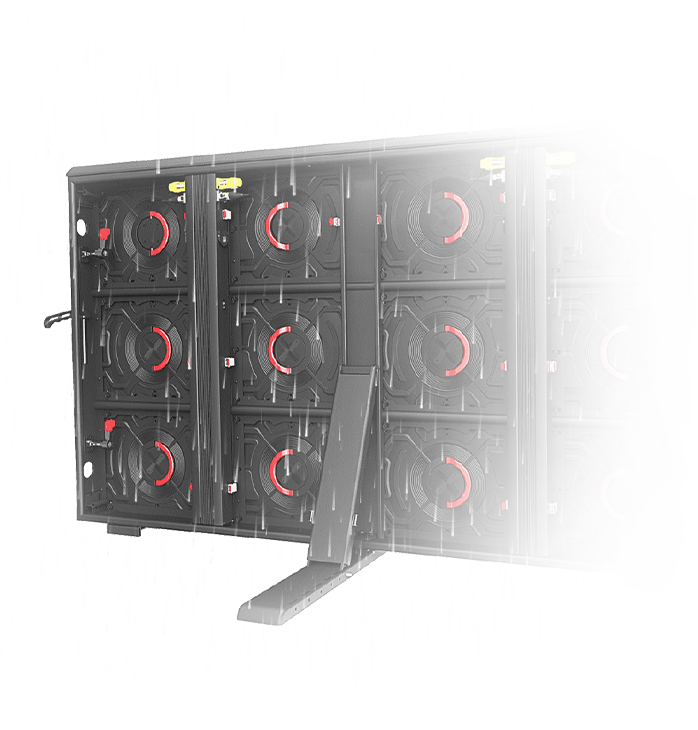

IP65 高防护等级
防水防尘，可适应户外各类恶劣天气环境。
电源与信号双备份
双备份设计，运行更稳定可靠，尤其适合户外场景使用。
规格
Series | Lion Series - Stadium LED Screen | ||
Pixel Configuration | SMD2727 | ||
Pixel Pitch (mm) | 6.25mm | 8.33mm | 10mm |
No. of Modules per Unit Case (WxH) | 4x3 | ||
Module Resolution (WxH) | 128X144 | 96X108 | 80X90 |
Module Dimensions (WxHxD, mm) | 1600X900X98 | ||
Module Surface Area (m²) | 1.44m² | ||
Weight per Square Meter (kg/m²) | 45kg | ||
Physical Pixel Density (pixels/m²) | 25600 | 14400 | 10000 |
Flatness of Unit Case (mm) | ≤0.1 | ||
Unit Case Material | Die-cast aluminum | ||
Service Access | Front & Rear maintenance | ||
Max. Brightness | 6500cd/m² | ||
Color Temperature | 6500-9000K | ||
Visual Viewing Angle (Horizontal) | 160° | ||
Visual Viewing Angle (Vertical) | 140° | ||
Brightness Uniformity | 95% | ||
Color Uniformity | ±0.015Cx,Cy | ||
Contrast Ratio | 5,000 | ||
Processing Depth (bit) | 16bit | ||
Power Consumption (W/m², Max.) | 800W/m² | ||
Power Supply (V) | AC90-264V | ||
Frame Rate (Hz) | 50 / 60 | ||
Refresh Rate (Hz) | 3840Hz | ||
LED Lifetime (Half Brightness) 2) | 100000 | ||
Operating Temperature (°C) | -20 ℃ ~ 60 ℃ | ||
Operating Humidity | 10%-85% RH | ||
Protection Level | IP65 | ||
