Kinetic

3D伸缩机械屏 160

特性

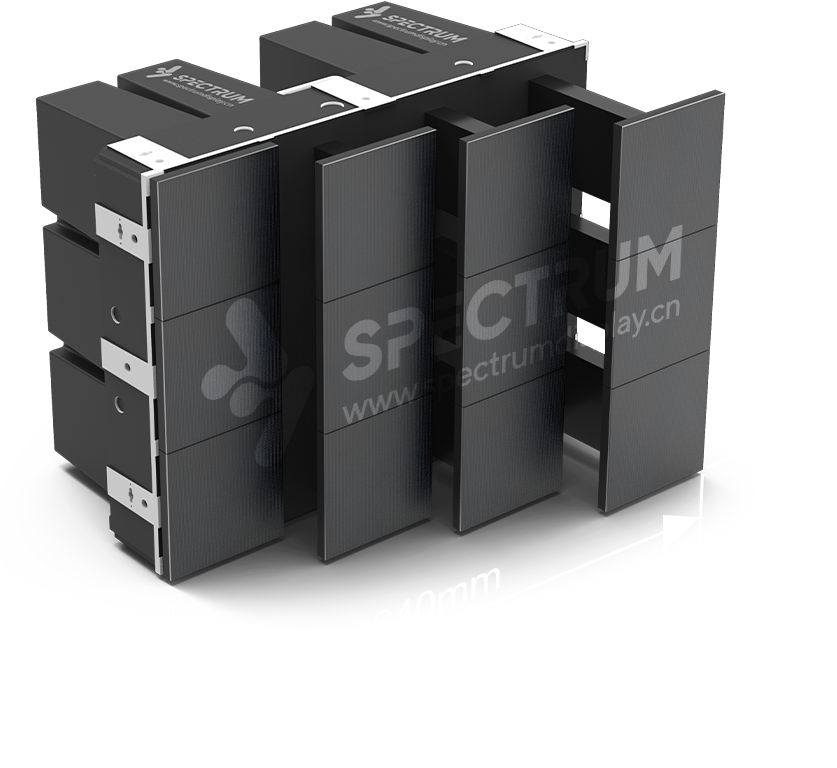

单元独立运动,平面 2D 秒变立体 3D。

单元独立运动,平面 2D 秒变立体 3D。

12 合 1 集成箱体,最大伸出长度可达 200mm,普通 2D 内容即可呈现震撼裸眼 3D 效果。

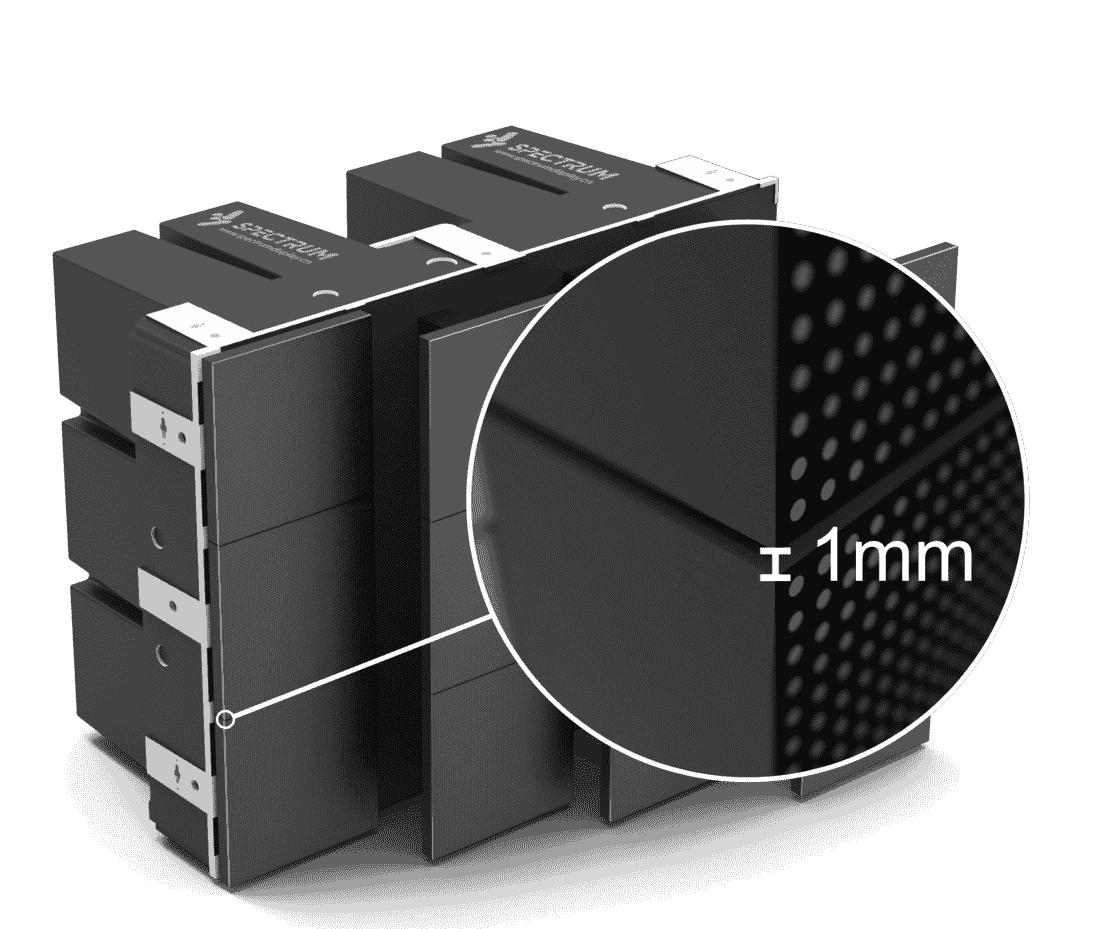

窄模组间距

1mm 超窄模组间距,带来极致无缝、完美流畅的观看体验。
窄模组间距
快锁结构 / 快锁设计

快锁结构 / 快锁设计

采用一体式快锁设计,无需工具,高效安装,适用于大型项目。

压铸铝制造箱体

压铸铝边框设计,使箱体重量更轻、平整度更高、使用寿命更持久。
压铸铝制造箱体
人性化操作软件,简化复杂内容制作。

人性化操作软件,简化复杂内容制作。

使用我们的 AE 插件,即可为建达强伸缩机械屏快速制作极具视觉冲击力的屏幕动态效果,全面支持 DMX512。

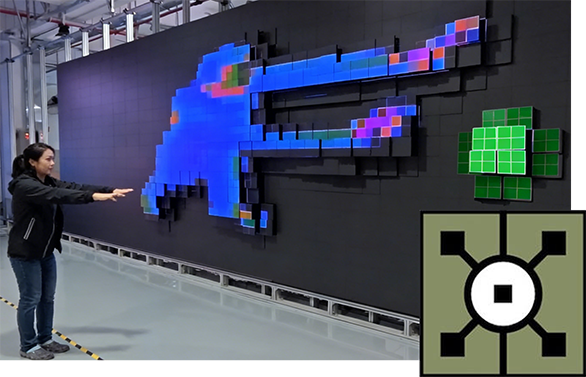

支持 TouchDesigner 生态系统

仅需少量代码开发,即可无缝集成实时交互、视觉识别与触控功能,完美适配互动游戏类应用场景。
支持 TouchDesigner 生态系统

规格

Series

  Indoor 3D Kinetic LED Display
160

  Outdoor 3D Kinetic LED Display
160

Model

160-I

500-O

Pitch

Indoor-P1.98

Outdoor-P10

LED Module Dimension(WxH)(mm)

160×160

495×245

Gap between Units(mm)

1(0.5~1.5)

5(3.5~6.5)

Motion Unit Dimension(WxH)(mm)

160×160 (0.0256m²)

    495×495 (0.25m²)

Resolution of Unit

80×80

48×48

Cabinet Dimension(Motion Units Qty)

640×480 (4×3)

    1000×1000 (2×2)

Cabinet Thickness(Standby mode)(mm)

320

   1400

Max. Forward Stroke(mm)

200

   600

Max. Forward Speed(mm/s)

300

   800

Min. Forward-back Cycle Time(s)

<0.7

  <1.5

Motion Qty per Sqm

39

  4

Weight per Sqm(Kg/m²)

80

  180

Max. Power Capacity(w/m²)

900

   1500

Power Supply Requirement

≤3KW:220V Single phase

≥3KW:380V Three phases/Five wires

    380V Three phases

  /Five wires

Screen Brightness(cd/m²)

≥700

≥7000

Ambient Temperature(℃)

0~40℃

 -10~60℃

IP Rating

IP40

         IP65

Environmental Attentions

No etchant gas, No inflammable gas, No oiled mist and dust

Heat Dissipation

Open self-cooling (with fan cooling)

Semi-closed Self-cooling  (with fan cooling)

我们的项目

探索我们全球最新的安装项目和成功案例

Outdoor 3D Kinetic LED Display P10 Project - Mandarin Oriental Jakarta, Indonesia

Outdoor 3D Kinetic LED Display P10 Project - Mandarin Oriental Jakarta, Indonesia

Jakarta, Indonesia

The Outdoor 3D Kinetic LED Display P10 project at Mandarin Oriental Jakarta, a 5-star hotel, is a striking mechanical retractable LED screen installation on the hotel's exterior. Located in the city center, this 900-square-meter display features mechanical retractable technology that creates dynamic real 3D visual effects, captivating passersby and encouraging them to stop and watch. It is ideal for showcasing high-end brand promotions, artistic visual performances, hotel event announcements, and immersive 3D content, perfectly aligning with the luxury positioning of the 5-star hotel while enhancing its visibility as a prominent urban landmark in Jakarta.

产品:3D Kinetic LED Screen 160
像素间距:P10.4
面积:614 square meters
应用场景:5-Star Hotel Exteriors, Urban Center Landmarks, Luxury Hospitality Venues, High-Profile Commercial Buildings, Dynamic Advertising Spaces
Indoor 3D Kinetic LED Display P1.5 Project - World Defense Show, Riyadh, Saudi Arabia

Indoor 3D Kinetic LED Display P1.5 Project - World Defense Show, Riyadh, Saudi Arabia

Riyadh, Saudi Arabia

The Indoor 3D Kinetic LED Display P1.5 project at the World Defense Show in Riyadh, Saudi Arabia, is the second mechanical retractable LED screen installation of its type. Covering 24 square meters, this display is integrated with corporate culture promotion, utilizing its mechanical retractable design to create dynamic telescoping visual effects. These effects are sleek and stunning, effectively attracting visitors to stop and watch. Boasting an ultra-fine P1.5 pixel pitch, the display delivers sharp, high-definition visuals, making it ideal for showcasing corporate technological prowess, core values, development milestones, and cutting-edge products in a striking manner. It enhances the appeal of corporate exhibits at the defense show, leaves a lasting impression on attendees, and strengthens the communication of corporate culture and brand image through a high-tech, engaging approach.

产品:3D Kinetic LED Screen
像素间距:P1.5
面积:24 square meters
应用场景:Defense Exhibitions, Military Industry Events, Corporate Showcase Zones, High-Tech Exhibition Spaces, International Defense Summits
Indoor 3D Kinetic LED Display P1.5 Project - Peking Culture Exhibition

Indoor 3D Kinetic LED Display P1.5 Project - Peking Culture Exhibition

Peking

The Indoor 3D Kinetic LED Display P1.5 project at the Peking Culture Exhibition is a mechanical retractable LED screen installation (Project 2 of such kind). Covering 48 square meters, this display seamlessly integrates with cultural promotion efforts, leveraging its mechanical retractable design to create dynamic telescoping visual effects. These effects not only captivate audiences and encourage them to stop and watch but also breathe new life into the presentation of Peking's cultural heritage—whether showcasing traditional artworks, historical stories, folk customs, or intangible cultural heritage. The ultra-fine P1.5 pixel pitch ensures sharp, high-definition imagery, making even the most delicate cultural details vividly visible. It is ideal for immersive cultural storytelling, interactive heritage displays, thematic exhibition narratives, and enhancing the appeal of cultural content, effectively bridging traditional culture with modern technology to deepen visitors' understanding and engagement with Peking's rich cultural legacy.

产品:3D Kinetic LED Screen
像素间距:P1.5
面积:48 square meters
应用场景:Cultural Exhibitions, Heritage Displays, Indoor Museums, Art Galleries, Cultural Promotion Venues
Indoor 3D Kinetic LED Display P1.5 Project - Middle East Event Show, Media Exhibition Hall, Riyadh

Indoor 3D Kinetic LED Display P1.5 Project - Middle East Event Show, Media Exhibition Hall, Riyadh

Riyadh, Saudi Arabia

The Indoor 3D Kinetic LED Display P1.5 project at the Middle East Event Show's Media Exhibition Hall in Riyadh is a state-of-the-art installation that redefines visual engagement. Covering 30 square meters, this display features a sophisticated mechanical retractable design, enabling dynamic 3D movements—expanding, contracting, and morphing to create captivating, multi-dimensional visual effects that transcend traditional flat screens. With an ultra-fine P1.5 pixel pitch, it delivers unparalleled clarity, ensuring high-definition content—from media industry innovations, digital storytelling, to cutting-edge tech demonstrations—appears crisp and lifelike, even in close viewing. Perfectly suited for the media exhibition hall, the display serves as a focal point, attracting attendees with its fluid motion and immersive visuals, while showcasing the intersection of technology and media, making it an ideal platform for launching new media products, sharing industry insights, and creating memorable interactive experiences for event participants.

产品:3D Kinetic LED Screen
像素间距:P1.5
面积:30 square meters
应用场景:International Events, Media Exhibition Halls, Tech Showcases, Industry Conferences, Digital Experience Zones
Global Rail Expo Moscow

Global Rail Expo Moscow

Moscow

3D kinetic LED display for Global Rail Expo Moscow, delivering dynamic visual effects and immersive experiences to showcase rail industry innovations.

产品:3D Kinetic LED Screen
像素间距:P1.9
面积:10 square meters
应用场景:Exhibitions
Indoor 3D Kinetic LED Display P1.9 Project - Hong Kong International Airport

Indoor 3D Kinetic LED Display P1.9 Project - Hong Kong International Airport

Hong Kong

The Indoor 3D Kinetic LED Display P1.9 installation at Hong Kong International Airport features a cutting-edge mechanical retractable screen, serving as a standout visual fixture within the bustling terminal. Spanning 20 square meters, this display leverages its innovative retractable mechanism to create fluid, dynamic movements—expanding, contracting, and reshaping to craft immersive 3D visual effects that break away from traditional static screens. The P1.9 pixel pitch delivers exceptional clarity, ensuring every detail of the content—whether flight updates, local cultural highlights, or promotional visuals—appears sharp and vibrant even up close. Designed to thrive in the high-traffic airport environment, the mechanical retractable system adds a layer of interactivity and surprise, capturing the curiosity of travelers and transforming wait times into engaging experiences. Its adaptive design allows seamless integration with the airport’s modern architecture, enhancing the space’s tech-forward aesthetic while providing a versatile platform for delivering information and entertainment.

产品:3D Kinetic LED Screen
像素间距:P1.9
面积:20 square meters
应用场景:Airport Terminals, Transportation Hubs, Passenger Lounges, Airport Public Zones, Travel Information Centers
Indoor 3D Kinetic LED Display P1.5 Project - InfoComm Exhibition, SpectrumDisplay Booth, USA

Indoor 3D Kinetic LED Display P1.5 Project - InfoComm Exhibition, SpectrumDisplay Booth, USA

USA

The Indoor 3D Kinetic LED Display P1.5 project, featured at our company booth during the InfoComm Exhibition in the USA , stands as a flagship demonstration of our technological prowess. Covering 30 square meters, this display is equipped with an advanced mechanical retractable system, enabling dynamic 3D movements—seamlessly expanding, contracting, and reshaping to craft stunning, immersive visual effects that set our booth apart in the bustling exhibition environment. Boasting an ultra-fine P1.5 pixel pitch, it delivers exceptional high-definition imagery, ensuring every detail of our product showcases, technical innovations, and brand narratives appears sharp, vivid, and impactful, even under close scrutiny by industry professionals. As a centerpiece of our booth, the display not only attracts a steady stream of visitors with its fluid motion and cutting-edge design but also serves as a powerful platform to highlight our company's expertise in LED technology, fostering meaningful interactions, and reinforcing our market position at one of the world's premier tech exhibitions.

产品:3D Kinetic LED Screen
像素间距:P1.5
面积:30 square meters
应用场景:International Trade Shows, InfoComm Exhibitions, Corporate Booths, Tech Product Showcases, Digital Experience Zones
