DOOH

老虎系列

特性

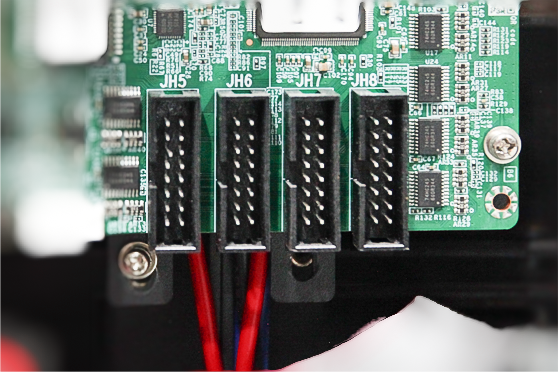

标准接口

标准接口

标准 5V 电源接口,16 针设计,可提供更大电流,满足图像显示高性能运行需求。

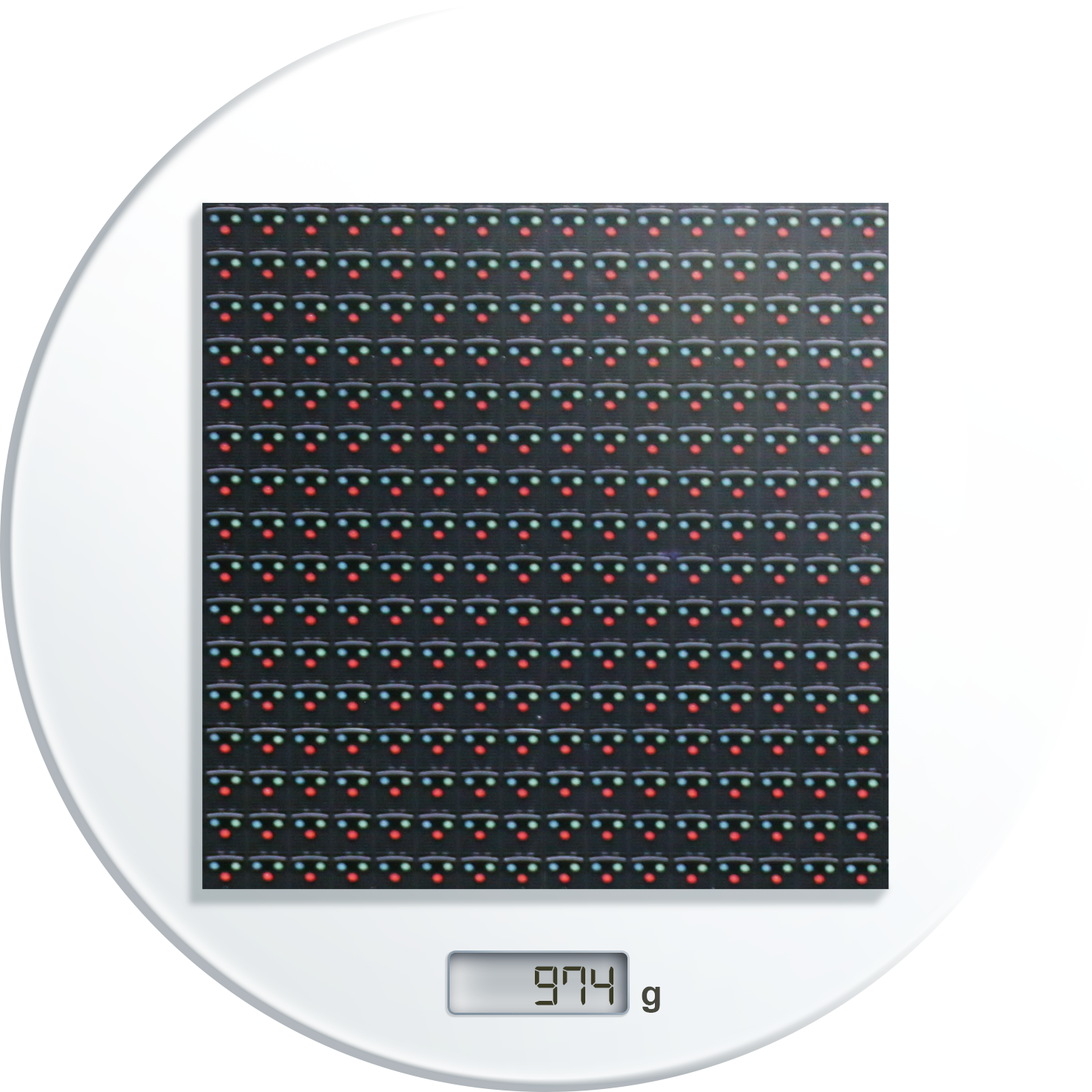

真材实料

单块模组重量仅 0.974 千克,材质坚固厚实,防护性能优异。
真材实料

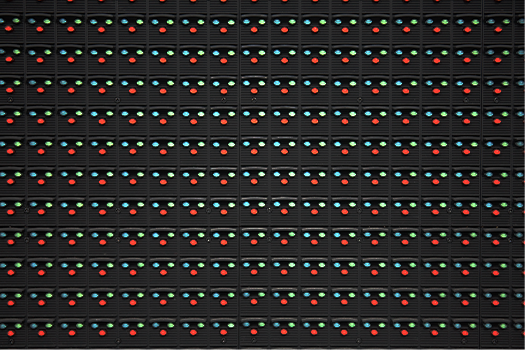

DIP 346 直插式 LED 灯珠

DIP 346 直插式 LED 灯珠

椭圆形灯珠色彩均匀、亮度高,亮度可达 8000cd/m²,耐腐蚀、不变形。

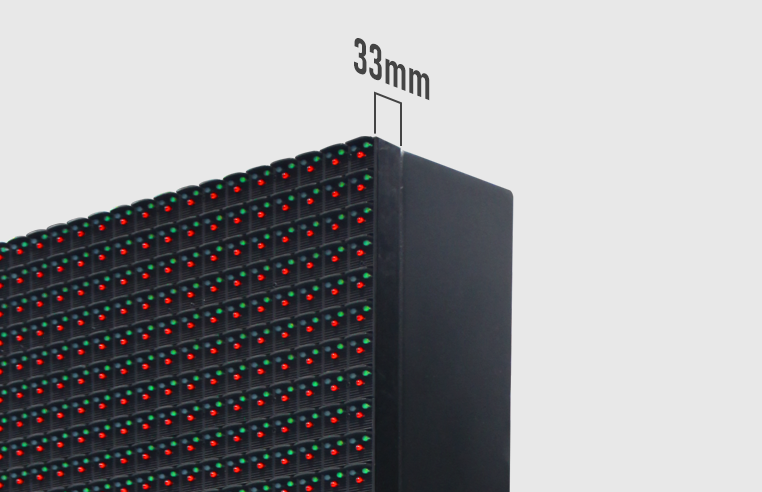

加厚外壳

虎系列户外 LED 显示屏采用加厚外壳结构,坚固耐用,具备出色的抗冲击、抗挤压与抗变形能力。优异的物理防护性能可有效延长模组使用寿命,适应各类复杂环境下的长期使用。
加厚外壳
高清显示,色彩逼真、画面清晰

高清显示,色彩逼真、画面清晰

通过精细化的模组细节优化,大幅提升画面对比度,使显示内容更清晰锐利、色彩更鲜活饱满。无论是动态视频还是静态画面,均可呈现卓越的视觉效果。

可定制场景化视角,按需灵活适配

针对场馆远视距广角、城市屏多方位观看等不同场景的核心需求,我们采用专属面罩设计,精准匹配最佳可视范围,确保在特定场景下呈现出色的观看体验。
可定制场景化视角,按需灵活适配
经久耐用、寿命长久,抗光老化、性能稳定

经久耐用、寿命长久,抗光老化、性能稳定

采用坚固模组结构与抗紫外线技术,确保强光环境下性能稳定,提升产品耐用性,实现超长使用寿命,降低长期维护成本。

规格

Series

Tiger Series - 960x960 Die-casting Cabinet, DIP

Pixel Configuration

DIP346

Pixel Pitch (mm)

10mm

16mm

20mm

No. of Modules per Unit Case (WxH)

3 x 6

4 x 4

3 x 6

Unit Case Resolution (WxH)

96×96

60×60

48×48

Unit Case Dimensions (WxHxD, mm)

960×960×160mm

1024×1024×160mm

960×960×160mm

Unit Case Surface Area (m²)

0.92

1.05

0.92

Weight per Square Meter (kg/m²)

48KG

56KG

48KG

Physical Pixel Density (pixels/m²)

289050

250000

160000

Flatness of Unit Case (mm)

±0.2

Unit Case Material

Iron

Service Access

Rear

Max. Brightness

>8000cd/m²

10000cd/m²

>8000cd/m²

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140

Visual Viewing Angle (Vertical)

170

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

320W/m²

400W/m²

320W/m²

Power Supply (V)

90 to 240

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

3840Hz

LED Lifetime (Half Brightness) 2)

100000

Operating Temperature (°C)

-20℃~+60℃

Operating Humidity

10%~90% RH

 Protection Level

IP65

我们的项目

探索我们全球最新的安装项目和成功案例

Tiger Series Outdoor DIP LED Display P10 Project - Adeer Tower, Saudi Dammam

Tiger Series Outdoor DIP LED Display P10 Project - Adeer Tower, Saudi Dammam

Dammam, Saudi Arabia

The Tiger Series Outdoor DIP LED Display P10 project at Adeer Tower in Dammam, Saudi Arabia, emerges as a striking urban landmark, with its approximately 2000-square-meter expanse making a bold statement in the cityscape. Featuring a P10 pixel pitch and DIP technology, the display ensures high brightness and robust weather resistance, delivering vivid, clear content—ranging from corporate branding and promotional campaigns to city-wide announcements—even under the intense Saudi sun and challenging desert conditions. Engineered for durability, the Tiger Series stands up to extreme temperature variations and sandstorms, guaranteeing reliable performance year-round. As a defining feature of Adeer Tower, this large-scale display enhances the building’s visibility, serving as a dynamic communication hub that engages residents, visitors, and businesses across the city, while redefining large-format outdoor visual experiences in the region.

产品:Tiger Series
像素间距:P10
面积: 2000 square meters
应用场景:Outdoor High-Rise Buildings, Commercial Towers, Urban Landmarks, Business Districts, Large-Scale Advertising Spaces
Tiger Series Outdoor DIP LED Display P10 Project - Jeddah, Saudi Arabia

Tiger Series Outdoor DIP LED Display P10 Project - Jeddah, Saudi Arabia

Jeddah, Saudi Arabia

The Tiger Series Outdoor DIP LED Display P10 project in Jeddah, Saudi Arabia, spans approximately 240 square meters and stands out as a striking visual landmark along the city’s main road. With P10 pixel pitch and DIP technology, the display delivers exceptional brightness and clarity, ensuring its content—whether brand advertisements, public service announcements, or event promotions—remains vivid and eye-catching even amid heavy traffic and the bright Saudi sunlight. Engineered to withstand the harsh outdoor conditions of Jeddah, including high temperatures and dust, the Tiger Series maintains reliable performance, making it a constant presence that captures the attention of passing motorists and pedestrians. Positioned on a major thoroughfare, this display leverages its prime location to maximize visibility, serving as a highly effective communication tool that enhances the urban landscape while driving engagement with its dynamic content.

产品:Tiger Series
像素间距:P16
面积:360 square meters
应用场景:Outdoor Main Roads, Urban Arteries, Commercial thoroughfares, Traffic Hubs, High-Visibility Advertising Zones
Bashundhara City Shopping Complex Outdoor DOOH LED Display

Bashundhara City Shopping Complex Outdoor DOOH LED Display

Dhaka, Bangladesh

The Tiger Series P10.0 outdoor LED display is deployed at Bashundhara City Shopping Complex in Bangladesh, a premier retail destination. Covering 65 square meters, this DOOH solution delivers high-impact visuals with P10.0 pixel pitch, ideal for showcasing brand advertisements, promotional campaigns, and mall events to attract shoppers and passersby. Engineered for outdoor durability, it features IP65 weather resistance, high brightness (≥6000nits) to ensure visibility in bright sunlight, and dustproof design to adapt to local environmental conditions. The Tiger Series display supports 24/7 stable operation and remote content management, allowing mall operators to quickly update ads and information, enhancing the shopping complex’s marketing efficiency and visual appeal as a key urban retail landmark.

产品:Tiger Series
像素间距:P10
面积:65 square meters
应用场景:Outdoor DOOH, Shopping Malls, Commercial Complexes, Urban Retail Areas
Tiger Series Outdoor DIP LED Display P10 Project - Sahara Oasis Mall, Saudi Arabia

Tiger Series Outdoor DIP LED Display P10 Project - Sahara Oasis Mall, Saudi Arabia

Saudi

The Tiger Series Outdoor DIP LED Display P10 project at Sahara Oasis Mall in Saudi Arabia is a dynamic visual solution designed to elevate the mall’s commercial appeal and engage visitors. With a P10 pixel pitch and DIP technology, the display delivers high brightness and clear imagery, ensuring vibrant content—such as brand advertisements, promotional events, store launches, and seasonal offers—remains striking even under intense sunlight. Built to withstand Saudi Arabia’s harsh climate, including extreme heat and dust, the Tiger Series guarantees long-term durability and consistent performance. Covering approximately 380 square meters, this display serves as a prominent focal point for the mall, attracting foot traffic, enhancing brand visibility, and creating an immersive shopping atmosphere that connects with shoppers and strengthens the mall’s position as a key retail destination.

产品:Tiger Series
像素间距:P10
面积:380 square meters
应用场景:Outdoor Shopping Malls, Commercial Plazas, Retail Hubs, Leisure Complexes, Public Gathering Spaces
Tiger Series Outdoor DIP LED Display P10 Project - Plaza Indonesia

Tiger Series Outdoor DIP LED Display P10 Project - Plaza Indonesia

Jakarta

The Tiger Series Outdoor DIP LED Display P10 project at Plaza Indonesia is a robust visual solution designed to thrive in the bustling urban environment of Jakarta. With a P10 pixel pitch and DIP technology, the display delivers high brightness and durability, ensuring clear, vivid content—from brand advertisements and event promotions to live feeds—even in direct sunlight or heavy foot traffic. Built to withstand Indonesia’s tropical climate, including high humidity and occasional rain, the Tiger Series guarantees reliable performance year-round. Covering around 200 square meters, this large-scale display serves as a key marketing and communication hub for Plaza Indonesia, attracting visitors with eye-catching visuals that enhance the plaza’s commercial appeal and keep the community informed and engaged.

产品:Tiger Series
像素间距:P10
面积:200 square meters
应用场景:Outdoor Plazas, Shopping Malls, Commercial Complexes, Urban Landmarks, Public Gathering Spaces
