豹系列
户外数字显示屏

豹系列

豹系列户外LED显示屏,以色彩鲜艳、高亮度、强光直射下仍具出色可视性著称,宛如雪山阳光下耀眼的豹,兼具IP65防水性能、清晰画质与高可靠性。

特性

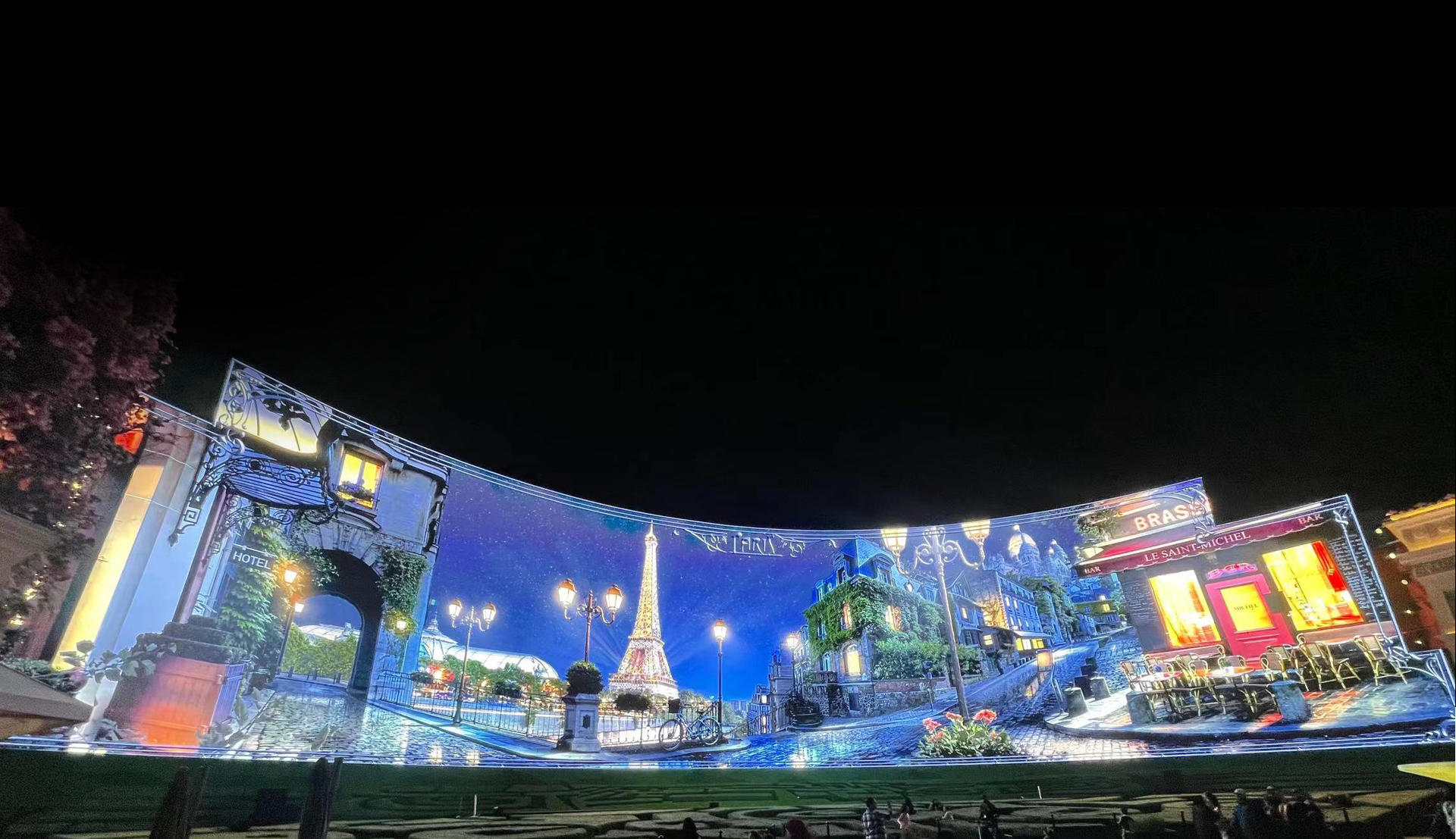

超广视角,画质如一

超广视角,画质如一

户外显示屏拥有超宽可视角度,各个观看方位都能够看清屏幕内容,保障每一位观看者都拥有舒适的观赏体验。有效强化视觉冲击力,各个角度画面画质稳定统一,搭配灵活的安装形式,在户外场景下实现更大覆盖范围,呈现出众的展示效果。

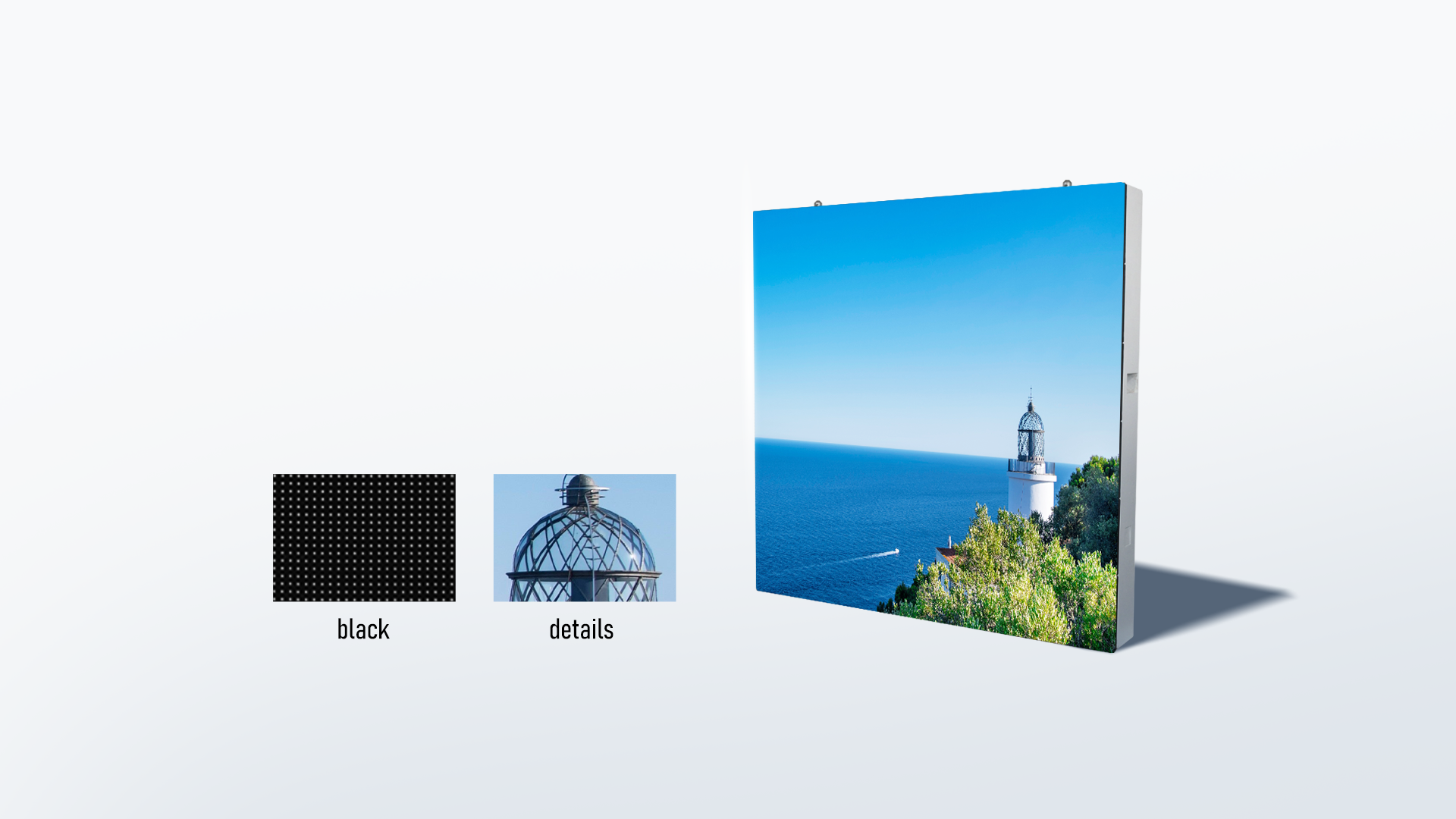

低反黑底,强光可视

低反黑底,强光可视

显示屏采用自研低反射黑底工艺,打造高对比度与细腻画质表现。户外亮度相较同类产品提升 50%‑100%,即便面对强烈日光直射或是远距离观看场景,依旧可以保证画面清晰通透,带来稳定优质的视觉输出。

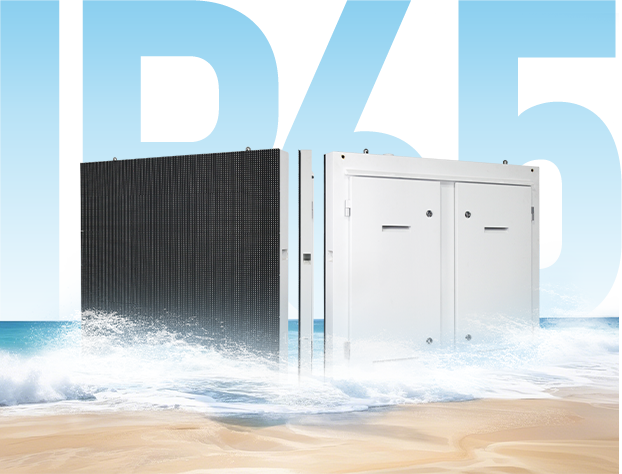

防尘抗水,全天防护

防尘抗水,全天防护

设备达到 IP65 防护等级,实现全面防尘,可抵御各个方向低压水流冲刷。面对高湿、盐雾多发的沿海环境,能够有效阻隔水汽与盐粒侵入内部元器件,守护硬件安全,支撑设备长期稳定不间断运行,有效提升整机耐候实用性能。

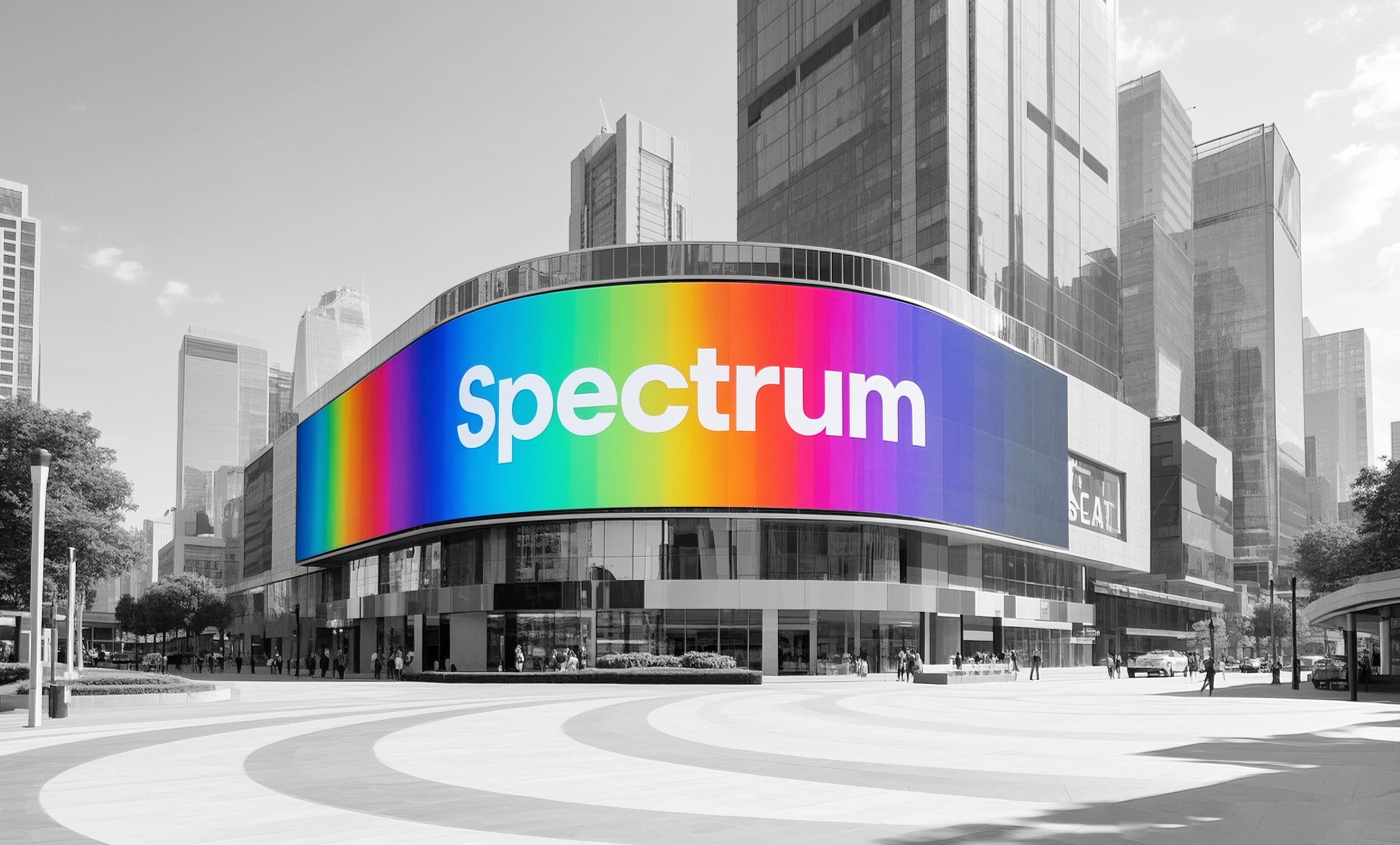

稳态架构,进阶画质

稳态架构,进阶画质

搭载静态扫描技术与模块化结构设计,大幅提升设备运行稳定性与可靠性。配合逐点校正技术,进一步优化画面清晰度与层次感,消除显示偏差,持续输出细腻优质的大屏显示效果。

规格

Series

Leopard SeriesOutdoor LED Display 320×160mm

Pixel Configuration

SMD1415

SMD1921

SMD2727

Pixel Pitch (mm)

2.5

3.33

4

5

6.66

8

10

No. of Modules per Unit Case (WxH)

3×6

Module Resolution (WxH)

128×64

96×48

80×40

64×32

48×24

40×20

32×16

Module Dimensions (WxHxD, mm)

320×160

Module Surface Area (m²)

0.0512

Weight per Square Meter (kg/m²)

30

Physical Pixel Density (pixels/m²)

160000

90180

62500

40000

22545

15625

10000

Flatness of Unit Case (mm)

±0.2

Unit Case Material

Die casting aluminum

Service Access

Rear

Max. Brightness

≥5500

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140°

Visual Viewing Angle (Vertical)

140°

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000:1

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

580W/m²

Power Supply (V)

AC 200~240V

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

7680Hz

LED Half-Brightness Lifetime

100000 Hours

Operating Temperature (°C)

-20℃~+50℃

Operating Humidity

10%~95%

Protection Level

Font IP65,Back IP54

我们的项目

探索我们全球最新的安装项目和成功案例

Leopard Series Regular Outdoor LED Display Wall P2.5 Project – Dubai Mall, Downtown Dubai, UAE

Leopard Series Regular Outdoor LED Display Wall P2.5 Project – Dubai Mall, Downtown Dubai, UAE

The Leopard Series Regular Outdoor LED Display Wall P2.5 project at Dubai Mall, Downtown Dubai, UAE, brings exceptional visual precision to one of the world’s most iconic shopping destinations. With a P2.5 pixel pitch, the display delivers ultra-clear, high-definition imagery that stands out even in the vibrant urban environment, making it perfect for showcasing luxury brand campaigns, event promotions, and immersive visual experiences. Engineered to thrive in Dubai’s outdoor conditions—including intense sunlight and high temperatures—the Leopard Series combines robust durability with energy efficiency, ensuring consistent performance year-round. Covering around 97 square meters, this display serves as a striking focal point, enhancing Dubai Mall’s allure by engaging visitors with vivid, detailed content that elevates the overall shopping and leisure experience in the heart of Downtown Dubai.

Dubai Mall
产品:
Leopard Series
像素间距:
P2.5
面积:
97 square meters
应用场景:
Outdoor Shopping Malls, Commercial Districts, Tourist Landmarks, Urban Plazas, Entertainment Centers
Leopard Series Regular Outdoor LED Display Wall P4 Project – School, Zhejiang, China

Leopard Series Regular Outdoor LED Display Wall P4 Project – School, Zhejiang, China

The Leopard Series Regular Outdoor LED Display Wall P4 project at a school in Zhejiang, China, is a durable and functional visual solution designed to enhance campus communication. With a P4 pixel pitch, the display delivers clear, bright content that remains visible in various weather conditions, making it ideal for showcasing school notices, event highlights, academic achievements, and educational propaganda. Built to withstand Zhejiang’s humid climate and seasonal changes, the Leopard Series ensures long-term reliability and stable performance. Covering around 20 square meters, this display serves as a key information hub, fostering better interaction between the school and its community—students, teachers, and parents—while integrating modern technology into the campus environment to support educational activities and campus management.

China
产品:
Leopard Series
像素间距:
P4
面积:
20 square meters
应用场景:
Outdoor School Areas, Educational Institutions, Campus Plazas, Public Notice Zones, Student Activity Spaces
Leopard Series Regular Outdoor LED Display Wall P4 Project for BLVD WORLD in Riyadh Saudi Arabia

Leopard Series Regular Outdoor LED Display Wall P4 Project for BLVD WORLD in Riyadh Saudi Arabia

The Leopard Series Regular Outdoor LED Display Wall P4 project at BLVD WORLD in Riyadh, Saudi Arabia, is engineered to deliver high-impact visual performance in demanding outdoor environments. With a P4 pixel pitch, the display wall offers excellent clarity and brightness, ensuring vibrant, visible content even under direct sunlight—perfect for showcasing event promotions, brand campaigns, live feeds, and immersive visual experiences. Built to withstand harsh weather conditions, the Leopard Series combines durability with energy efficiency, making it ideal for the dynamic atmosphere of BLVD WORLD. Covering around 200 square meters, this large-scale display serves as a striking landmark, attracting crowds and enhancing the overall visitor experience with its vivid, high-resolution imagery that stands out in the bustling urban landscape.

Riyadh
产品:
Leopard Series
像素间距:
P4
面积:
200 square meters
应用场景:
Outdoor Venues, Commercial Districts, Entertainment Complexes, Tourist Attractions, Public Plazas
