黑豹系列
户外数字显示屏

黑豹系列

黑豹系列户外 LED 显示屏采用坚固结构设计,具备卓越视觉效果,强光环境下依旧清晰亮丽。产品拥有优异防护性能与节能表现,可在各类户外场景中稳定持久运行。

特性

万级亮度,户外清晰

万级亮度,户外清晰

峰值亮度可达 10000cd/㎡,直面户外强光日光环境,画面依旧清晰鲜艳,无惧阳光直射干扰,保障户外场景下优质的视觉呈现效果。
高能低耗,效率升级

高能低耗,效率升级

对比传统显示技术,该系列户外屏功耗最高可降低 45%,在保持强劲显示性能的同时有效缩减能耗,兼顾出色画质与使用成本,实现高性能与低功耗二者兼备。
长效质保,后顾无忧

长效质保,后顾无忧

提供 3‑5 年长效质保服务,保障显示屏长期稳定可靠运行,减少后期故障维修与配件更换频次,降低项目后期运维顾虑,给项目带来坚实的售后保障。

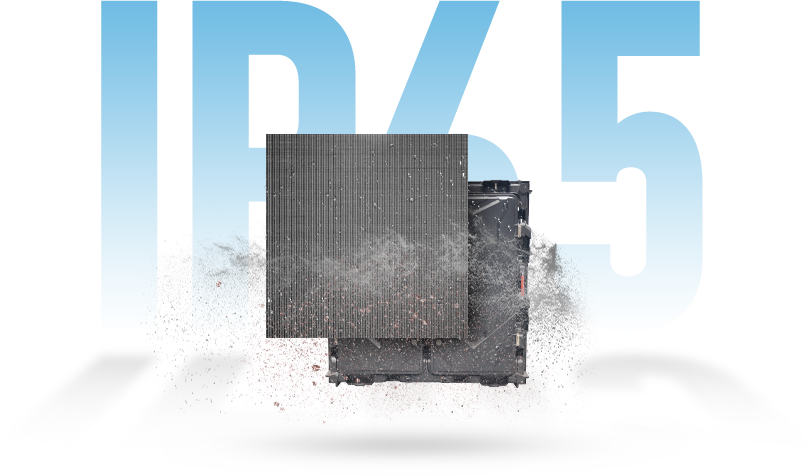

高规防护,无惧风雨

高规防护,无惧风雨

具备 IP65 高标准防护能力,实现全方位防尘防护,可抵御任意方向低压水流喷射,阻挡雨水、沙尘侵入机体内部,从容应对户外复杂多变的环境,保障设备长久耐用。

规格

Series

Black Panther Series Outdoor High Brightness 320×160

Pixel Configuration

SMD1921

SMD2727

Pixel Pitch (mm)

4

5

6.67

8

10

No. of Modules per Unit Case (WxH)

Module Resolution (WxH)

80×40

64×32

40×20

32×16

Module Dimensions (WxHxD, mm)

320×160

Module Surface Area (m²)

0.0512

Weight per Square Meter (kg/m²)

35

Physical Pixel Density (pixels/m²)

62500

4000

22545

15625

10000

Flatness of Unit Case (mm)

±0.2

Unit Case Material

Die casting aluminum

Service Access

Rear

Max. Brightness

≥8000CD/m²

≥8000CD/m²

≥10000CD/m²

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140°

Visual Viewing Angle (Vertical)

140°

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000:1

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

600W/m²

Power Supply (V)

AC200~240

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

7680Hz

LED Half-Brightness Lifetime

100000 Hours

Operating Temperature (°C)

-20℃~+50℃

Operating Humidity

10%~95%

Protection Level

IP65

我们的项目

探索我们全球最新的安装项目和成功案例

Outdoor LED Display - Hotel Indonesia Kempinski Jakarta Rooftop Pool Area

Outdoor LED Display - Hotel Indonesia Kempinski Jakarta Rooftop Pool Area

The Black Panther Series P4.0 outdoor LED display, covering 32 square meters, is strategically installed adjacent to the rooftop pool of Hotel Indonesia Kempinski Jakarta—one of Jakarta’s iconic luxury hospitality landmarks. Adopting **Nationstar Optoelectronics Gold Wire LED** as the core light-emitting component, this premium outdoor commercial display delivers exceptional color fidelity, high brightness consistency, and long-term operational stability, targeting the hotel’s high-end clientele and visitors. With P4.0 pixel pitch, it presents crisp, vibrant visuals even in bright daylight, while its high brightness (≥6000nits) ensures optimal visibility around the clock. Engineered with IP66 weather resistance, it withstands Jakarta’s tropical climate—including high humidity, occasional rainfall, and intense sunlight—ensuring stable long-term operation. The display features a sleek, low-profile design that blends seamlessly with the hotel’s upscale rooftop aesthetics, maintaining the venue’s premium leisure atmosphere. Supporting remote content management and smart brightness adjustment, the hotel’s operations team can flexibly update content to meet diverse business needs, making it a reliable visual asset that enhances the hotel’s commercial value and brand image.

Hotel Indonesia Kempinski Jakarta
产品:
Black Panther Series
像素间距:
P4
面积:
32 square meters
应用场景:
Outdoor Commercial Displays
Black Panther Series Outdoor DOOH LED Display - Surabaya Indonesia

Black Panther Series Outdoor DOOH LED Display - Surabaya Indonesia

The Black Panther Series P6.67 outdoor DOOH LED display, with an 8m×4m (32 square meters) size, is strategically deployed in Surabaya—Indonesia’s bustling commercial hub. Engineered for high-impact outdoor advertising, it combines the series’ core strengths of durability, high brightness, and stable performance, making it ideal for capturing the attention of pedestrians and motorists in high-traffic areas. With P6.67 pixel pitch, the display delivers clear, vivid visuals even from long distances, perfectly showcasing brand campaigns, product promotions, and public service announcements. It features IP66 weather resistance to withstand Surabaya’s tropical climate—including heavy rainfall, high humidity, and intense sunlight—while its high brightness (≥6500nits) ensures optimal visibility throughout the day. The Black Panther Series supports remote content management and real-time updates, allowing advertisers to flexibly adjust campaigns based on audience trends. As a premium DOOH solution, it integrates seamlessly into Surabaya’s urban landscape, enhancing brand exposure and becoming a key visual asset for businesses looking to tap into Indonesia’s vibrant consumer market.

Surabaya Indonesia
产品:
Black Panther Series
像素间距:
P6.67
面积:
32 square meters
应用场景:
Outdoor DOOH, Urban Commercial Areas, Shopping Malls, Traffic Hubs, Brand Advertising Billboards
Outdoor Roadside LED Billboard - Surabaya CBD Adjacent Main Road

Outdoor Roadside LED Billboard - Surabaya CBD Adjacent Main Road

The Black Panther Series P8.0 outdoor LED billboards are deployed along the main road adjacent to Surabaya's CBD, Indonesia, with a single-screen size of 2m×4m (8 square meters) and a total of 30 units forming a high-density advertising matrix. Positioned near the city’s core business district, these billboards target high-volume traffic of vehicles and pedestrians, delivering high-impact brand promotions, commercial campaigns, and urban public information. With P8.0 pixel pitch, the displays ensure clear, sharp visuals even at high speeds, while high brightness (≥6500nits) overcomes Surabaya’s intense tropical sunlight for 24/7 visibility. Engineered with IP66 weather resistance, they withstand heavy rainfall, high humidity, and dust, adapting perfectly to the local outdoor environment. The 30-unit deployment creates a continuous visual corridor along the CBD-adjacent main road, maximizing brand exposure and making it a premium advertising asset for businesses looking to capture the attention of Surabaya’s commercial and urban audiences. The Black Panther Series also supports remote content management, enabling advertisers to update ads in real time and optimize campaign efficiency.

Surabaya, Indonesia
产品:
Black Panther Series
像素间距:
P8.0
面积:
8.00 square meters * 30 units
应用场景:
Outdoor DOOH, Urban High-Traffic Advertising, Commercial Brand Promotion
