孔雀系列

特性

独特箱体工艺:轻量化设计

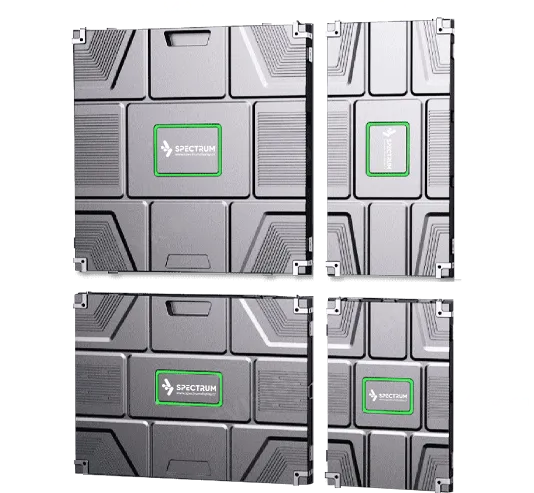

多种面板尺寸可定制
面板采用高强度合金材质设计。


节能技术

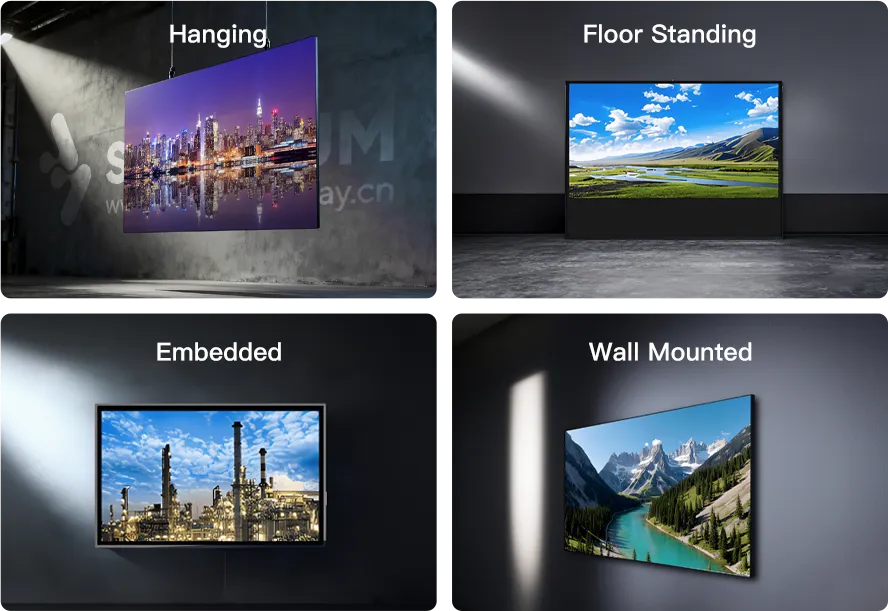

多种安装方式
- 吊装
- 立式安装
- 嵌入式安装
- 壁挂式安装

规格
Series | Peacock Series | ||||
Pixel Configuration | 3 in 1 SMD | ||||
Pixel Pitch (mm) | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm |
No. of Modules per Unit Case (WxH) | 2x3 | ||||
Module Resolution (WxH) | 256x128 | 208x104 | 172x86 | 160x80 | 128x64 |
Module Dimensions (WxHxD, mm) | 320x160 | ||||
Module Surface Area (m²) | 0.0512 | ||||
Weight per Square Meter (kg/m²) | 24 | ||||
Physical Pixel Density (pixels/m²) | 640000 | 422500 | 288906 | 250000 | 160000 |
Flatness of Unit Case (mm) | ±0.2 | ||||
Unit Case Material | Die casting aluminum | ||||
Service Access | Front | ||||
Max. Brightness | 600 | ||||
Color Temperature | 3200K-9300K | ||||
Visual Viewing Angle (Horizontal) | 140 | ||||
Visual Viewing Angle (Vertical) | 140 | ||||
Brightness Uniformity | 95% | ||||
Color Uniformity | ±0.015Cx,Cy | ||||
Contrast Ratio | 5000 | ||||
Processing Depth (bit) | 16 | ||||
Power Consumption (W/m², Max.) | 680 | ||||
Power Supply (V) | 100 to 240 | ||||
Frame Rate (Hz) | 50/60 | ||||
Refresh Rate (Hz) | 3840 | ||||
LED Lifetime (Half Brightness) 2) | 50000 | ||||
Operating Temperature (°C) | -20℃~+50℃ | ||||
Operating Humidity | 10%~95% | ||||
我们的项目
探索我们全球最新的安装项目和成功案例

Indonesian Parliament
IndonesiaHigh-precision Peacock Series indoor fine pitch LED display for Indonesian Parliament, delivering ultra-clear visuals and stable performance to support official meetings and presentations.

Huawei Shenzhen Bay Branch
Shenzhen, ChinaHigh-definition Peacock Series indoor fine pitch LED display for Huawei Shenzhen Bay Branch, offering crystal-clear visuals and reliable performance to enhance corporate communication and brand presentation.

Peacock Series Fine Pitch LED Display (P1.538) in Taiyuan, Shanxi Enterprise Exhibition Hall
Taiyuan, ShanxiLocated in an enterprise exhibition hall in Taiyuan, Shanxi, this project adopts the P1.538 model of the Peacock Series Fine Pitch LED display with a screen size of 6.4m × 3.6m. Leveraging the series' advantages of vivid colors and high resolution, it accurately presents the enterprise's image and product information. Equipped with a CNC die-cast aluminum cabinet, the display is ultra-thin and lightweight, supporting seamless splicing to meet the installation needs of the exhibition hall space. Combined with the characteristics of multiple installation methods and full front maintenance design, it balances display effect and operational convenience, creating an immersive and high-quality visual display scenario for the enterprise exhibition hall.

Canton Fair Registration Hall
Guangzhou, ChinaPremium Peacock Series indoor LED display for Canton Fair Registration Hall, providing clear visual guidance and high-brightness performance to facilitate visitor check-in and information acquisition.

Canton Fair Registration Hall
Guangzhou, ChinaPremium Peacock Series indoor LED display for Canton Fair Registration Hall, providing clear visual guidance and high-brightness performance to facilitate visitor check-in and information acquisition.

Canton Fair Zone B Entrance
Guangzhou, ChinaHigh-performance Peacock Series indoor LED display for Canton Fair Zone B Entrance, delivering vivid visuals and seamless splicing to guide visitors and showcase exhibition information effectively.

Riyadh Meeting Room
Riyadh, Saudi ArabiaHigh-precision Peacock Series indoor fine pitch LED display for Riyadh meeting room, delivering ultra-clear visuals and stable performance to support international business negotiations and video conferences.

Canton Fair Zone D Entrance
Guangzhou, ChinaHigh-performance Peacock Series indoor LED display for Canton Fair Zone D Entrance, delivering vivid visuals and seamless splicing to guide visitors and showcase exhibition information effectively.
