Egret Series -- 1000x250  Innovative Tablet Display

Pixel Configuration

3 in 1 SMD

Pixel Pitch (mm)

1.56mm

1.953mm

2.604mm

2.97mm

No. of Modules per Unit Case (WxH)

1x4/1x3/1x2

Unit Case Resolution (WxH)

160x640/160x480/160x320

128x384/128x384/128x256

96x384/96x288/96x192

84x336/84x252/84x168

Unit Case Dimensions (WxHxD, mm)

250x1000/250x750/250x500

Unit Case Surface Area (m²)

0.25/0.1875/0.125

Weight per Square Meter (kg/m²)

19.2/16.64/19.2

Physical Pixel Density (pixels/m²)

410881

262144

147456

112896

Flatness of Unit Case (mm)

±0.2

Unit Case Material

 Die Casting Aluminum

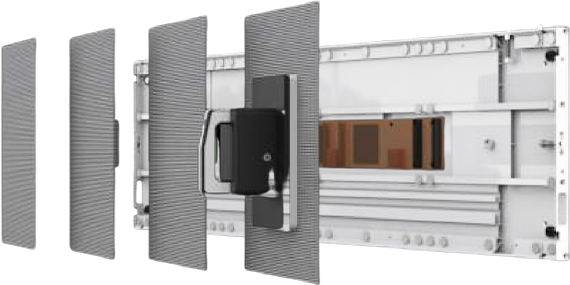

Service Access

Front

Max. Brightness

600-800

600-3000

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140

Visual Viewing Angle (Vertical)

120

Brightness Uniformity

0.95

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000

Processing Depth (bit)

16

Power Consumption (W/m², Max.)

500

Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3840

LED Lifetime (Half Brightness) 2)

100,000

Operating Temperature (°C)

 -20 ℃ to 50 ℃

Operating Humidity

10-80% RH

 Protection Level

Idoor IP30, Outdoor IP65
