SPKO-320
Kinetic Screen

SPKO-320

SPKO-320 is an outdoor kinetic screen for close-viewing, large-format LED upgrades. Its 650mm total depth includes service space, adding dynamic 3D motion with minimal structural changes.

Features

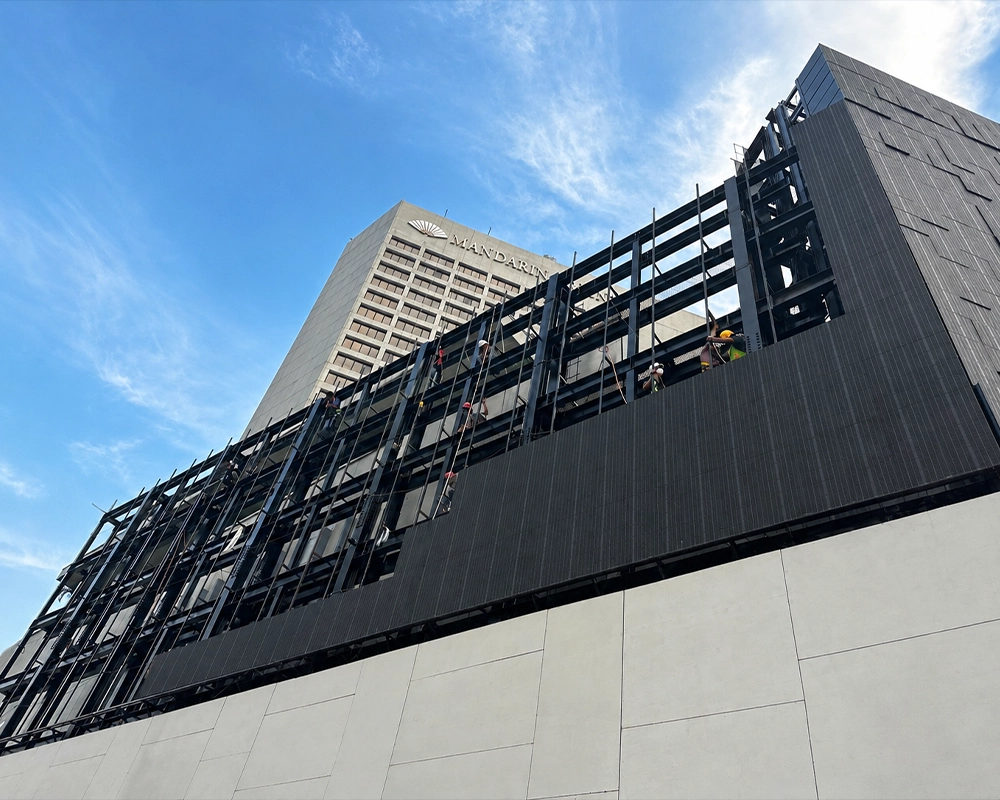

Outdoor Protection, Durable Performance

Outdoor Protection, Durable Performance

High-grade outdoor protection with excellent water and dust resistance handles complex outdoor environments with ease. A robust mechanical structure and proven LED display performance suit building facades, commercial plazas and urban public spaces, delivering all-weather dynamic visuals for outdoor projects.
400mm Stroke, Physical Depth

400mm Stroke, Physical Depth

Motion units achieve a maximum 400mm extension stroke, creating strong spatial layering on large outdoor displays and upgrading an ordinary outdoor screen into a dynamic art installation with genuine physical depth.
600mm/s High-Speed Motion

600mm/s High-Speed Motion

Maximum extension speed reaches 600mm/s, with a full stroke completed in approximately 1 second. The system receives and responds to content commands rapidly, delivering a rhythmic and highly impactful outdoor kinetic performance.
Resistance Sensing, Anti-Pinch Protection

Resistance Sensing, Anti-Pinch Protection

The motion unit continuously detects external force. When abnormal resistance exceeding 6 kg is identified, the anti-pinch mechanism engages immediately and halts movement, avoiding collision risks to people and equipment in public outdoor spaces.
Compatible Retrofit, Screen Renewal

Compatible Retrofit, Screen Renewal

A compact installation depth supports stacked and wall-mounted installation. Projects can reuse the existing building structure and steel framework without major civil works, making it easy to upgrade conventional outdoor flat LED screens to dynamic kinetic displays.

Specification

Item

SPKO-320

Series

Outdoor 3D Kinetic LED Display

Model

SPKO-320

Default LED Module Specification

Outdoor P5

LED Module Size (W × H)

317 × 317mm

LED Module Gap

3mm (2.5–3.5mm)

Visual Gap

0mm (LED Chip Relocation: 1.5mm)

Motion Unit Size (W × H)

320 × 320mm

Motion Unit Area

0.1024 m²

Motion Unit Resolution

64 × 64 pixels

Cabinet Size

640 × 960mm (2 × 3 units)

Cabinet Thickness

650mm (Including service space)

Cabinet Weight

100kg

Cabinet Power Consumption

900W

Screen Brightness

≥5,000 cd/m²

Maximum Extension Stroke

400mm

Maximum Extension Speed

600mm/s

Full Extension Time

1s

Motion Units per m²

9.77 units

Weight per m²

162.8kg/m²

Maximum Power Consumption per m²

1,465.5W/m²

Anti-Pinch Release Load

6kg

Maintenance Method

Rear Maintenance

Installation Method

Stacked, Wall-Mounted

Cabinet Material

Steel Structure with Precision Machining

Power Supply Requirement

Three-phase five-wire 380V

Cooling Method

Semi-enclosed natural convection with auxiliary fan cooling

Operating Temperature

-10 to 60°C

Operating Humidity

Rainproof; ≤95% RH (condensation allowed)

Working Environment

Outdoor; free from corrosive & flammable gases, oil mist and dust
