SPKI-250
Kinetic Screen

SPKI-250

SPKI-250 is a large-format, lightweight indoor kinetic screen for large or elevated projects. Its 248.5 × 248.5mm units and 500 × 500mm cabinet cover areas with fewer units and fast setup.

Features

Precision Die-Casting, Efficient Delivery

Precision Die-Casting, Efficient Delivery

The system is constructed entirely from 250mm × 250mm four-in-one independent die-cast aluminium cabinets. Precise physical dimensions combined with lightweight, high-strength materials remove the complexity and time cost of conventional screen installation. Whether configured as a seamless static wall or a dynamic three-dimensional matrix, the advanced linkage alignment system ensures accurate, efficient assembly, delivering creative spaces at exceptional engineering speed.
Integrated Quick-Lock, Snap-Fit Connection

Integrated Quick-Lock, Snap-Fit Connection

Rigid, secure connections are achieved without any auxiliary tools. High-strength alloy latches, combined with U-shaped handles on the cabinet top and edge alignment pins, snap into place for a flawless fit. This design balances extremely high installation efficiency with micron-level splicing accuracy, forming an ideal visual foundation for large commercial displays, stage productions and premium landmark projects.
Lightweight Structure, Lasting Stability

Lightweight Structure, Lasting Stability

High-strength die-cast aluminium craftsmanship and a lightweight cabinet design prevent structural deformation at the source. Outstanding physical stability delivers highly reliable assembly accuracy, maintaining a perfectly flush surface even across extremely large, continuously moving matrices.

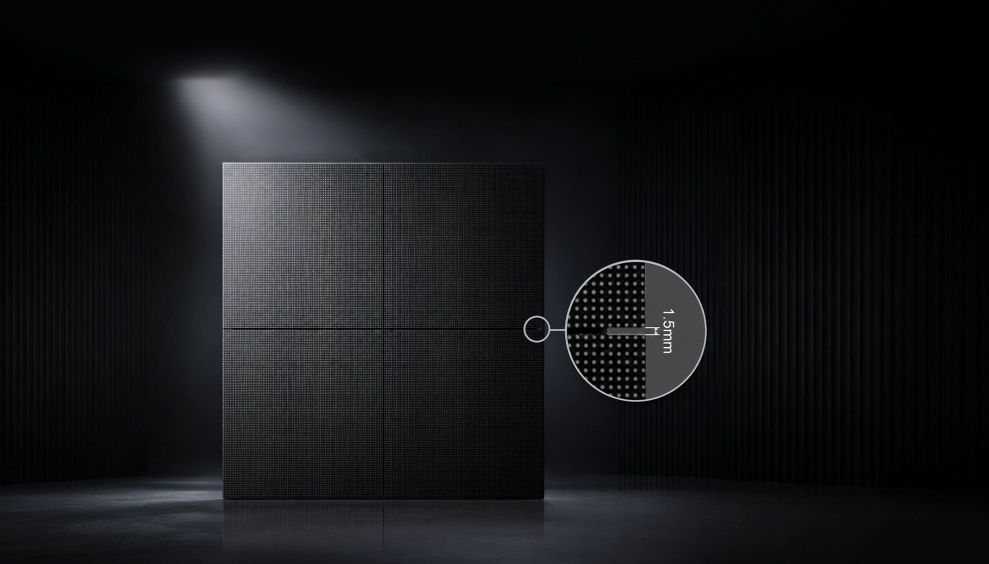

Linear Guide Rails, Millimetre Gaps

Linear Guide Rails, Millimetre Gaps

Industrial-grade high-precision linear guide rails are standard across the range, holding the physical gap between modules to within 1.5mm. Excellent straightness and motion smoothness eliminate the visual disruption caused by gaps, ensuring the entire kinetic screen maintains a silky-smooth, perfectly flat and unified appearance throughout frequent extension and offset movement.
Lightweight Structure, Flexible Relocation

Lightweight Structure, Flexible Relocation

A lightweight structural design purpose-built for high-frequency rental applications removes the heavy, cumbersome transport constraints of conventional screens. Exceptional portability and modular quick-installation logic allow a single person to assemble the screen by hand with great speed, readily meeting the demands of premium product launches, large-scale performances and touring exhibitions.
Streamlined Workflow, Unleashed Creativity

Streamlined Workflow, Unleashed Creativity

A highly integrated Adobe After Effects plug-in condenses complex 3D extension animation production to the absolute essentials. Native compatibility with the powerful interactivity of TouchDesigner and the industrial-grade control precision of DMX512 significantly shortens project production cycles while delivering sophisticated mechanical motion effects.
Multi-Level Noise Reduction, Silent Operation

Multi-Level Noise Reduction, Silent Operation

An advanced closed-loop stepper drive system eliminates mechanical resonance at the source through current control, reducing noise by as much as 70%. While supporting high-frequency, long-stroke extension of the motion modules, it creates a near-silent operating environment, perfectly suited to art exhibitions, high-end conferences and other indoor spaces with extremely stringent acoustic requirements.

Specification

Item

SPKI-250

Series

Indoor 3D Kinetic LED Display

Model

SPKI-250

Default LED Module Specification

Indoor P1.56 / P1.95 / P2.6

LED Module Size (W × H)

248.5 × 248.5mm

LED Module Gap

1.5mm (1.0–2.0mm)

Visual Gap

0.9mm (LED Chip Relocation: 0.3mm)

Motion Unit Size (W × H)

250 × 250mm

Motion Unit Area

0.0625 m²

Motion Unit Resolution

160 × 160 / 128 × 128 / 96 × 96 / 64 × 64 pixels

Cabinet Size

500 × 500mm (2 × 2 units)

Cabinet Thickness

330mm (Additional maintenance space required)

Cabinet Weight

13kg

Cabinet Power Consumption

180W

Screen Brightness

≥600 cd/m²

Maximum Extension Stroke

200mm

Maximum Extension Speed

500mm/s

Full Extension Time

0.5s

Motion Units per m²

16 units

Weight per m²

48kg/m²

Maximum Power Consumption per m²

720W/m²

Anti-Pinch Release Load

3kg

Maintenance Method

Rear Maintenance

Installation Method

Ceiling-Mounted (Downward-Facing), Stacked, Wall-Mounted, Upward-Facing

Cabinet Material

Die-Cast Aluminum

Power Supply Requirement

Single-phase 220V for total power below 3kW; three-phase five-wire 380V for total power above 3kW

Cooling Method

Open natural convection with auxiliary fan cooling

Operating Temperature

0 to 40°C (non-freezing)

Operating Humidity

Not rainproof; ≤70% RH (non-condensing)

Working Environment

Indoor; free from corrosive & flammable gases, oil mist and dust
