SPKI-160
Kinetic Screen

SPKI-160

SPKI-160 is an indoor kinetic screen balancing cost, visuals, and setup. With P1.98 pixel pitch, 160 × 160mm motion units, and a maximum 200mm stroke, it creates precise 3D Z-axis effects.

Features

Precision Pixels, Fine Detail Up Close

Precision Pixels, Fine Detail Up Close

A P1.98 pixel pitch and 80×80 pixel resolution per motion unit deliver clear, finely detailed imagery for corporate showrooms, exhibitions, brand spaces and other close-viewing applications.
200mm Stroke, Physical Depth

200mm Stroke, Physical Depth

A maximum 200mm extension stroke enables wave, protrusion and geometric deformation effects, giving conventional flat LED imagery a strong sense of spatial depth.
Rapid Drive, Silky-Smooth Motion

Rapid Drive, Silky-Smooth Motion

Motion units reach a maximum speed of 600mm/s and complete a full stroke in approximately 0.4 seconds, responding quickly and sensitively to content commands.

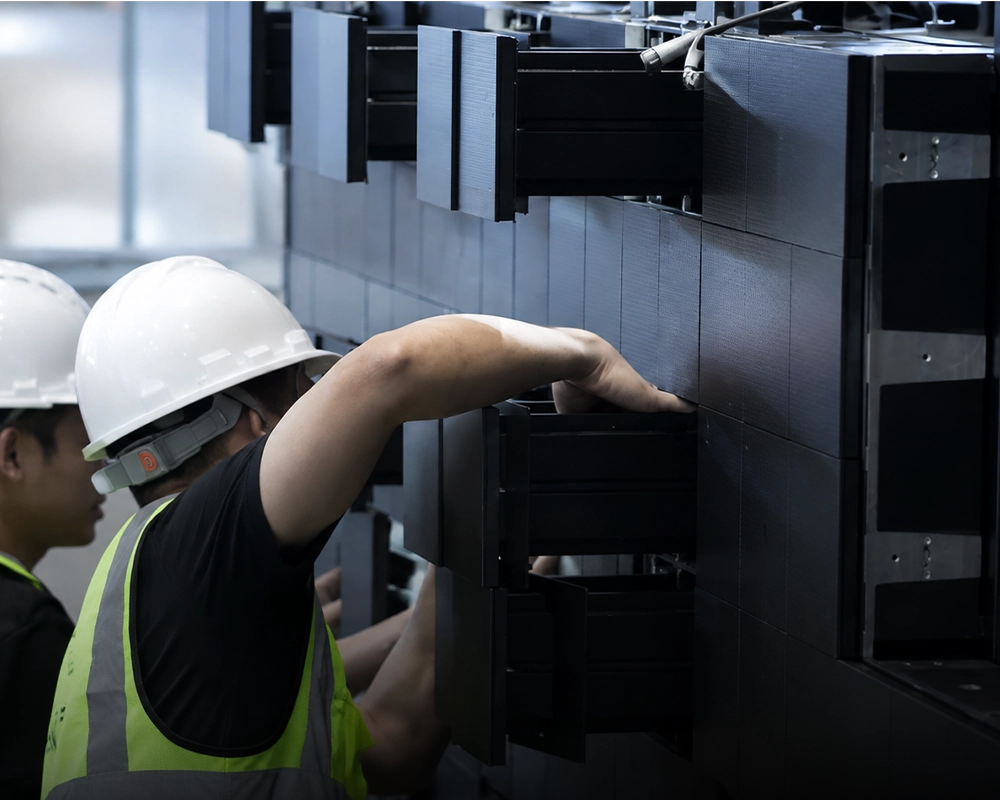

Front-Access Structure, Convenient Servicing

Front-Access Structure, Convenient Servicing

The front maintenance structure allows technicians to service motion units and components directly from the front of the screen, reducing the hard requirement for rear access space, ideal for space-constrained indoor projects.

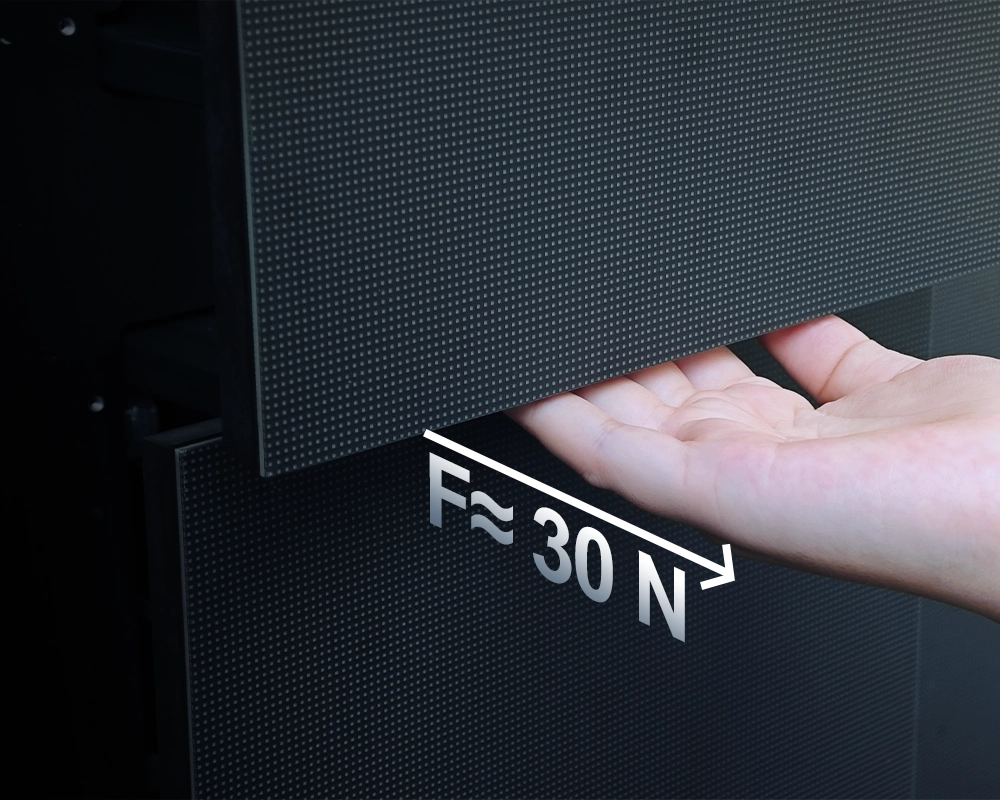

Resistance Sensing, Anti-Pinch Protection

Resistance Sensing, Anti-Pinch Protection

When the motion unit detects approximately 3 kg of resistance, the anti-pinch mechanism triggers immediately and halts movement, raising the safety level in showrooms, shopping malls and public interactive spaces.

Specification

Item

SPKI-160

Series

Indoor 3D Kinetic LED Display

Model

SPKI-160

Default LED Module Specification

Indoor P1.98

LED Module Size (W × H)

160 × 160mm

LED Module Gap

1mm (0.5–1.5mm)

Visual Gap

0.2mm (LED Chip Relocation: 0.4mm)

Motion Unit Size (W × H)

161 × 161mm

Motion Unit Area

0.0256 m²

Motion Unit Resolution

80 × 80 pixels

Cabinet Size

644 × 483mm (4 × 3 units)

Cabinet Thickness

330mm

Cabinet Weight

23.3kg

Cabinet Power Consumption

300W

Screen Brightness

≥600 cd/m²

Maximum Extension Stroke

200mm

Maximum Extension Speed

600mm/s

Full Extension Time

0.4s

Motion Units per m²

38.6 units

Weight per m²

74.9kg/m²

Maximum Power Consumption per m²

965W/m²

Anti-Pinch Release Load

3kg

Maintenance Method

Front Maintenance

Installation Method

Ceiling-Mounted (Downward-Facing), Stacked, Wall-Mounted, Upward-Facing

Cabinet Material

Die-Cast Aluminum

Power Supply Requirement

Single-phase 220V for total power below 3kW; three-phase five-wire 380V for total power above 3kW

Cooling Method

Open natural convection with auxiliary fan cooling

Operating Temperature

0 to 40°C (non-freezing)

Operating Humidity

Not rainproof; ≤70% RH (non-condensing)

Working Environment

Indoor; free from corrosive & flammable gases, oil mist and dust

Our Projects

Explore our latest installations and success stories worldwide

Indoor 3D Kinetic LED Display P1.5 Project - World Defense Show, Riyadh, Saudi Arabia

Indoor 3D Kinetic LED Display P1.5 Project - World Defense Show, Riyadh, Saudi Arabia

The Indoor 3D Kinetic LED Display P1.5 project at the World Defense Show in Riyadh, Saudi Arabia, is the second mechanical retractable LED screen installation of its type. Covering 24 square meters, this display is integrated with corporate culture promotion, utilizing its mechanical retractable design to create dynamic telescoping visual effects. These effects are sleek and stunning, effectively attracting visitors to stop and watch. Boasting an ultra-fine P1.5 pixel pitch, the display delivers sharp, high-definition visuals, making it ideal for showcasing corporate technological prowess, core values, development milestones, and cutting-edge products in a striking manner. It enhances the appeal of corporate exhibits at the defense show, leaves a lasting impression on attendees, and strengthens the communication of corporate culture and brand image through a high-tech, engaging approach.

Riyadh, Saudi Arabia
Product:
SPKI-160
Pixel Pitch:
P1.5
Area:
24 square meters
Application:
Defense Exhibitions, Military Industry Events, Corporate Showcase Zones, High-Tech Exhibition Spaces, International Defense Summits
Indoor 3D Kinetic LED Display P1.5 Project - Peking Culture Exhibition

Indoor 3D Kinetic LED Display P1.5 Project - Peking Culture Exhibition

The Indoor 3D Kinetic LED Display P1.5 project at the Peking Culture Exhibition is a mechanical retractable LED screen installation (Project 2 of such kind). Covering 48 square meters, this display seamlessly integrates with cultural promotion efforts, leveraging its mechanical retractable design to create dynamic telescoping visual effects. These effects not only captivate audiences and encourage them to stop and watch but also breathe new life into the presentation of Peking's cultural heritage—whether showcasing traditional artworks, historical stories, folk customs, or intangible cultural heritage. The ultra-fine P1.5 pixel pitch ensures sharp, high-definition imagery, making even the most delicate cultural details vividly visible. It is ideal for immersive cultural storytelling, interactive heritage displays, thematic exhibition narratives, and enhancing the appeal of cultural content, effectively bridging traditional culture with modern technology to deepen visitors' understanding and engagement with Peking's rich cultural legacy.

Peking
Product:
SPKI-160
Pixel Pitch:
P1.5
Area:
48 square meters
Application:
Cultural Exhibitions, Heritage Displays, Indoor Museums, Art Galleries, Cultural Promotion Venues
Indoor 3D Kinetic LED Display P1.5 Project - Middle East Event Show, Media Exhibition Hall, Riyadh

Indoor 3D Kinetic LED Display P1.5 Project - Middle East Event Show, Media Exhibition Hall, Riyadh

The Indoor 3D Kinetic LED Display P1.5 project at the Middle East Event Show's Media Exhibition Hall in Riyadh is a state-of-the-art installation that redefines visual engagement. Covering 30 square meters, this display features a sophisticated mechanical retractable design, enabling dynamic 3D movements—expanding, contracting, and morphing to create captivating, multi-dimensional visual effects that transcend traditional flat screens. With an ultra-fine P1.5 pixel pitch, it delivers unparalleled clarity, ensuring high-definition content—from media industry innovations, digital storytelling, to cutting-edge tech demonstrations—appears crisp and lifelike, even in close viewing. Perfectly suited for the media exhibition hall, the display serves as a focal point, attracting attendees with its fluid motion and immersive visuals, while showcasing the intersection of technology and media, making it an ideal platform for launching new media products, sharing industry insights, and creating memorable interactive experiences for event participants.

Riyadh, Saudi Arabia
Product:
SPKI-160
Pixel Pitch:
P1.5
Area:
30 square meters
Application:
International Events, Media Exhibition Halls, Tech Showcases, Industry Conferences, Digital Experience Zones
