SPFM-138P
Flip Matrix

SPFM-138P

The SPFM-138P combines three-sided flipping with LED video. Each m² has 36 independent units: one P10.42 LED face with 14 × 14 pixels, plus two custom faces for colors, patterns, or materials.

Features

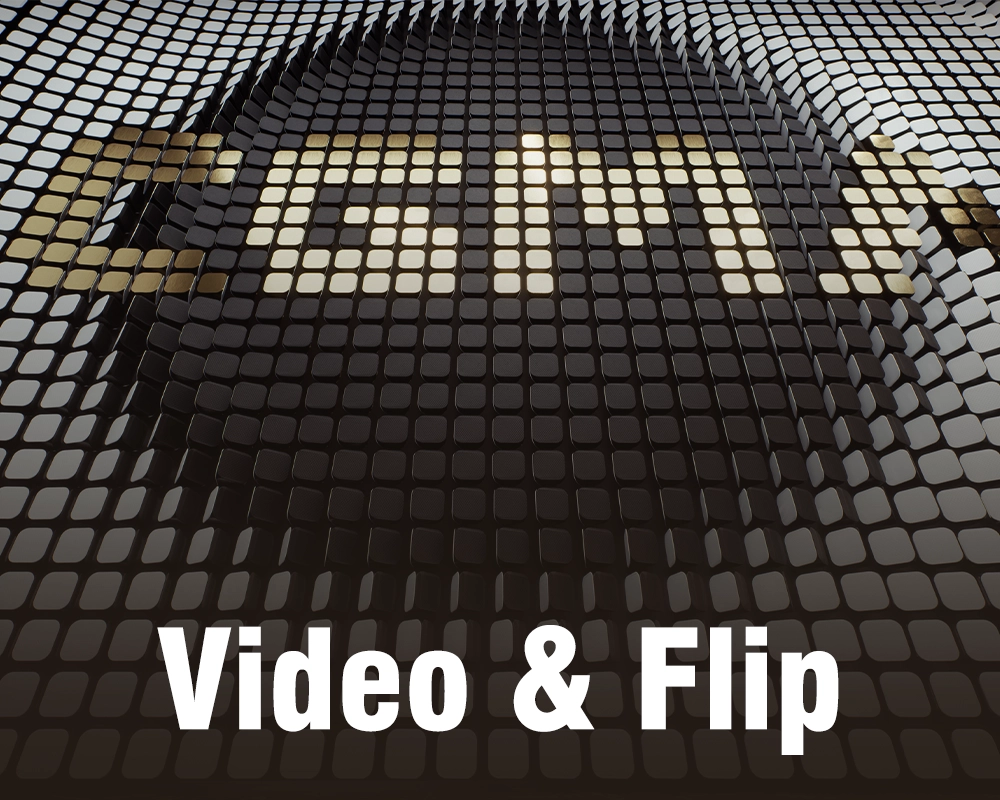

Integrated LED, Digital Content Display

Integrated LED, Digital Content Display

Flip units integrate a P10.42 LED display surface with 14×14 pixel resolution per LED face, capable of playing video, animation, brand logos and dynamic digital content for full multimedia expression.
Pure Black When Off, Enhanced Contrast

Pure Black When Off, Enhanced Contrast

The LED face appears pure black when switched off, creating strong contrast with the other two solid display faces. The installation maintains a unified appearance at night and in low light, combining static elegance with dynamic performance.
Open Ecosystem, Intelligent Interaction

Open Ecosystem, Intelligent Interaction

Native support for DMX512 and Art-Net protocols allows lighting and mechanical motion to be managed via MADRIX. TouchDesigner integration with cameras and LiDAR enables real-time interaction between video content, mechanical flipping and audience behaviour for an immersive interactive experience.

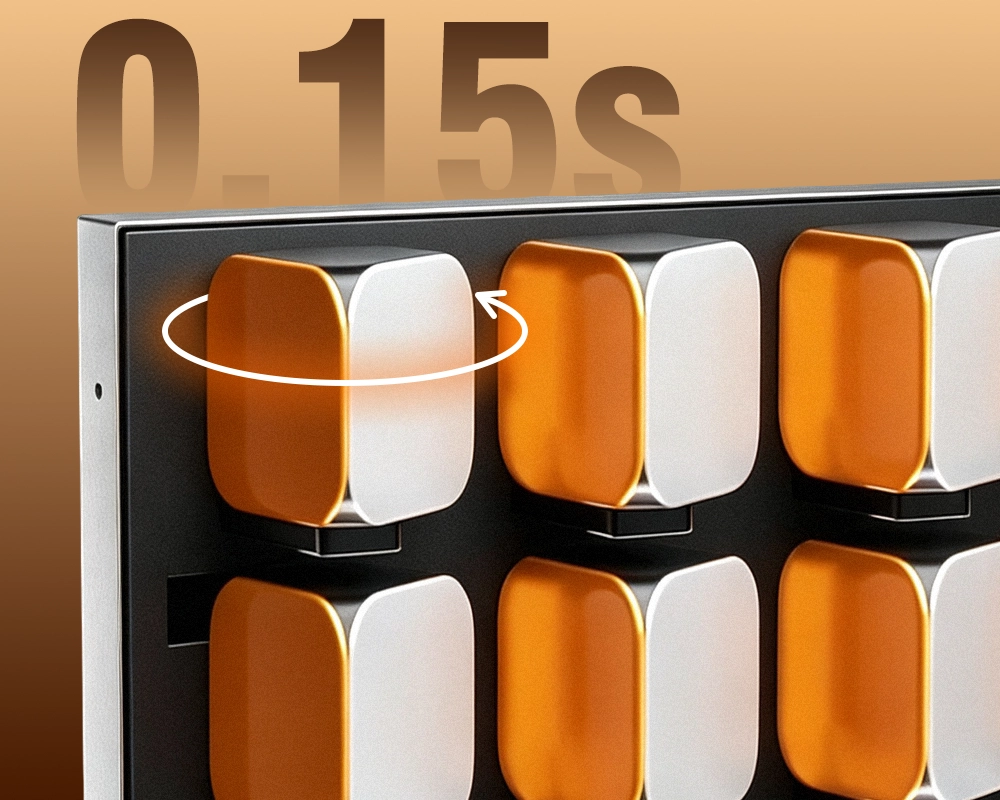

Rapid Face Switching, Instant Transformation

Rapid Face Switching, Instant Transformation

Each mechanical unit carries three display faces, with a face change completed in just 0.15 seconds, seamlessly switching between LED video, solid colour and custom pattern faces to enrich visual rhythm and creative expression.

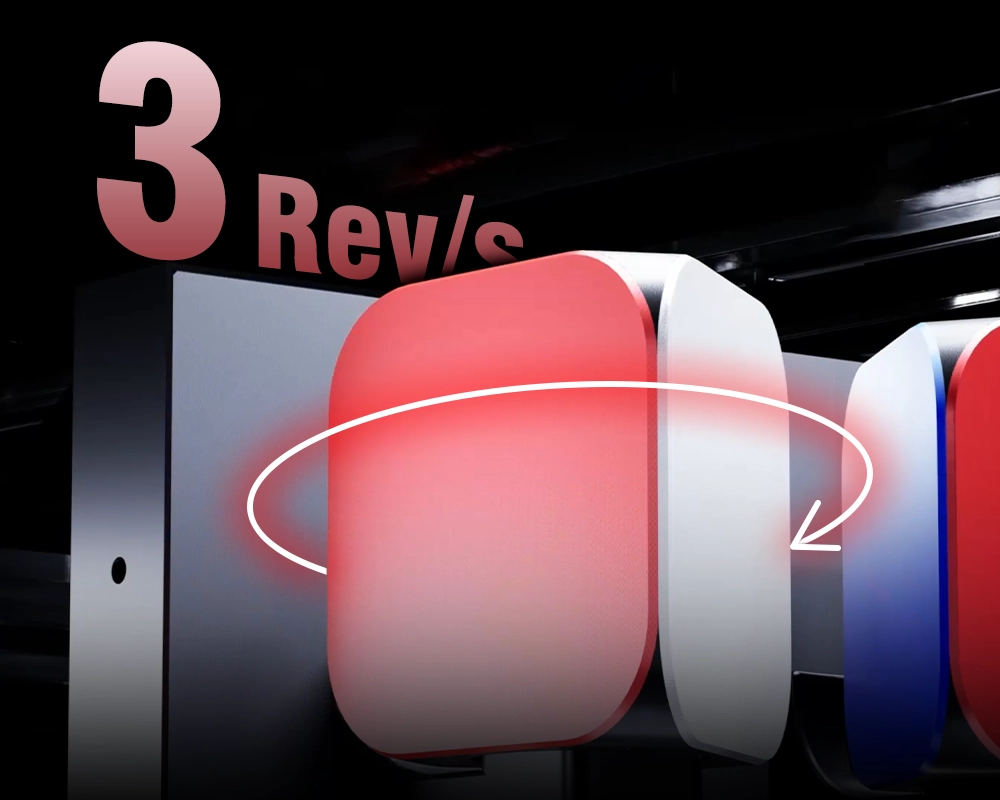

High-Speed Rotation, Synchronised Precision Control

High-Speed Rotation, Synchronised Precision Control

Flip units reach up to 3 Rev/s. Real-time angle correction keeps large matrices highly synchronised even during continuous motion and multi-face switching, preventing positional errors and ensuring smooth, orderly performance.
Standard Cabinet, Easy Assembly

Standard Cabinet, Easy Assembly

A 500×500mm standardised cabinet houses 3×3 flip units, weighs 8kg and draws 100W. The standardised structure simplifies storage and transport, supports rapid assembly and greatly reduces on-site installation work for large projects.
Physical-Digital Fusion, Multi-Dimensional Expression

Physical-Digital Fusion, Multi-Dimensional Expression

LED video imagery, solid colour blocks and mechanical flipping are integrated into one system, freely switching between flat video, solid patterns and three-dimensional wave effects to break conventional display boundaries and expand creative expression.

Specification

Name

SPFM-138P

Color Panel Size (W × H)

138 × 138mm

Flip Unit Size (W × H)

166.7 × 166.7mm

Quick-Installation Cabinet Size

500 × 500mm (3 × 3 units)

Cabinet Thickness

200mm

Front Structure Depth

140mm

Rear Structure Depth

60mm

Cabinet Weight

8kg

Power Consumption per Cabinet

100W

Maximum Rotation Speed

3Rev/s

Surface Switching Time

0.15s

Flip Units per Square Meter

36 units

Weight per Square Meter

32kg/m²

Power Capacity per Square Meter

400W/m²

Anti-Pinch Motor Disable Trigger

200g

LED Pixel Pitch

P10.42

LED Surface Resolution

14 × 14 pixels

LED Gap Treatment

Two LED Positions Reserved for the Gap

Display Configuration

Single-Surface LED Display

Surface Color with LED Off

Pure Black

Maintenance Method

Front and Rear Maintenance

Installation Method

Downward Suspension, Wall-Mounted, Upward-Facing, Custom-Shaped Installation

Outdoor Installation Angle Limit

≤90°

Cooling Method

Open Natural Cooling

Power Supply Below 3kW

220V Single-Phase

Power Supply Above 3kW

380V Three-Phase Five-Wire

Indoor Operating Temperature

0–40°C

Outdoor Operating Temperature

-10–60°C

Indoor Operating Humidity

≤70% RH, Non-Condensing

Outdoor Operating Humidity

≤95% RH
