SPFM-138L
Flip Matrix

SPFM-138L

SPFM-138L pairs three-sided flipping with RGB light. Each m² has 36 units: one RGB face and two custom color, pattern, or material faces, creating spatial effects via motion, color, and light.

Features

Full-Colour RGB, Flowing Light

Full-Colour RGB, Flowing Light

A single face of each flip unit carries full-colour RGB lighting capable of rich colours, gradients and dynamic light effects. Matrix-synchronised control produces light waves and flowing colour for layered spatial atmosphere.
Millisecond Switching, Multi-State Display

Millisecond Switching, Multi-State Display

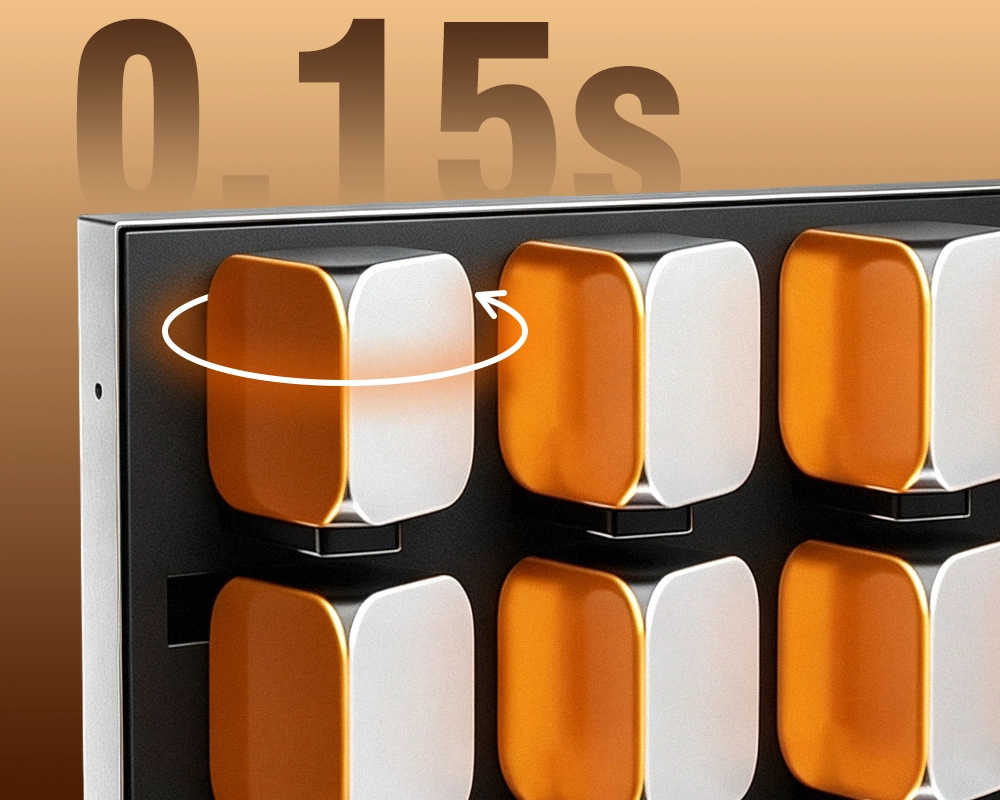

Each mechanical unit has three display faces with a 0.15-second face change. Different combinations enable seamless transitions between solid colours, illuminated surfaces and custom patterns.
Standard Cabinet, Easy Assembly

Standard Cabinet, Easy Assembly

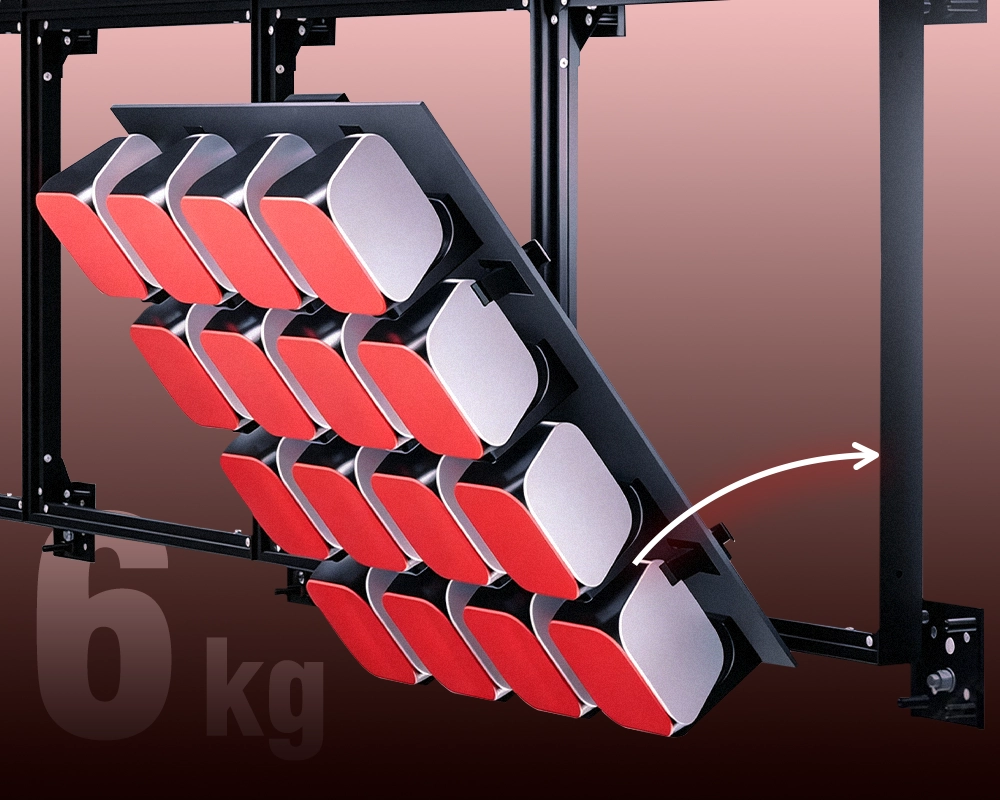

A 500×500mm standard quick-install cabinet houses 3×3 flip units, weighs only 6kg and draws 45W. The standardised structure facilitates transport and rapid assembly, greatly simplifying on-site installation.
Open Ecosystem, Intelligent Interaction

Open Ecosystem, Intelligent Interaction

Support for DMX512 and Art-Net allows MADRIX to create stage lighting effects, while TouchDesigner integration with cameras and LiDAR enables real-time interaction between lighting, mechanical flipping and audience behaviour.

Specification

Item

SPFM-138L

Color Panel Size (W × H)

138 × 138mm

Flip Unit Size (W × H)

166.7 × 166.7mm

Quick-Installation Cabinet Size

500 × 500mm (3 × 3 units)

Cabinet Thickness

200mm

Front Structure Depth

140mm

Rear Structure Depth

60mm

Cabinet Weight

6kg

Power Consumption per Cabinet

45W

Maximum Rotation Speed

3Rev/s

Surface Switching Time

0.15s

Flip Units per Square Meter

36 units

Weight per Square Meter

24kg/m²

Power Capacity per Square Meter

180W/m²

Anti-Pinch Motor Disable Trigger

200g

Lighting Configuration

Single-Surface RGB Full-Color Light

Surface Color with Lighting Off

Milky White

Maintenance Method

Front and Rear Maintenance

Installation Method

Downward Suspension, Wall-Mounted, Upward-Facing, Custom-Shaped Installation

Outdoor Installation Angle Limit

≤90°

Angle Correction

Real-Time Rotation Angle Error Correction

Communication Protocol

DMX512 and Art-Net

Content Creation Software

MADRIX and TouchDesigner

Interactive Device Integration

Camera and LiDAR

Cooling Method

Open Natural Cooling

Indoor Operating Temperature

0–40°C

Outdoor Operating Temperature

-10–60°C

Indoor Operating Humidity

≤70% RH, Non-Condensing

Outdoor Operating Humidity

≤95% RH
