Tiger Series

The Tiger Series LED display delivers outstanding high brightness and high refresh rate, ensuring clear and stable visual effects even in harsh outdoor environments. Its appearance is strikingly designed with the tiger’s distinctive golden‑black stripes and smooth body lines, making it unique and visually impressive.

Features

Lightweight Module, Robust Reliability

Lightweight Module, Robust Reliability

Each module weighs only 0.974 kg, enabling a lightweight body design that significantly reduces installation load. High-grade materials and a solid, robust structure provide excellent protection and resistance to external forces, combining easy installation with long-term stable operation for demanding projects.
Through-Hole Lamps, Outstanding Brightness

Through-Hole Lamps, Outstanding Brightness

DIP346 oval through-hole LED lamps deliver an ultra-high brightness output of up to 8000 cd/m². The lamps offer excellent luminous consistency, pure and even colour, delicate light-to-dark transitions and sharp detail for a striking visual effect. The mature through-hole package provides resistance to corrosion and deformation, ensuring consistently outstanding luminous performance over long-term operation.
Thickened Housing, Reinforced Protection

Thickened Housing, Reinforced Protection

A 33mm thickened housing structure provides a solid, robust enclosure with outstanding resistance to impact, compression and deformation. This strong physical protection effectively slows module wear, extends the service life of the system and ensures reliable operation in demanding outdoor conditions.
High-Definition Imaging, Vivid Colour

High-Definition Imaging, Vivid Colour

Refined module-level detail optimisation greatly improves image contrast, making displayed content crisp and sharp with vivid, saturated colour. Whether running dynamic video or static imagery, the system fully brings out image detail and delivers outstanding visual results.
Customised Viewing Angle, Flexible Adaptation

Customised Viewing Angle, Flexible Adaptation

For diverse applications such as long-distance viewing in venues and multi-directional viewing of large urban displays, dedicated module customisation precisely matches the optimal viewing range. In any environment, viewers enjoy an excellent and comfortable viewing experience from every position.
UV Resistant, Durable and Reliable

UV Resistant, Durable and Reliable

A robust module structure combined with UV-resistant technology maintains stable operation even under intense sunlight exposure. It effectively resists performance degradation caused by light ageing, enhances weather resistance and durability, delivers an extended service life and reduces long-term maintenance costs.

Specification

Series

Tiger Series - 960x960 Die-casting Cabinet, DIP

Pixel Configuration

DIP346

Pixel Pitch (mm)

10

16

20

No. of Modules per Unit Case (WxH)

3 x 6

4 x 4

3 x 6

Unit Case Resolution (WxH)

96×96

60×60

48×48

Unit Case Dimensions (WxHxD, mm)

960×960×160mm

1024×1024×160mm

960×960×160mm

Unit Case Surface Area (m²)

0.92

1.05

0.92

Weight per Square Meter (kg/m²)

48KG

56KG

48KG

Physical Pixel Density (pixels/m²)

289050

250000

160000

Flatness of Unit Case (mm)

±0.2

Unit Case Material

Iron

Service Access

Rear

Max. Brightness

>10000cd/m²

12000cd/m²

>9000cd/m²

Color Temperature

6500

Visual Viewing Angle (Horizontal)

140

Visual Viewing Angle (Vertical)

170

Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy

Contrast Ratio

5000

Processing Depth (bit)

16bit

Power Consumption (W/m², Max.)

320W/m²

400W/m²

320W/m²

Power Supply (V)

100-240V

Frame Rate (Hz)

50/60Hz

Refresh Rate (Hz)

7680Hz

LED Half-Brightness Lifetime

100000 Hours

Operating Temperature (°C)

-20℃~+60℃

Operating Humidity

10%~90% RH

Protection Level

Font IP65,Back IP54

Our Projects

Explore our latest installations and success stories worldwide

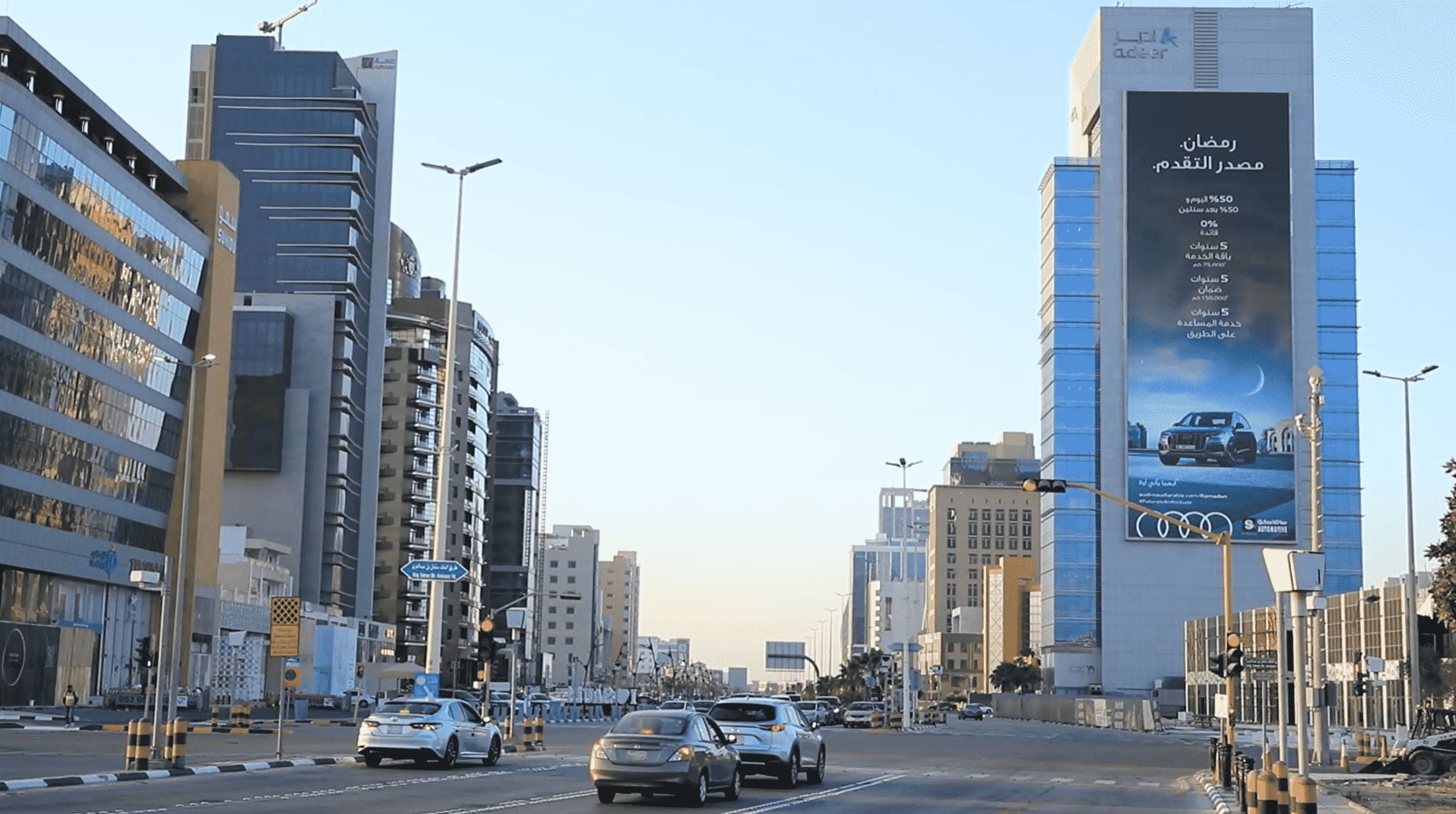

Tiger Series Outdoor DIP LED Display P10 Project - Adeer Tower, Saudi Dammam

Tiger Series Outdoor DIP LED Display P10 Project - Adeer Tower, Saudi Dammam

The Tiger Series Outdoor DIP LED Display P10 project at Adeer Tower in Dammam, Saudi Arabia, emerges as a striking urban landmark, with its approximately 2000-square-meter expanse making a bold statement in the cityscape. Featuring a P10 pixel pitch and DIP technology, the display ensures high brightness and robust weather resistance, delivering vivid, clear content—ranging from corporate branding and promotional campaigns to city-wide announcements—even under the intense Saudi sun and challenging desert conditions. Engineered for durability, the Tiger Series stands up to extreme temperature variations and sandstorms, guaranteeing reliable performance year-round. As a defining feature of Adeer Tower, this large-scale display enhances the building’s visibility, serving as a dynamic communication hub that engages residents, visitors, and businesses across the city, while redefining large-format outdoor visual experiences in the region.

Dammam, Saudi Arabia
Product:
Tiger Series
Pixel Pitch:
P10
Area:
2000 square meters
Application:
Outdoor High-Rise Buildings, Commercial Towers, Urban Landmarks, Business Districts, Large-Scale Advertising Spaces

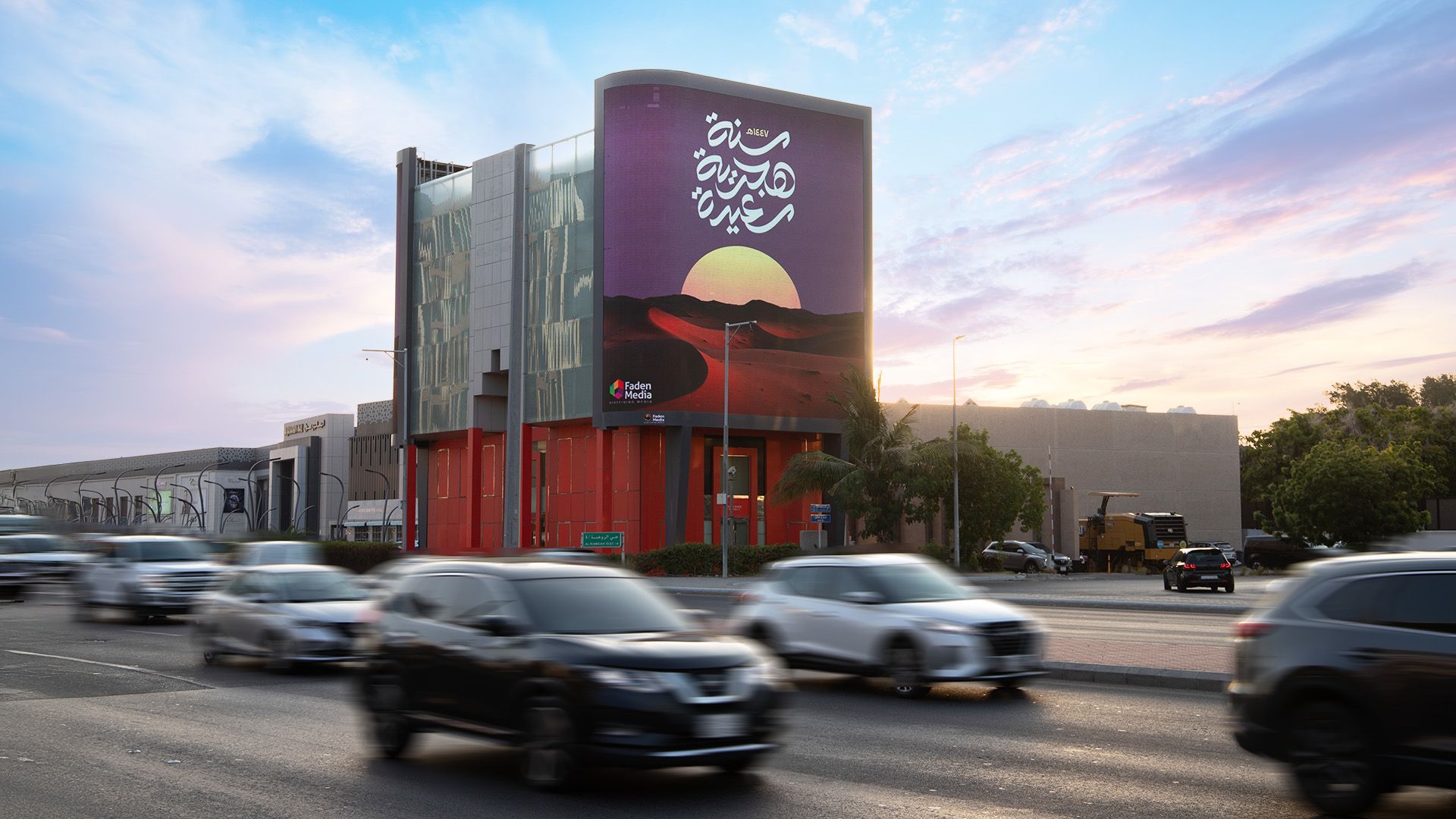

Tiger Series Outdoor DIP LED Display P10 Project - Jeddah, Saudi Arabia

Tiger Series Outdoor DIP LED Display P10 Project - Jeddah, Saudi Arabia

The Tiger Series Outdoor DIP LED Display P10 project in Jeddah, Saudi Arabia, spans approximately 240 square meters and stands out as a striking visual landmark along the city’s main road. With P10 pixel pitch and DIP technology, the display delivers exceptional brightness and clarity, ensuring its content—whether brand advertisements, public service announcements, or event promotions—remains vivid and eye-catching even amid heavy traffic and the bright Saudi sunlight. Engineered to withstand the harsh outdoor conditions of Jeddah, including high temperatures and dust, the Tiger Series maintains reliable performance, making it a constant presence that captures the attention of passing motorists and pedestrians. Positioned on a major thoroughfare, this display leverages its prime location to maximize visibility, serving as a highly effective communication tool that enhances the urban landscape while driving engagement with its dynamic content.

Jeddah, Saudi Arabia
Product:
Tiger Series
Pixel Pitch:
P16
Area:
360 square meters
Application:
Outdoor Main Roads, Urban Arteries, Commercial thoroughfares, Traffic Hubs, High-Visibility Advertising Zones

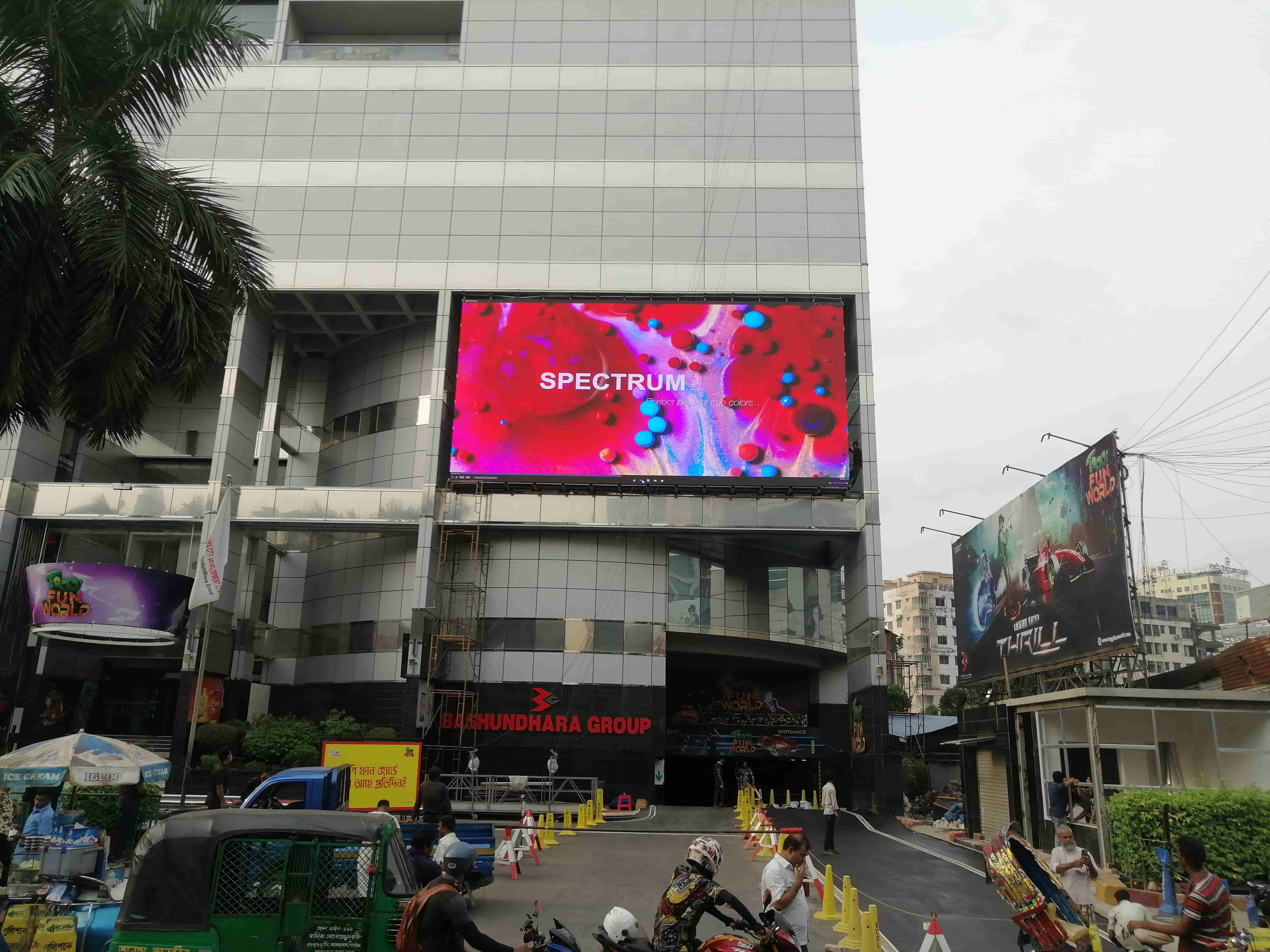

Bashundhara City Shopping Complex Outdoor DOOH LED Display

Bashundhara City Shopping Complex Outdoor DOOH LED Display

The Tiger Series P10.0 outdoor LED display is deployed at Bashundhara City Shopping Complex in Bangladesh, a premier retail destination. Covering 65 square meters, this DOOH solution delivers high-impact visuals with P10.0 pixel pitch, ideal for showcasing brand advertisements, promotional campaigns, and mall events to attract shoppers and passersby. Engineered for outdoor durability, it features IP65 weather resistance, high brightness (≥6000nits) to ensure visibility in bright sunlight, and dustproof design to adapt to local environmental conditions. The Tiger Series display supports 24/7 stable operation and remote content management, allowing mall operators to quickly update ads and information, enhancing the shopping complex’s marketing efficiency and visual appeal as a key urban retail landmark.

Dhaka, Bangladesh
Product:
Tiger Series
Pixel Pitch:
P10
Area:
65 square meters
Application:
Outdoor DOOH, Shopping Malls, Commercial Complexes, Urban Retail Areas

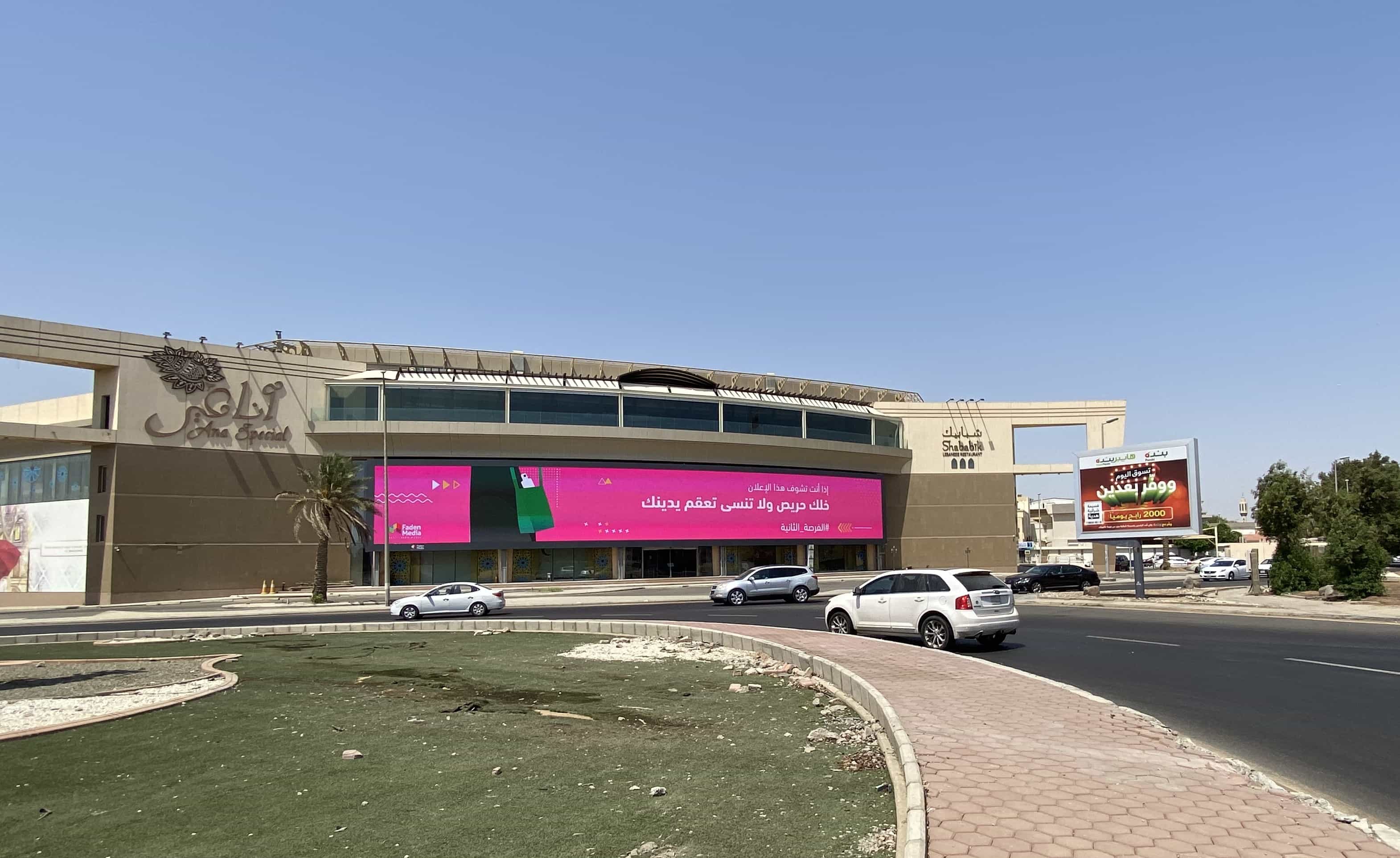

Tiger Series Outdoor DIP LED Display P10 Project - Sahara Oasis Mall, Saudi Arabia

Tiger Series Outdoor DIP LED Display P10 Project - Sahara Oasis Mall, Saudi Arabia

The Tiger Series Outdoor DIP LED Display P10 project at Sahara Oasis Mall in Saudi Arabia is a dynamic visual solution designed to elevate the mall’s commercial appeal and engage visitors. With a P10 pixel pitch and DIP technology, the display delivers high brightness and clear imagery, ensuring vibrant content—such as brand advertisements, promotional events, store launches, and seasonal offers—remains striking even under intense sunlight. Built to withstand Saudi Arabia’s harsh climate, including extreme heat and dust, the Tiger Series guarantees long-term durability and consistent performance. Covering approximately 380 square meters, this display serves as a prominent focal point for the mall, attracting foot traffic, enhancing brand visibility, and creating an immersive shopping atmosphere that connects with shoppers and strengthens the mall’s position as a key retail destination.

Saudi
Product:
Tiger Series
Pixel Pitch:
P10
Area:
380 square meters
Application:
Outdoor Shopping Malls, Commercial Plazas, Retail Hubs, Leisure Complexes, Public Gathering Spaces

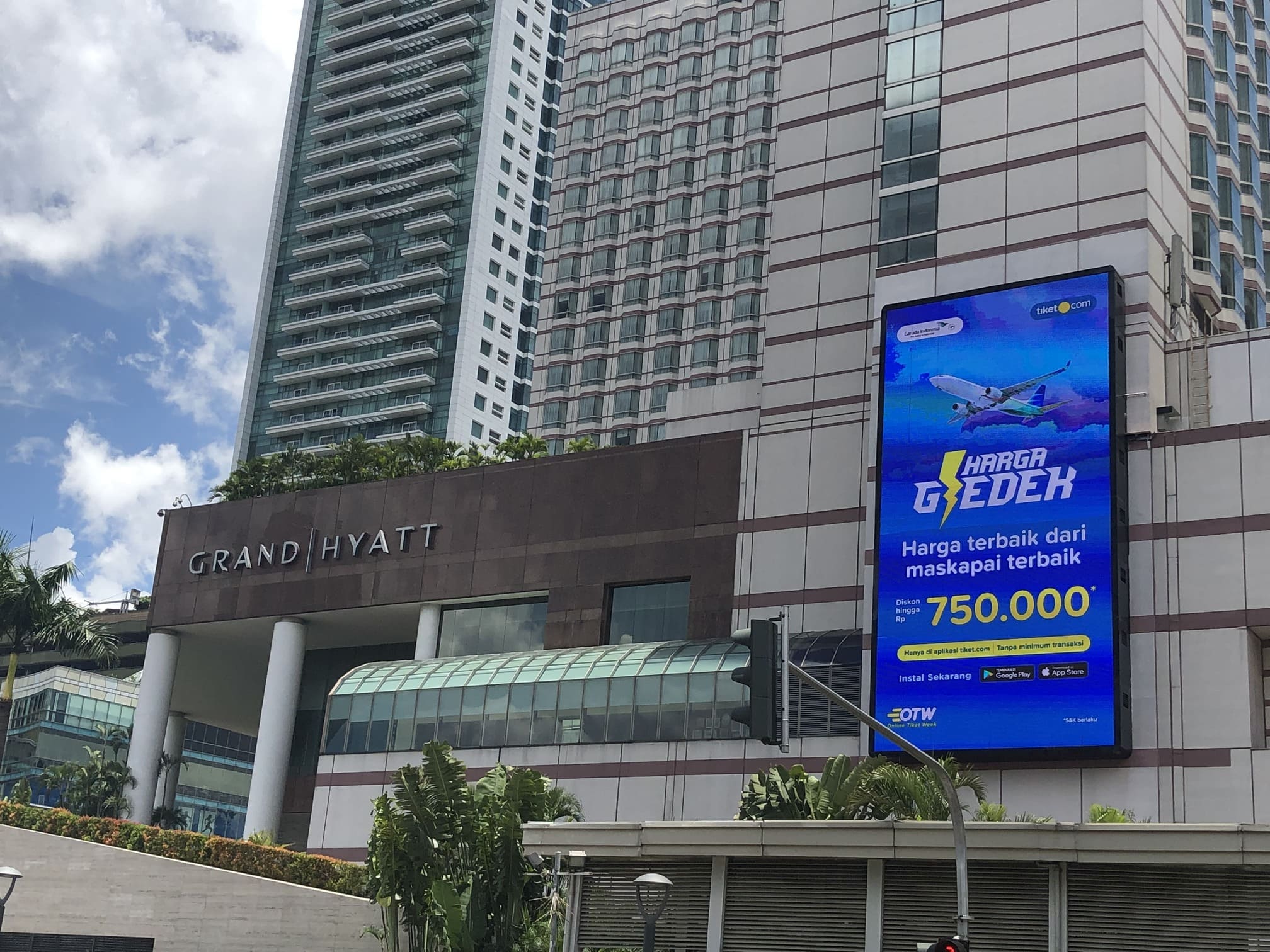

Tiger Series Outdoor DIP LED Display P10 Project - Plaza Indonesia

Tiger Series Outdoor DIP LED Display P10 Project - Plaza Indonesia

The Tiger Series Outdoor DIP LED Display P10 project at Plaza Indonesia is a robust visual solution designed to thrive in the bustling urban environment of Jakarta. With a P10 pixel pitch and DIP technology, the display delivers high brightness and durability, ensuring clear, vivid content—from brand advertisements and event promotions to live feeds—even in direct sunlight or heavy foot traffic. Built to withstand Indonesia’s tropical climate, including high humidity and occasional rain, the Tiger Series guarantees reliable performance year-round. Covering around 200 square meters, this large-scale display serves as a key marketing and communication hub for Plaza Indonesia, attracting visitors with eye-catching visuals that enhance the plaza’s commercial appeal and keep the community informed and engaged.

Jakarta
Product:
Tiger Series
Pixel Pitch:
P10
Area:
200 square meters
Application:
Outdoor Plazas, Shopping Malls, Commercial Complexes, Urban Landmarks, Public Gathering Spaces
