Series | Leopard SeriesOutdoor LED Display 320×160mm | ||||||
Pixel Configuration | SMD1415 | SMD1921 | SMD2727 | ||||
Pixel Pitch (mm) | 2.5 | 3.33 | 4 | 5 | 6.66 | 8 | 10 |
No. of Modules per Unit Case (WxH) | 3×6 | ||||||
Module Resolution (WxH) | 128×64 | 96×48 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 |
Module Dimensions (WxHxD, mm) | 320×160 | ||||||
Module Surface Area (m²) | 0.0512 | ||||||
Weight per Square Meter (kg/m²) | 30 | ||||||
Physical Pixel Density (pixels/m²) | 160000 | 90180 | 62500 | 40000 | 22545 | 15625 | 10000 |
Flatness of Unit Case (mm) | ±0.2 | ||||||
Unit Case Material | Die casting aluminum | ||||||
Service Access | Rear | ||||||
Max. Brightness | ≥5500 | ||||||
Color Temperature | 6500 | ||||||
Visual Viewing Angle (Horizontal) | 140° | ||||||
Visual Viewing Angle (Vertical) | 140° | ||||||
Brightness Uniformity | 95% | ||||||
Color Uniformity | ±0.015Cx,Cy | ||||||
Contrast Ratio | 5000:1 | ||||||
Processing Depth (bit) | 16bit | ||||||
Power Consumption (W/m², Max.) | 580W/m² | ||||||
Power Supply (V) | AC 200~240V | ||||||
Frame Rate (Hz) | 50/60Hz | ||||||
Refresh Rate (Hz) | 7680Hz | ||||||
LED Half-Brightness Lifetime | 100000 Hours | ||||||
Operating Temperature (°C) | -20℃~+50℃ | ||||||
Operating Humidity | 10%~95% | ||||||
Protection Level | Font IP65,Back IP54 | ||||||
Explore our latest installations and success stories worldwide
The Leopard Series Regular Outdoor LED Display Wall P2.5 project at Dubai Mall, Downtown Dubai, UAE, brings exceptional visual precision to one of the world’s most iconic shopping destinations. With a P2.5 pixel pitch, the display delivers ultra-clear, high-definition imagery that stands out even in the vibrant urban environment, making it perfect for showcasing luxury brand campaigns, event promotions, and immersive visual experiences. Engineered to thrive in Dubai’s outdoor conditions—including intense sunlight and high temperatures—the Leopard Series combines robust durability with energy efficiency, ensuring consistent performance year-round. Covering around 97 square meters, this display serves as a striking focal point, enhancing Dubai Mall’s allure by engaging visitors with vivid, detailed content that elevates the overall shopping and leisure experience in the heart of Downtown Dubai.
Dubai Mall

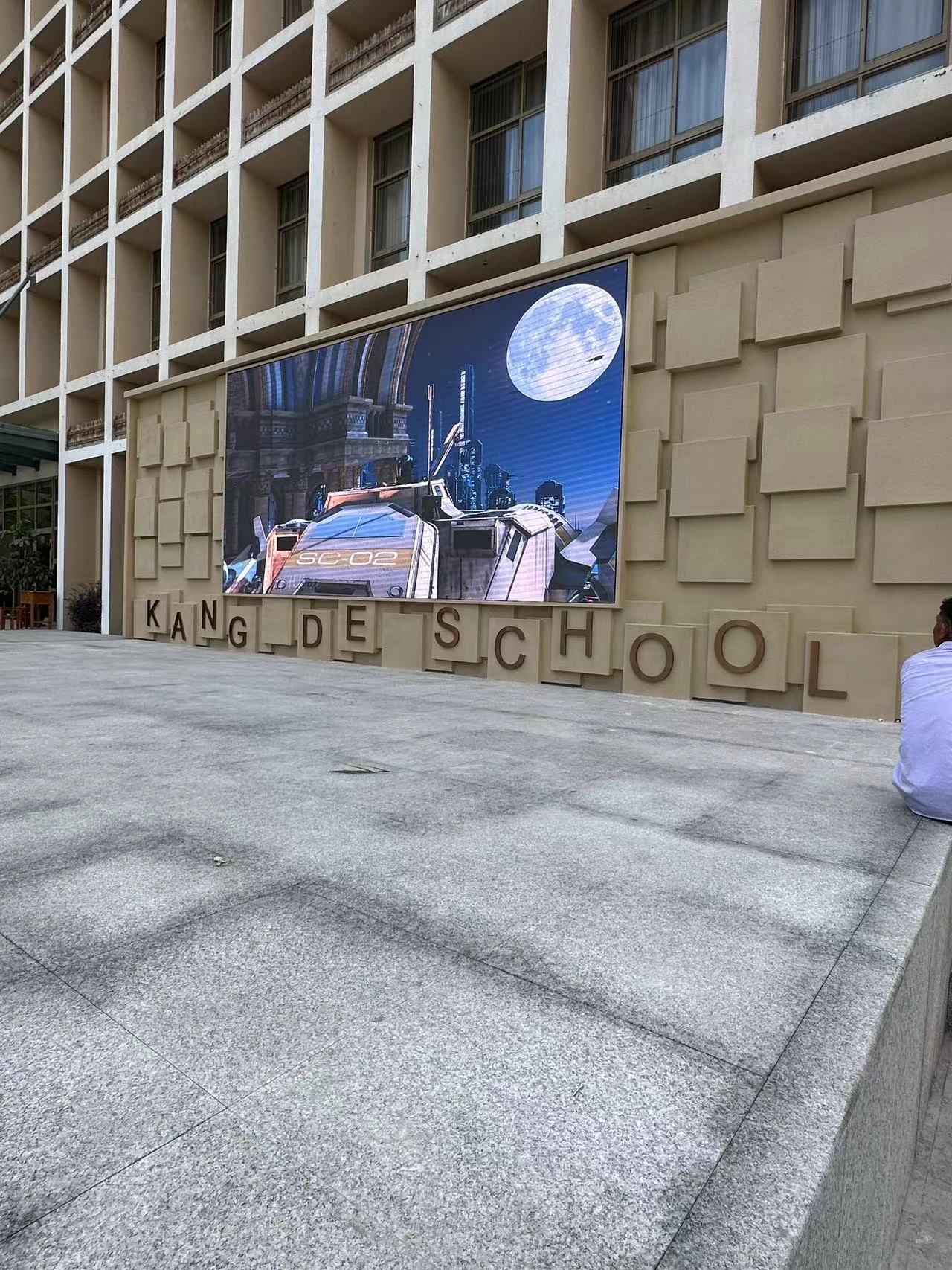

The Leopard Series Regular Outdoor LED Display Wall P4 project at a school in Zhejiang, China, is a durable and functional visual solution designed to enhance campus communication. With a P4 pixel pitch, the display delivers clear, bright content that remains visible in various weather conditions, making it ideal for showcasing school notices, event highlights, academic achievements, and educational propaganda. Built to withstand Zhejiang’s humid climate and seasonal changes, the Leopard Series ensures long-term reliability and stable performance. Covering around 20 square meters, this display serves as a key information hub, fostering better interaction between the school and its community—students, teachers, and parents—while integrating modern technology into the campus environment to support educational activities and campus management.
China

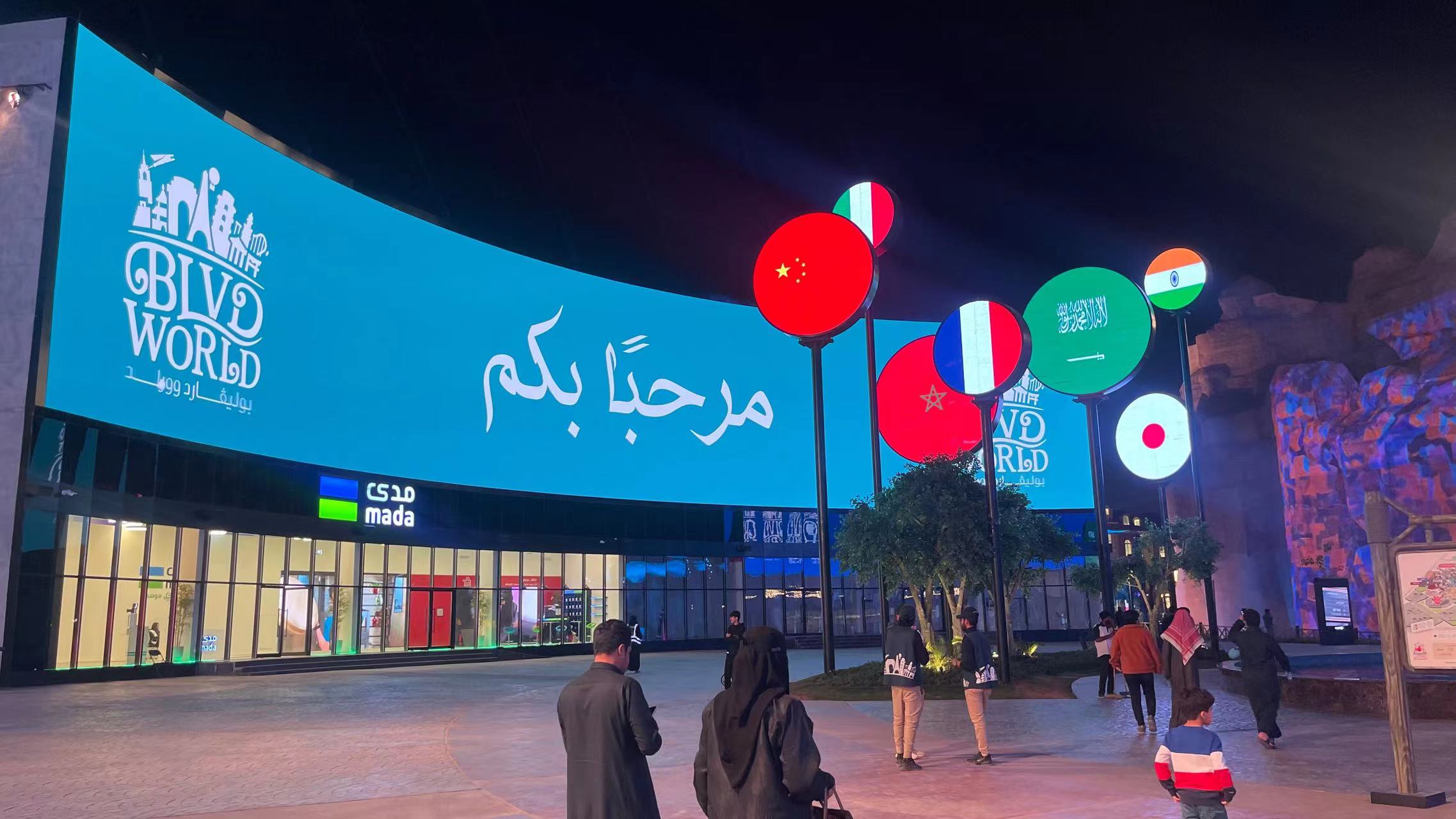

The Leopard Series Regular Outdoor LED Display Wall P4 project at BLVD WORLD in Riyadh, Saudi Arabia, is engineered to deliver high-impact visual performance in demanding outdoor environments. With a P4 pixel pitch, the display wall offers excellent clarity and brightness, ensuring vibrant, visible content even under direct sunlight—perfect for showcasing event promotions, brand campaigns, live feeds, and immersive visual experiences. Built to withstand harsh weather conditions, the Leopard Series combines durability with energy efficiency, making it ideal for the dynamic atmosphere of BLVD WORLD. Covering around 200 square meters, this large-scale display serves as a striking landmark, attracting crowds and enhancing the overall visitor experience with its vivid, high-resolution imagery that stands out in the bustling urban landscape.
Riyadh
